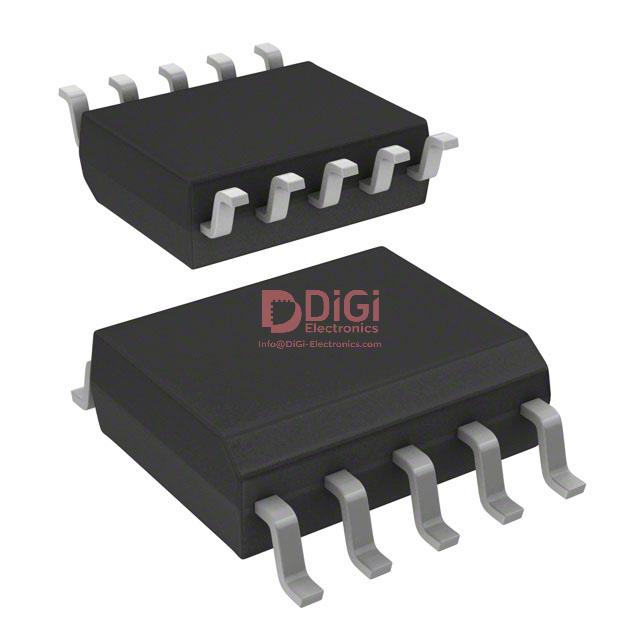

VIPER013LSTR
STMicroelectronics
IC OFFLINE SWITCH MULT TOP 10SSO
1446 Pcs New Original In Stock
Converter Offline Buck, Buck-Boost, Flyback Topology 60kHz 10-SSOP
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (193 Ratings)
VIPER013LSTR
Product Overview
8180538
DiGi Electronics Part Number
VIPER013LSTR-DGManufacturer
STMicroelectronics
VIPER013LSTR
Description
IC OFFLINE SWITCH MULT TOP 10SSOInventory
1446 Pcs New Original In Stock
Converter Offline Buck, Buck-Boost, Flyback Topology 60kHz 10-SSOP
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
VIPER013LSTR Technical Specifications
Category
Power Management (PMIC), AC DC Converters, Offline Switches
Packaging
Cut Tape (CT) & Digi-Reel®
Series
-
Product Status
Active
Output Isolation
Either
Internal Switch(s)
Yes
Voltage - Breakdown
800V
Topology
Buck, Buck-Boost, Flyback
Voltage - Start Up
8 V
Voltage - Supply (Vcc/Vdd)
4.5V ~ 30V
Duty Cycle
80%
Frequency - Switching
60kHz
Power (Watts)
7 W
Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features
-
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
10-SOP (0.154", 3.90mm Width)
Supplier Device Package
10-SSOP
Mounting Type
Surface Mount
Base Product Number
VIPER013
Datasheet & Documents
HTML Datasheet
VIPER013LSTR-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
497-16575-1-DG
497-16575-1
497-16575-2-DG
497-VIPER013LSTR
497-VIPER013LSTRCT
497-16575-6-DG
497-16575-2
497-VIPER013LSTRDKR
497-16575-6
Standard Package
2,500
