ZX62D-B-5P8 USB Micro B Receptacle Connector - Equivalent & Substitute Parts

Part Overview

The ZX62D-B-5P8 is a USB 2.0 micro B receptacle connector manufactured by Hirose Electric Co Ltd, designed for surface mount, right-angle applications with 5-position contacts. This connector is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and design updates. The part features shielded construction, gold-plated contacts, and is rated for 1.8A at 30VAC with 10,000 mating cycles.

Substiute Parts

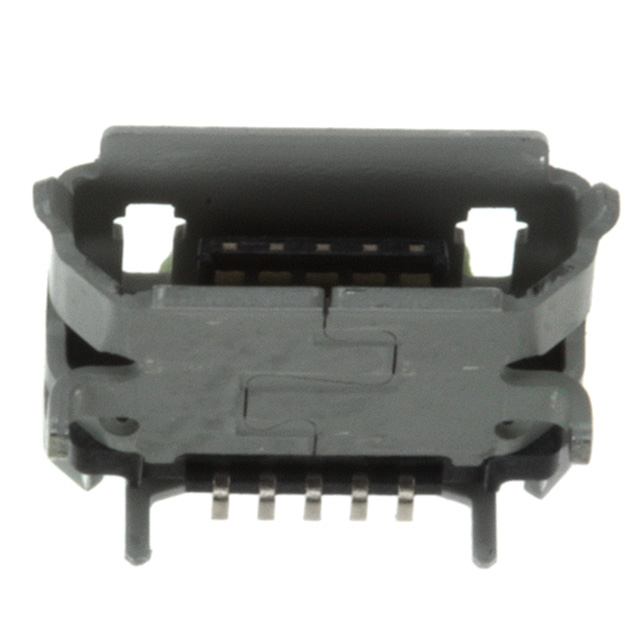

ZX62D-B-5P8

Hirose Electric Co LtdIn Stock: 784ZX62D-B-5P8 Datasheet

Current PartRFQ

ZX62D-B-5P8(30)

Hirose Electric Co LtdIn Stock: 2087ZX62D-B-5P8(30) Datasheet

Parametric EquivalentRFQ

ZX62D-B-5PA8(30)

Hirose Electric Co LtdIn Stock: 436734ZX62D-B-5PA8(30) Datasheet

Parametric EquivalentRFQ

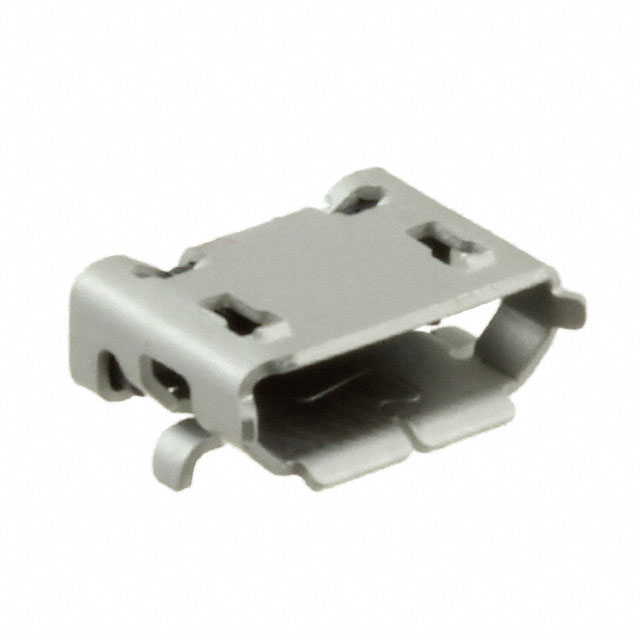

ZX62D1-B-5PA(30)

Hirose Electric Co LtdIn Stock: 3318ZX62D1-B-5PA(30) Datasheet

Parametric EquivalentRFQ

10118194-0001LF

Amphenol ICC (FCI)In Stock: 2414510118194-0001LF Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ZX62D-B-5P8 is determined by strict equivalence across the following critical parameters:

• Connector Type: USB - micro B (5-position receptacle)
• Mounting Configuration: Surface mount, right-angle, bottom mount, horizontal orientation
• Electrical Specifications: USB 2.0 compliance, 1.8A current rating, 30VAC minimum voltage rating
• Contact Properties: Gold finish, solder termination
• Environmental Ratings: Operating temperature range -30°C to 85°C, UL94 V-0 flammability
• Mechanical Durability: 10,000 mating cycles minimum

Substitute parts are grouped into two categories:

Hirose Electric Co Ltd Parametric Equivalents: ZX62D-B-5P8(30), ZX62D-B-5PA8(30), and ZX62D1-B-5PA(30) maintain identical electrical and mechanical specifications with variations in packaging format and product status.

Manufacturer Recommended Alternative: 10118194-0001LF (Amphenol ICC/FCI) provides functional equivalence with minor parameter variations in voltage rating and operating temperature ceiling.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Hirose Electric Co Ltd):

ZX62D-B-5PA8(30) is the recommended primary substitute. This part maintains full parametric equivalence with the ZX62D-B-5P8 and carries Active product status with the highest inventory availability (436,631 units). It is ROHS3 compliant and available in Cut Tape and Digi-Reel packaging formats, supporting high-volume production requirements.

ZX62D1-B-5PA(30) serves as an alternative primary substitute with identical electrical and mechanical specifications, Active product status, and ROHS3 compliance. This part is supplied in Tape & Reel format with 3,240 units in stock.

ZX62D-B-5P8(30) is available as a transitional option with Last Time Buy status, suitable for designs requiring minimal component changes during the obsolescence transition period.

Secondary Substitute (Cross-Manufacturer):

10118194-0001LF (Amphenol ICC/FCI) provides functional equivalence with two parameter deviations: elevated voltage rating (100VAC versus 30VAC) and reduced maximum operating temperature (80°C versus 85°C). This part is RoHS compliant and REACH affected. Selection of this alternative requires design validation to confirm that the higher voltage rating does not introduce compatibility issues and that the 5°C temperature reduction remains within application requirements.

Frequently Asked Questions (FAQ)

Q: Can ZX62D-B-5PA8(30) be used as a direct replacement for ZX62D-B-5P8?

A: Yes. ZX62D-B-5PA8(30) is a parametric equivalent with identical electrical specifications (USB 2.0, 1.8A, 30VAC), mechanical configuration (5-position micro B receptacle, surface mount right-angle), and environmental ratings (UL94 V-0, -30°C to 85°C). The primary difference is packaging format and product status (Active versus Obsolete).

Q: What is the difference between ZX62D-B-5PA8(30) and ZX62D1-B-5PA(30)?

A: Both parts are parametric equivalents with identical electrical and mechanical specifications. The primary differences are packaging format (ZX62D-B-5PA8(30) is supplied in Cut Tape and Digi-Reel; ZX62D1-B-5PA(30) is supplied in Tape & Reel) and inventory levels. Selection depends on production volume and assembly equipment compatibility.

Q: Is 10118194-0001LF compatible with designs using ZX62D-B-5P8?

A: 10118194-0001LF maintains functional equivalence for USB 2.0 micro B receptacle applications with identical contact count, current rating, mating cycles, and shielding. However, it differs in voltage rating (100VAC versus 30VAC) and maximum operating temperature (80°C versus 85°C). Design validation is required to confirm these parameter variations do not conflict with application requirements.

Q: Why is the ZX62D-B-5P8 marked as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. Active alternatives (ZX62D-B-5PA8(30) and ZX62D1-B-5PA(30)) provide identical functionality and are recommended for new designs and ongoing production.

Q: What packaging options are available for substitute parts?

A: ZX62D-B-5PA8(30) is available in Cut Tape (CT) and Digi-Reel formats. ZX62D1-B-5PA(30) is supplied in Tape & Reel (TR) format. ZX62D-B-5P8(30) is available in Cut Tape format. Selection should align with assembly equipment specifications and production volume requirements.

Q: Are all substitute parts RoHS compliant?

A: Yes. ZX62D-B-5PA8(30) and ZX62D1-B-5PA(30) are ROHS3 compliant. 10118194-0001LF is RoHS compliant. All parts meet flammability requirements (UL94 V-0) and have unlimited moisture sensitivity levels (MSL 1).
