ZX62-B-5PA USB 2.0 Micro B Receptacle Connector Equivalent & Substitute Parts

Part Overview

The ZX62-B-5PA is a USB 2.0 micro B receptacle connector manufactured by Hirose Electric Co Ltd, designed for surface mount, right-angle applications with 5 contacts and solder termination. This connector is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The part features shielded construction with gold-plated contacts, rated for 1A per contact at 30VAC, and supports 10,000 mating cycles. Substitute parts are available from active product lines that maintain electrical and mechanical compatibility within specified parameter tolerances.

Substiute Parts

ZX62-B-5PA

Hirose Electric Co LtdIn Stock: 2292ZX62-B-5PA Datasheet

Current PartRFQ

ZX62-B-5PA(33)

Hirose Electric Co LtdIn Stock: 2161ZX62-B-5PA(33) Datasheet

Parametric EquivalentRFQ

10118192-0001LF

Amphenol ICC (FCI)In Stock: 8049410118192-0001LF Datasheet

MFR RecommendedRFQ

10118193-0001LF

Amphenol ICC (FCI)In Stock: 690310118193-0001LF Datasheet

MFR RecommendedRFQ

10118194-0001LF

Amphenol ICC (FCI)In Stock: 2414510118194-0001LF Datasheet

MFR RecommendedRFQ

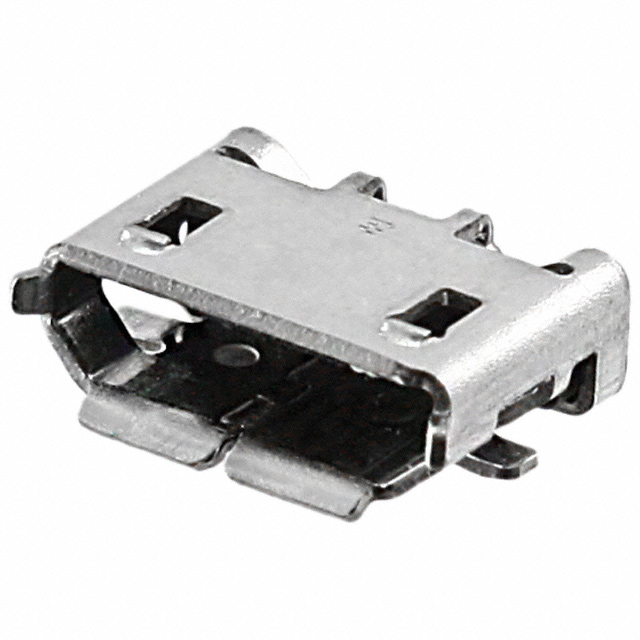

1981568-1

TE Connectivity AMP ConnectorsIn Stock: 2267931981568-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ZX62-B-5PA are grouped based on strict electrical and mechanical parameter compatibility. The primary substitution criteria are:

Core Compatibility Parameters:

• Connector Type: USB - micro B (all substitutes)
• Number of Contacts: 5 (all substitutes)
• Gender: Receptacle (all substitutes)
• Specifications: USB 2.0 (all substitutes)
• Mounting Type: Surface Mount, Right Angle (all substitutes)
• Termination: Solder (all substitutes)
• Mating Cycles: 10,000 (all substitutes)
• Contact Finish: Gold (all substitutes)
• Material Flammability Rating: UL94 V-0 (all substitutes)
• Moisture Sensitivity Level: 1 (Unlimited) (all substitutes)

Allowable Parameter Variations:

• Operating Temperature: Substitutes rated -30°C ~ 80°C are acceptable for applications not exceeding 80°C
• Current Rating: Substitutes rated 1.8A per contact exceed minimum 1A requirement
• Voltage - Rated: Substitutes rated 100VAC exceed minimum 30VAC requirement
• Shielding: Unshielded variants acceptable where EMI protection is not required
• Mounting Feature: Variations in flange design and through-hole options permitted based on PCB layout requirements
• Packaging: Tape & Reel (TR) and Cut Tape (CT) variants are functionally equivalent

Parameter Comparison

Engineering Selection Recommendations

ZX62-B-5PA(33) is the primary parametric equivalent from Hirose Electric Co Ltd. This part maintains identical electrical and mechanical specifications to the main part while offering active product status and ROHS3 compliance. Packaging differs only in format (Cut Tape versus Tape & Reel), which does not affect functional compatibility. This substitute is recommended for direct replacement in existing designs.

10118192-0001LF, 10118193-0001LF, and 10118194-0001LF are manufacturer-recommended alternatives from Amphenol ICC (FCI). These parts exceed the electrical ratings of the main part (1.8A per contact, 100VAC) and maintain shielded construction. Operating temperature is limited to -30°C ~ 80°C, which is acceptable for applications not requiring the full 85°C upper limit. 10118193-0001LF and 10118194-0001LF include through-hole mounting options in addition to surface mount, providing design flexibility. All three parts are RoHS compliant and offer significantly higher inventory availability.

1981568-1 from TE Connectivity AMP Connectors is functionally compatible with the main part and maintains the full -30°C ~ 85°C operating temperature range. This part is unshielded, which is acceptable only for applications where electromagnetic interference protection is not required. The part offers the highest inventory availability and supports multiple current ratings (0.5A, 1A, 1.8A). ROHS3 compliance is confirmed.

Selection between substitute parts should be based on:

• Temperature requirements: Use ZX62-B-5PA(33), 1981568-1 for full -30°C ~ 85°C range; Amphenol parts for -30°C ~ 80°C applications
• EMI requirements: Use shielded variants (all except 1981568-1) where electromagnetic shielding is required
• Mounting flexibility: Use 10118193-0001LF or 10118194-0001LF for designs requiring through-hole options
• Supply chain: Amphenol and TE Connectivity parts offer substantially higher inventory levels

Frequently Asked Questions (FAQ)

Q: Can ZX62-B-5PA(33) be used as a direct replacement for ZX62-B-5PA?

A: Yes. ZX62-B-5PA(33) is a parametric equivalent with identical electrical and mechanical specifications. The only difference is packaging format (Cut Tape versus Tape & Reel), which does not affect functional compatibility or performance.

Q: What is the difference between the Amphenol ICC (FCI) parts 10118192-0001LF, 10118193-0001LF, and 10118194-0001LF?

A: All three parts share identical electrical specifications. The primary differences are mounting features: 10118192-0001LF uses flange mounting, while 10118193-0001LF and 10118194-0001LF include through-hole options in addition to surface mount. Selection depends on PCB layout requirements.

Q: Can 1981568-1 be used in applications requiring shielded connectors?

A: No. 1981568-1 is unshielded and does not provide electromagnetic interference protection. Use shielded alternatives (ZX62-B-5PA(33), Amphenol, or TE Connectivity shielded variants) for applications requiring EMI shielding.

Q: Are the Amphenol ICC (FCI) parts suitable for applications operating above 80°C?

A: No. Amphenol parts are rated for -30°C ~ 80°C maximum. For applications requiring operation up to 85°C, use ZX62-B-5PA(33) or 1981568-1.

Q: What is the significance of the current rating differences between parts?

A: The main part is rated 1A per contact. Substitute parts rated 1.8A per contact exceed this requirement and are acceptable for applications requiring up to 1.8A. The 1981568-1 supports multiple current ratings (0.5A, 1A, 1.8A) and can be selected based on application requirements.

Q: Do all substitute parts meet RoHS compliance requirements?

A: Yes. All substitute parts are RoHS compliant (either RoHS or ROHS3). The main part's RoHS status was not specified in the original documentation.

Q: What packaging options are available for these connectors?

A: ZX62-B-5PA is supplied in Tape & Reel (TR). Substitutes are available in Cut Tape (CT) and Digi-Reel® formats. These packaging variations do not affect electrical or mechanical performance and are interchangeable for component procurement purposes.

Q: Can these connectors be used interchangeably in high-speed USB applications?

A: All parts meet USB 2.0 specifications with identical contact configurations and mating cycle ratings (10,000 cycles). Electrical compatibility is confirmed across all substitutes for USB 2.0 applications.
