ZPD11 Equivalent & Substitute Parts

Part Overview

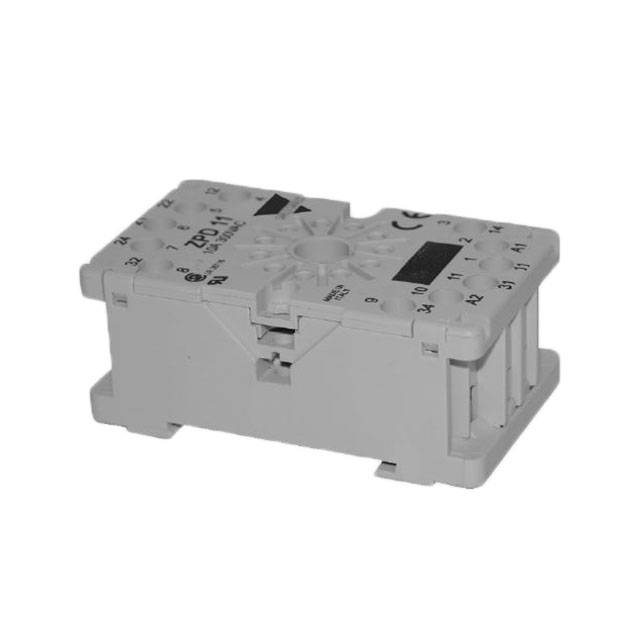

The ZPD11 is an 11-position relay socket designed for DIN rail mounting with screw terminal connections, manufactured by Carlo Gavazzi Inc. as part of the RCP series. This component is classified as obsolete, making identification of compatible substitute parts essential for system maintenance and component procurement. The ZPD11 serves as an interface socket for RCP relay modules, providing standardized electrical and mechanical connectivity on DIN rail installations.

Substiute Parts

ZPD11

Carlo Gavazzi Inc.In Stock: 962ZPD11 Datasheet

Current PartRFQ

ZPD11XA

Carlo Gavazzi Inc.In Stock: 939ZPD11XA Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ZPD11 is determined by the following critical parameters that must remain constant:

• Number of Positions: 11 positions (electrical interface requirement)
• Mounting Type: DIN Rail (mechanical installation requirement)
• Termination Style: Screw Terminal (connection interface requirement)
• Series Compatibility: RCP series (relay module compatibility)
• For Use With/Related Products: RCP Relays (functional compatibility)

The ZPD11XA qualifies as a direct substitute based on matching all critical parameters. The primary distinction is product status: ZPD11XA is active production, whereas ZPD11 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The ZPD11XA is the direct substitute for ZPD11. Both components share identical electrical and mechanical specifications, including 11-position configuration, DIN rail mounting, and screw terminal termination. The ZPD11XA maintains full compliance with the same export control classification (EAR99) and tariff code (8536.69.8000).

Selection of ZPD11XA is supported by its active product status, ensuring continued availability and supply chain reliability compared to the obsolete ZPD11. Both components are manufactured by Carlo Gavazzi Inc. and are designed for use with RCP relay modules.

Frequently Asked Questions (FAQ)

Q: Can ZPD11XA be used as a direct replacement for ZPD11?

A: Yes. ZPD11XA is a direct substitute. Both components have identical electrical and mechanical specifications: 11 positions, DIN rail mounting, screw terminal termination, and RCP series compatibility.

Q: What is the primary reason to transition from ZPD11 to ZPD11XA?

A: ZPD11 is classified as obsolete, while ZPD11XA is in active production. This ensures long-term component availability and supply chain continuity.

Q: Are there any differences in packaging between ZPD11 and ZPD11XA?

A: ZPD11XA is supplied in box packaging. Packaging differences do not affect electrical or mechanical compatibility.

Q: Do both parts comply with the same export and tariff classifications?

A: Yes. Both ZPD11 and ZPD11XA share identical ECCN (EAR99) and HTSUS code (8536.69.8000) classifications.

Q: What relay modules are compatible with these sockets?

A: Both ZPD11 and ZPD11XA are designed for use with RCP series relays.
