ZHR-2-M Equivalent & Substitute Parts

Part Overview

The ZHR-2-M is a 2-position rectangular connector receptacle housing manufactured by JST Sales America Inc. as part of the ZH series. This component is a passive housing element designed for crimp-style female socket contacts at 1.50mm pitch, suitable for free-hanging in-line applications. The part is currently active in production with full RoHS compliance and MSL Level 1 rating, indicating no moisture sensitivity restrictions during storage and handling.

Substitute parts are identified when equivalent rectangular connector housings share identical functional parameters: connector type, contact type, number of positions, pitch specification, mounting configuration, and termination method. These alternatives enable procurement flexibility, inventory optimization, and supply chain continuity.

Substiute Parts

ZHR-2-M

JST Sales America Inc.In Stock: 1172ZHR-2-M Datasheet

Current PartRFQ

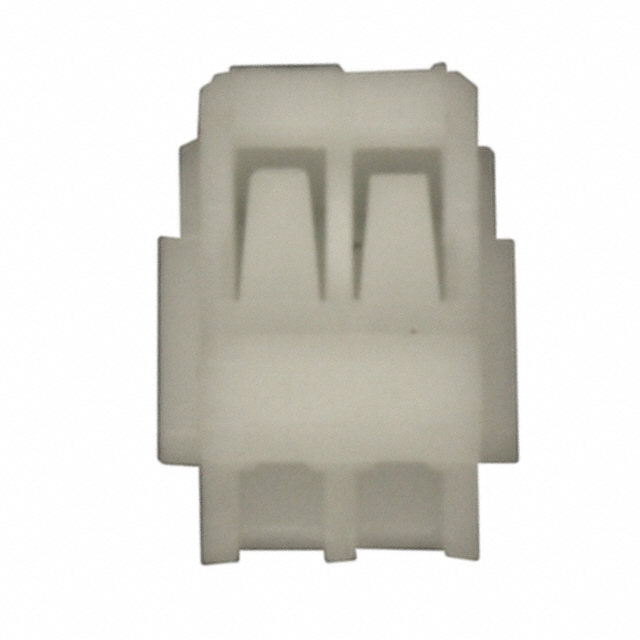

353908-2

TE Connectivity AMP ConnectorsIn Stock: 1267353908-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 353908-2 (TE Connectivity AMP Connectors, Mini CT series) qualifies as a parametric equivalent based on the following matching criteria:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 2
• Pitch: 0.059" (1.50mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Insulation Material: Polyamide (PA66), Nylon 6/6
• RoHS Compliance: Yes
• MSL Rating: 1 (Unlimited)

Both parts function identically within the specified electrical and mechanical parameters for rectangular connector housings in this category. Substitution is valid where these core parameters are required.

Parameter Comparison

Engineering Selection Recommendations

Both ZHR-2-M and 353908-2 are active production parts with full RoHS compliance and MSL Level 1 certification. Selection between these parts should be based on:

• Supply availability and lead time requirements
• Operating temperature envelope: The 353908-2 supports -30°C ~ 105°C versus ZHR-2-M at -25°C ~ 85°C. Applications requiring extended temperature operation favor the TE Connectivity part.
• Housing color specification: ZHR-2-M is green; 353908-2 is white. Visual identification or color-coded assembly requirements may dictate selection.
• Packaging format: 353908-2 is supplied in bulk packaging; ZHR-2-M packaging is unspecified.
• Series compatibility: ZHR-2-M belongs to the JST ZH series; 353908-2 belongs to the TE Connectivity Mini CT series. Connector ecosystem and contact availability within each series should be verified for complete assembly requirements.

Frequently Asked Questions (FAQ)

Q: Can 353908-2 be used as a direct replacement for ZHR-2-M?

A: Yes, for applications where the core functional parameters are required: 2-position receptacle housing, 1.50mm pitch, crimp termination, and free-hanging in-line mounting. Both parts share identical electrical and mechanical specifications in these areas.

Q: What are the differences between these parts?

A: The primary differences are manufacturer (JST vs. TE Connectivity), series designation (ZH vs. Mini CT), housing color (green vs. white), operating temperature range (ZHR-2-M: -25°C ~ 85°C; 353908-2: -30°C ~ 105°C), and packaging format. Functional performance within specified parameters is equivalent.

Q: Does color difference affect electrical performance?

A: No. Housing color is a visual identifier only and does not affect electrical or mechanical function. Selection based on color is a design or assembly requirement, not a performance criterion.

Q: Are contacts included with these housings?

A: No. Both ZHR-2-M and 353908-2 are housings only. Contacts must be sourced separately and are specific to each manufacturer's series.

Q: Which part should I select for high-temperature applications?

A: The 353908-2 supports operation to 105°C, compared to 85°C for the ZHR-2-M. For applications exceeding 85°C, the TE Connectivity part is the appropriate selection.

Q: Are both parts RoHS compliant?

A: Yes. Both ZHR-2-M and 353908-2 are RoHS compliant with MSL Level 1 rating, indicating no moisture sensitivity restrictions.
