YRM32F2BBRLN Equivalent & Substitute Parts

Part Overview

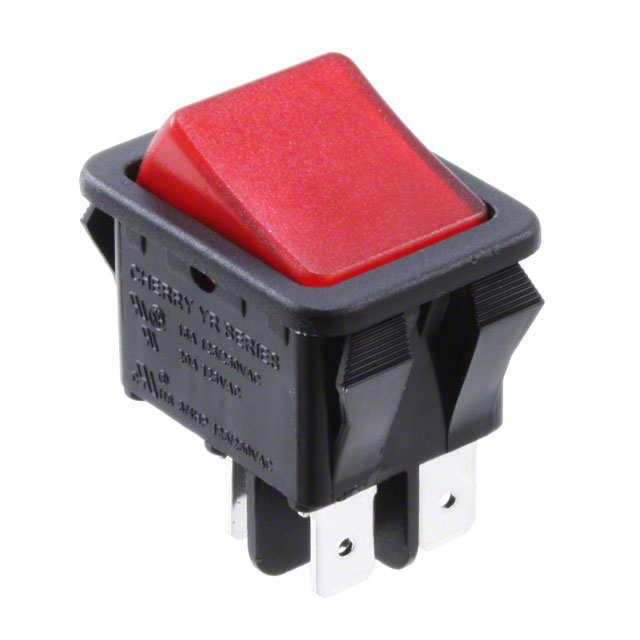

The YRM32F2BBRLN is an active-status rocker switch manufactured by ZF Electronics, classified as a DPST (Double Pole Single Throw) panel-mount component rated for 20A AC at 125V. This illuminated switch features a concave red actuator with incandescent red illumination and quick-connect termination. The component is designed for applications requiring reliable on-off switching in AC circuits with integrated visual feedback. Substitute parts are identified when equivalent electrical ratings, mechanical mounting specifications, and functional characteristics align with the original component's design parameters.

Substiute Parts

YRM32F2BBRLN

ZF ElectronicsIn Stock: 1029YRM32F2BBRLN Datasheet

Current PartRFQ

RB242D1000-116

E-SwitchIn Stock: 15482RB242D1000-116 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the YRM32F2BBRLN is determined by strict alignment of the following critical parameters:

Electrical Equivalence Requirements:

• Circuit configuration must be DPST
• Current rating must be 20A AC minimum
• Voltage rating must be 125V AC minimum
• Switch function must be On-Off

Mechanical Compatibility Requirements:

• Mounting type must be Panel Mount, Snap-In
• Panel cutout dimensions must be Rectangular - 30.00mm x 22.00mm
• Termination style must be Quick Connect - 0.250" (6.3mm)

Functional Requirements:

• Actuator type must be Concave (Curved) - Illuminated
• Actuator color must be Red
• Illumination voltage must be 125 VAC

Compliance Requirements:

• RoHS3 Compliant status required

The substitute part RB242D1000-116 meets all critical electrical, mechanical, and functional parameters. Variations in illumination technology (neon versus incandescent), operating temperature range, and electrical life cycle ratings do not preclude substitution when the primary functional and electrical requirements are satisfied.

Parameter Comparison

Engineering Selection Recommendations

Both the YRM32F2BBRLN and RB242D1000-116 are active-status components with ROHS3 compliance certification. Selection between these parts should be based on application-specific environmental and operational requirements:

YRM32F2BBRLN Selection Criteria:

• Applications requiring operation within the 0°C to 85°C temperature range
• Systems where incandescent illumination characteristics are specified
• Mechanical life cycle requirements up to 50,000 cycles

RB242D1000-116 Selection Criteria:

• Applications requiring extended electrical life (10,000 cycles versus 6,000 cycles)
• Systems tolerating the -20°C to 65°C operating temperature range
• Applications where neon illumination is functionally acceptable
• Cost or availability considerations favoring E-Switch supply chain

Both components satisfy the core electrical requirements (20A AC, 125V), mechanical mounting specifications (panel mount, snap-in, 30.00mm x 22.00mm cutout), and functional characteristics (DPST on-off switching with illuminated red concave actuator).

Frequently Asked Questions (FAQ)

Q: Can RB242D1000-116 directly replace YRM32F2BBRLN in existing designs?

A: Yes, for applications operating within the overlapping temperature range (-20°C to 65°C) and where neon illumination is functionally acceptable. Both components share identical electrical ratings (20A AC, 125V), circuit configuration (DPST), mounting type (panel mount, snap-in), panel cutout dimensions (30.00mm x 22.00mm), and termination style (quick connect 0.250").

Q: What is the primary difference between these two parts?

A: The primary differences are illumination technology (incandescent versus neon), operating temperature range (0°C–85°C versus -20°C–65°C), and electrical life rating (6,000 cycles versus 10,000 cycles). All critical electrical and mechanical parameters are equivalent.

Q: Are there temperature limitations when substituting?

A: Yes. The YRM32F2BBRLN operates from 0°C to 85°C, while the RB242D1000-116 operates from -20°C to 65°C. Applications requiring operation above 65°C must use the YRM32F2BBRLN. Applications requiring operation below 0°C must use the RB242D1000-116.

Q: Do these switches require the same panel cutout?

A: Yes. Both components require an identical rectangular panel cutout of 30.00mm x 22.00mm and use the same snap-in mounting method.

Q: Are both parts RoHS compliant?

A: Yes. Both YRM32F2BBRLN and RB242D1000-116 are ROHS3 compliant.

Q: What is the difference between incandescent and neon illumination in these switches?

A: Both provide red illumination at 125 VAC nominal voltage. Incandescent illumination (YRM32F2BBRLN) uses a heated filament, while neon illumination (RB242D1000-116) uses a gas discharge tube. Both are functionally equivalent for visual indication purposes.
