YB215CWCSG01 Equivalent & Substitute Parts

Part Overview

The YB215CWCSG01 is a standard size pushbutton switch manufactured by NKK Switches, featuring SPDT (Single Pole Double Throw) circuit configuration with momentary on-function. This component is designed for panel mount, front installation applications requiring 0.4VA switching capacity at 28V AC/DC. The part is currently classified as obsolete, making identification of functionally equivalent alternatives essential for system maintenance, repair, and component sourcing.

Substiute Parts

YB215CWCSG01

NKK SwitchesIn Stock: 793YB215CWCSG01 Datasheet

Current PartRFQ

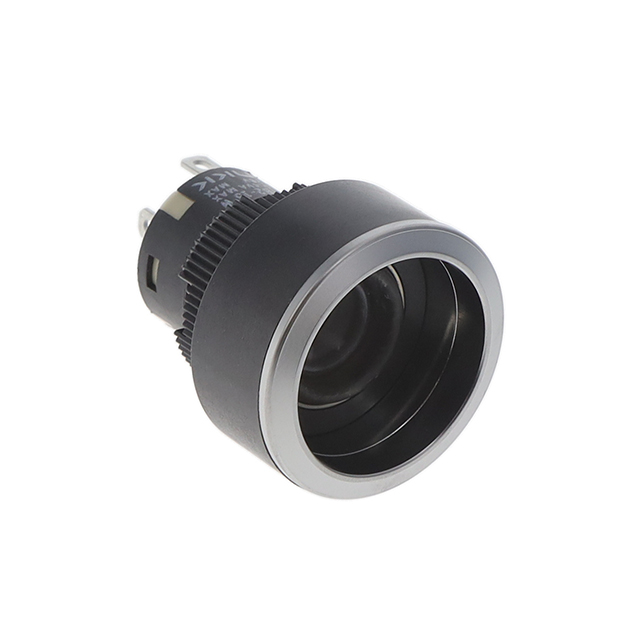

YB215CWCPG01

NKK SwitchesIn Stock: 851YB215CWCPG01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the YB215CWCSG01 is determined by strict equivalence across the following critical parameters:

Electrical Parameters: Circuit configuration (SPDT), switch function (On-Mom), current rating (0.4VA AC/DC), and voltage ratings (28V AC and DC) must be identical.

Mechanical Parameters: Mounting type (Panel Mount, Front), panel cutout dimensions (Circular 22.00mm Dia), and termination style (Solder, Quick Connect - 0.110" 2.8mm) must match exactly.

Environmental & Performance Parameters: Ingress protection rating (IP65), operating temperature range (-25°C ~ 70°C), mechanical life (1,000,000 cycles), and electrical life (100,000 cycles) must be maintained.

Compliance Parameters: RoHS3 compliance status must be present.

The YB215CWCPG01 meets all substitution criteria, differing only in product status (Active vs. Obsolete) and packaging designation (Bulk vs. standard), which do not affect functional or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

The YB215CWCPG01 is a direct functional equivalent to the YB215CWCSG01. Both components are manufactured by NKK Switches within the YB2 series and maintain identical electrical, mechanical, and environmental specifications. The primary distinction is product status: YB215CWCSG01 is obsolete while YB215CWCPG01 is active.

For new designs or component replacement applications, YB215CWCPG01 is the appropriate selection due to its active product status and confirmed availability. Both parts maintain ROHS3 compliance and equivalent performance characteristics across all critical parameters including voltage rating, current capacity, mechanical life, and ingress protection rating.

Frequently Asked Questions (FAQ)

Q: Can YB215CWCPG01 be used as a direct replacement for YB215CWCSG01?

A: Yes. Both components are electrically and mechanically identical across all functional parameters. The YB215CWCPG01 is the active equivalent of the obsolete YB215CWCSG01 and requires no circuit or mechanical modifications for substitution.

Q: What are the key parameters that determine substitution compatibility?

A: Substitution compatibility is determined by: SPDT circuit configuration, 0.4VA current rating at 28V AC/DC, momentary on-function, panel mount front installation, 22.00mm circular panel cutout, solder/quick connect 0.110" termination, IP65 ingress protection, -25°C to 70°C operating range, 1,000,000 mechanical cycles, and 100,000 electrical cycles. All parameters must match exactly.

Q: Does packaging type affect functional compatibility?

A: No. Packaging designation (Bulk vs. standard) does not affect electrical or mechanical performance. Component functionality remains identical regardless of packaging configuration.

Q: Are both parts RoHS compliant?

A: Yes. Both YB215CWCSG01 and YB215CWCPG01 are ROHS3 compliant, meeting current environmental and regulatory requirements.

Q: Why is YB215CWCSG01 listed as obsolete?

A: Product obsolescence is a manufacturer designation indicating the part is no longer in active production. YB215CWCPG01 serves as the active production equivalent with identical specifications.
