YB215CWCPG01-5C-CB Equivalent & Substitute Parts

Part Overview

The YB215CWCPG01-5C-CB is an illuminated pushbutton switch manufactured by NKK Switches, classified as SPDT (Single Pole Double Throw) with On-Momentary function. This panel-mount component operates at 28V AC/DC with 0.4VA current rating and features red LED illumination at 1.9VDC nominal. The switch is actively produced and maintains full inventory availability. Substitute parts are identified when identical electrical and mechanical parameters are maintained across the YB2 series, ensuring direct functional equivalence in circuit applications.

Substiute Parts

YB215CWCPG01-5C-CB

NKK SwitchesIn Stock: 1024YB215CWCPG01-5C-CB Datasheet

Current PartRFQ

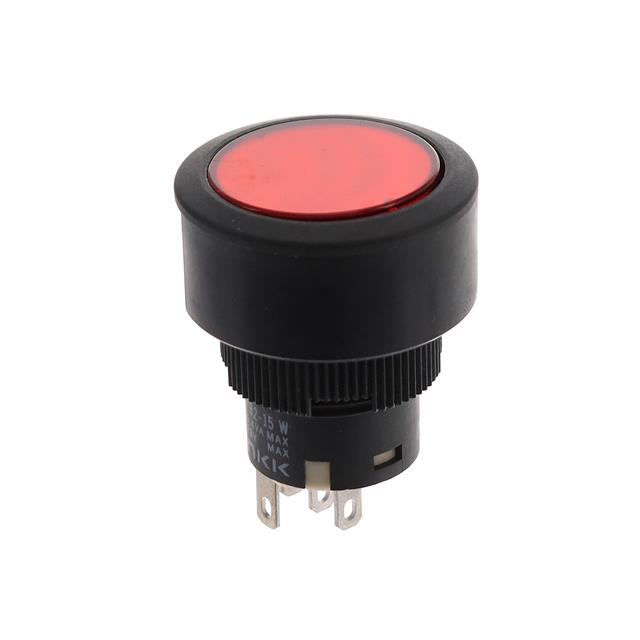

YB215CWCKG01-5C-CB

NKK SwitchesIn Stock: 873YB215CWCKG01-5C-CB Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the YB215CWCPG01-5C-CB is determined by strict equivalence across the following critical parameters:

• Circuit configuration (SPDT)
• Switch function (On-Momentary)
• Current and voltage ratings (0.4VA at 28V AC/DC)
• Illumination specifications (LED, Red, 1.9VDC)
• Mechanical interface (Panel Mount, Front; Round Button, Flush; 22.00mm circular cutout)
• Termination style (Solder, Quick Connect - 0.110")
• Environmental ratings (IP65; -25°C ~ 50°C operating range)
• Lifecycle specifications (1,000,000 mechanical cycles; 100,000 electrical cycles)
• Compliance certifications (ROHS3)

The substitute part YB215CWCKG01-5C-CB maintains identical specifications across all these parameters, confirming direct functional and mechanical interchangeability within the YB2 series.

Parameter Comparison

Engineering Selection Recommendations

Both YB215CWCPG01-5C-CB and YB215CWCKG01-5C-CB are active products with full ROHS3 compliance. Selection between these parts should be based on inventory availability and supply chain considerations. YB215CWCPG01-5C-CB maintains 1014 units in stock, while YB215CWCKG01-5C-CB maintains 766 units. Both parts satisfy identical electrical, mechanical, and environmental specifications, confirming direct substitution capability in all circuit applications requiring SPDT illuminated pushbutton switches at 28V with 0.4VA rating.

Frequently Asked Questions (FAQ)

Q: Can YB215CWCKG01-5C-CB replace YB215CWCPG01-5C-CB in existing designs?

A: Yes. Both parts are electrically and mechanically identical across all specified parameters, including circuit configuration, voltage/current ratings, illumination characteristics, panel cutout dimensions, and termination style. Direct substitution is valid without circuit modification.

Q: Are there differences in mechanical life or electrical performance between these parts?

A: No. Both parts specify identical mechanical life (1,000,000 cycles) and electrical life (100,000 cycles), with matching operating temperature ranges (-25°C ~ 50°C) and IP65 ingress protection ratings.

Q: What determines substitution eligibility for YB2 series pushbutton switches?

A: Substitution requires matching specifications across circuit configuration (SPDT), switch function (On-Momentary), current/voltage ratings (0.4VA at 28V AC/DC), illumination type and voltage (LED Red at 1.9VDC), mounting interface (Panel Mount, Front; 22.00mm circular cutout), termination style (Solder, Quick Connect - 0.110"), and environmental ratings (IP65; -25°C ~ 50°C).

Q: Are both parts ROHS3 compliant?

A: Yes. Both YB215CWCPG01-5C-CB and YB215CWCKG01-5C-CB maintain ROHS3 compliance status.

Q: What is the difference between these part numbers if all specifications match?

A: The provided data indicates both parts are functionally equivalent within the YB2 series. Differences in part number designation reflect internal NKK Switches product line management but do not affect electrical or mechanical performance in circuit applications.
