Part Overview

The YB215CWCKW01/CUL-5D-JS is an illuminated pushbutton switch manufactured by NKK Switches, classified as a standard SPDT (Single Pole Double Throw) panel mount component with LED amber illumination. This switch is designed for applications requiring tactile feedback with integrated illumination in a compact 22mm circular panel cutout format. The product maintains Active status with 1,175 units in current inventory. Substitute parts are identified when identical electrical ratings, mechanical specifications, and functional characteristics are maintained across the YB2 series platform.

Substiute Parts

YB215CWCKW01/CUL-5D-JS

NKK SwitchesIn Stock: 1218YB215CWCKW01/CUL-5D-JS Datasheet

Current PartRFQ

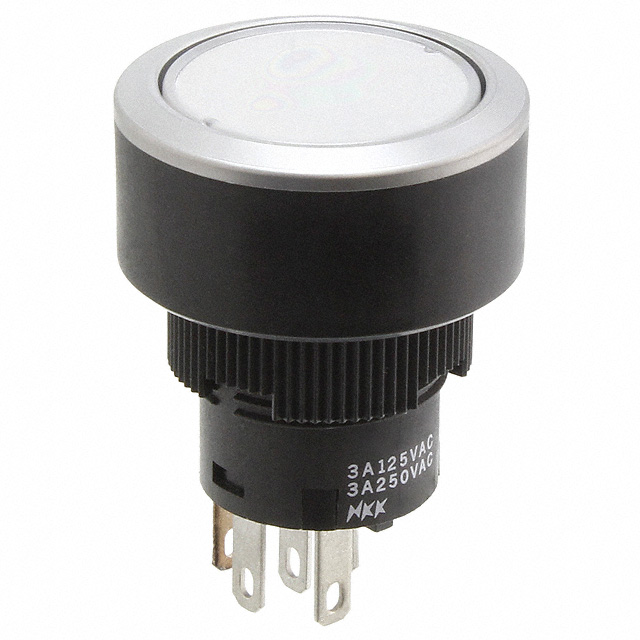

YB215CWCPW01-5D-JS

NKK SwitchesIn Stock: 921YB215CWCPW01-5D-JS Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the YB215CWCKW01/CUL-5D-JS is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Criteria:

• Circuit configuration: SPDT
• Current rating: 3A (AC/DC)
• Voltage ratings: 125V AC / 30V DC
• Illumination specification: LED, Amber at 2 VDC nominal

Mechanical Equivalence Criteria:

• Mounting type: Panel Mount, Front
• Panel cutout: Circular 22.00mm diameter
• Actuator type: Round, Button, Flush
• Termination style: Solder, Quick Connect - 0.110" (2.8mm)

Environmental & Compliance Criteria:

• Ingress Protection: IP65
• Operating temperature: -25°C to 50°C
• Mechanical life: 1,000,000 cycles
• Electrical life: 100,000 cycles
• RoHS3 compliance

The YB215CWCPW01-5D-JS meets all specified parameters and qualifies as a parametric equivalent within the YB2 series platform.

Parameter Comparison

Engineering Selection Recommendations

Both the YB215CWCKW01/CUL-5D-JS and YB215CWCPW01-5D-JS maintain Active product status within the NKK Switches YB2 series. Both components are ROHS3 compliant and carry identical electrical, mechanical, and environmental specifications. Selection between these parts may be based on inventory availability: YB215CWCKW01/CUL-5D-JS has 1,175 units in stock, while YB215CWCPW01-5D-JS has 827 units available. Both parts satisfy identical application requirements for 3A SPDT illuminated pushbutton switch applications with 125V AC / 30V DC ratings and IP65 environmental protection.
