YB215CWCKW01/CUL-5D24-EB Equivalent & Substitute Parts

Part Overview

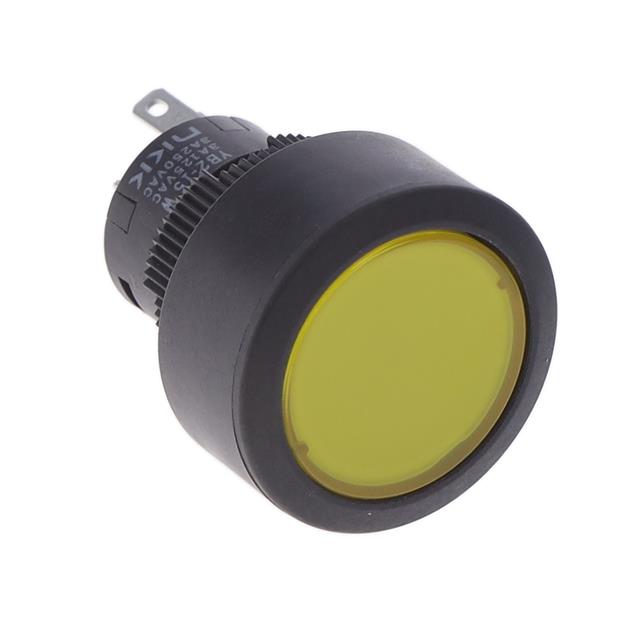

The YB215CWCKW01/CUL-5D24-EB is an illuminated pushbutton switch manufactured by NKK Switches, currently in active production status. This SPDT standard panel mount switch features LED amber illumination at 24 VDC nominal voltage and is designed for front panel installation with a circular 22.00mm diameter cutout. The switch delivers 3A current rating at 125V AC or 30V DC with IP65 ingress protection and tactile feedback operation. Finding equivalent substitute parts becomes necessary when managing inventory across multiple supply channels, addressing lead time constraints, or consolidating component sourcing for manufacturing operations.

Substiute Parts

YB215CWCKW01/CUL-5D24-EB

NKK SwitchesIn Stock: 1166YB215CWCKW01/CUL-5D24-EB Datasheet

Current PartRFQ

YB215CWCKW01-5D24-EB

NKK SwitchesIn Stock: 745YB215CWCKW01-5D24-EB Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the YB215CWCKW01/CUL-5D24-EB is determined by strict equivalence across the following critical parameters: SPDT circuit configuration, On-Mom switch function, 3A current rating at 125V AC and 30V DC, LED amber illumination at 24 VDC nominal, panel mount front installation with 22.00mm circular cutout, IP65 ingress protection rating, solder and quick connect 0.110" (2.8mm) termination, operating temperature range of -25°C to 50°C, mechanical life of 1,000,000 cycles, and electrical life of 100,000 cycles. All substitute parts must maintain identical electrical performance specifications, mechanical interface dimensions, and environmental ratings. Compliance with ROHS3 and MSL 1 (Unlimited) moisture sensitivity level is required for all substitutes.

Parameter Comparison

Engineering Selection Recommendations

Both the YB215CWCKW01/CUL-5D24-EB and YB215CWCKW01-5D24-EB maintain active production status with full ROHS3 compliance and MSL 1 (Unlimited) moisture sensitivity rating. Selection between these parts should be based on inventory availability and supply chain lead times, as both parts are electrically and mechanically equivalent. The YB215CWCKW01/CUL-5D24-EB currently maintains 1,069 pieces in stock, while the YB215CWCKW01-5D24-EB has 724 pieces available. Both parts satisfy identical electrical performance requirements, environmental specifications, and mechanical interface requirements for direct substitution in panel mount applications requiring SPDT illuminated pushbutton functionality.

Frequently Asked Questions (FAQ)

Q: Are these parts electrically interchangeable? A: Yes. Both parts share identical SPDT circuit configuration, 3A current rating at 125V AC and 30V DC, LED amber illumination at 24 VDC, and 100,000 cycle electrical life specification.

Q: Do these parts have the same mechanical interface? A: Yes. Both parts feature identical 22.00mm circular panel cutout dimensions, front panel mount configuration, and solder/quick connect 0.110" (2.8mm) termination style.

Q: What is the difference between YB215CWCKW01/CUL-5D24-EB and YB215CWCKW01-5D24-EB? A: These parts are parametrically equivalent. The difference in part numbering reflects internal NKK Switches designation conventions but does not indicate functional or electrical differences.

Q: Can I use either part in my existing design? A: Yes. Both parts meet identical electrical performance, environmental rating (IP65), operating temperature range (-25°C to 50°C), and mechanical life (1,000,000 cycles) specifications.

Q: Are both parts ROHS3 compliant? A: Yes. Both parts carry ROHS3 compliance certification and MSL 1 (Unlimited) moisture sensitivity level rating.

Q: What should I consider when selecting between these substitutes? A: Selection should be based on current inventory levels and supply chain availability. Both parts are functionally identical and suitable for direct substitution in panel mount illuminated pushbutton switch applications.
