XS5C-D4S1 Equivalent & Substitute Parts

Part Overview

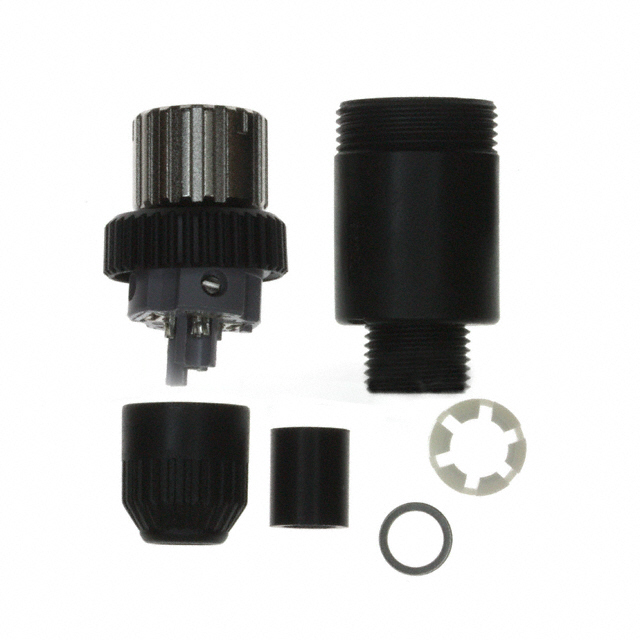

The XS5C-D4S1 is a 4-position circular connector receptacle manufactured by Omron Automation and Safety. This female socket connector features M12-4 shell size with screw termination, gold-plated mating contacts, and IP67 ingress protection rating. The part is active in production status with 20,199 units in current inventory. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in applications where the connector type, position count, shell size, termination method, and environmental ratings match.

Substiute Parts

XS5C-D4S1

Omron Automation and SafetyIn Stock: 20284XS5C-D4S1 Datasheet

Current PartRFQ

1694295

Phoenix ContactIn Stock: 10291694295 Datasheet

SimilarRFQ

43-00092

Amphenol CONECIn Stock: 117143-00092 Datasheet

SimilarRFQ

43-00113

Amphenol CONECIn Stock: 103443-00113 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the XS5C-D4S1 is determined by the following critical parameters:

• Connector Type & Position Count: All substitutes must be 4-position circular connectors with female socket configuration
• Shell Size: M12-4 shell size compatibility is mandatory for mechanical fit
• Termination Method: Screw termination required for wire attachment compatibility
• Contact Finish: Gold-plated mating contacts for electrical performance equivalence
• Ingress Protection: IP67 rating required for environmental sealing equivalence
• Electrical Ratings: Current and voltage ratings must meet or exceed 4A and 250VDC specifications
• Compliance: ROHS3 compliance and active product status required

The three identified substitutes (1694295, 43-00092, 43-00113) meet these core criteria. Variations in shell material, fastening type, shielding configuration, and temperature range represent acceptable engineering differences that do not prevent functional substitution in applications matching the XS5C-D4S1 electrical and mechanical interface requirements.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts maintain ROHS3 compliance and active product status equivalent to the XS5C-D4S1. Selection among substitutes is based on specific application requirements:

1694295 (Phoenix Contact SACC Series): Maintains receptacle configuration matching the main part. Voltage rating of 60VDC is lower than the XS5C-D4S1 specification; this part is suitable for applications operating at or below 60VDC. Extended operating temperature range (-40°C ~ 85°C) provides broader environmental capability. Shielded configuration offers electromagnetic interference protection.

43-00092 (Amphenol CONEC Series 43): Plug connector type represents a mating interface change from the receptacle main part. Voltage rating of 250V meets the main part specification. Unshielded configuration differs from shielded alternatives. Plastic shell material (PA6 nylon glass-filled) differs from metal construction of other options.

43-00113 (Amphenol CONEC Series 43): Plug connector type represents a mating interface change from the receptacle main part. Voltage rating of 250V meets the main part specification. Shielded configuration provides electromagnetic interference protection. Metal shell material (Gadolinium-Zinc) aligns with main part material approach. Current rating is not specified in available data.

Frequently Asked Questions (FAQ)

Q: Can 1694295 directly replace XS5C-D4S1 in all applications?

A: 1694295 is a receptacle connector matching the XS5C-D4S1 connector type. Direct replacement is possible in applications where the voltage requirement does not exceed 60VDC. Applications requiring 250VDC operation require verification that the lower voltage rating is acceptable for the specific circuit design.

Q: Why are 43-00092 and 43-00113 listed as substitutes if they are plug connectors?

A: These parts are plug connectors, representing the mating half of a circular connector interface. They are listed as substitutes because they provide the complementary connector type for applications where a receptacle-to-plug mating pair is required. The XS5C-D4S1 receptacle would mate with either plug option.

Q: What is the difference between shielded and unshielded options?

A: 1694295 and 43-00113 include shielding for electromagnetic interference protection. 43-00092 is unshielded. Shielding is required in applications with noise-sensitive signal transmission; unshielded connectors are suitable for power distribution and non-critical signal applications.

Q: Are all substitutes compatible with the same cable opening specifications?

A: Cable opening specifications vary among substitutes. XS5C-D4S1 accepts 5.00mm ~ 6.00mm cable diameter. 1694295 accepts 4.00mm ~ 6.00mm. 43-00092 accepts 6.00mm ~ 8.00mm. 43-00113 accepts 4.00mm ~ 8.00mm. Cable diameter must fall within the specified range for proper termination.

Q: What is the significance of the M12-4 shell size designation?

A: M12-4 indicates a 12mm diameter circular connector shell with 4-position insert. This standardized designation ensures mechanical compatibility across all listed parts for mating and mounting applications.

Q: Do all substitutes meet the same environmental sealing requirements?

A: All listed substitutes maintain IP67 ingress protection rating, providing equivalent dust-tight and waterproof sealing performance to the XS5C-D4S1.
