XPEPHR-L1-0000-00901 Equivalent & Substitute Parts

Part Overview

The XPEPHR-L1-0000-00901 is a CreeLED XLamp® XP-E Red 660nm surface mount LED in a 1414 (3535 Metric) package. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The XLamp® XP-E series delivers red wavelength output suitable for indicator lighting, display backlighting, and general illumination applications requiring 660nm spectral output.

Substiute Parts

XPEPHR-L1-0000-00901

CreeLED, Inc.In Stock: 1221XPEPHR-L1-0000-00901 Datasheet

Current PartRFQ

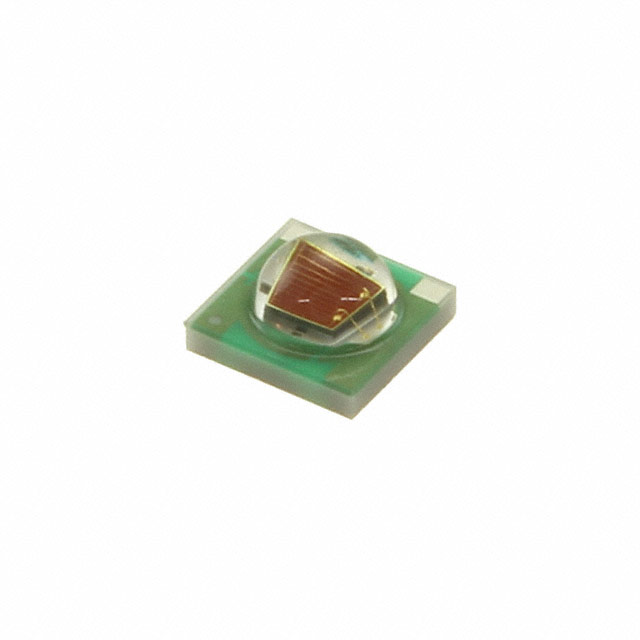

XPEEPR-L1-0000-00901

CreeLED, Inc.In Stock: 4525XPEEPR-L1-0000-00901 Datasheet

DirectRFQ

LXZ1-PA01

LumiledsIn Stock: 4172LXZ1-PA01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the XPEPHR-L1-0000-00901 are classified into two categories based on electrical and mechanical compatibility:

Direct Manufacturer Substitute (Recommended): The XPEEPR-L1-0000-00901 is a direct substitute from the same manufacturer (CreeLED, Inc.) within the XLamp® XP-E series. This part maintains identical wavelength (660nm), package dimensions (1414/3535 Metric), mounting type (Surface Mount), and thermal characteristics (8°C/W). The primary differences are active product status and RoHS compliance, making this the preferred replacement for obsolete XPEPHR inventory.

Similar Manufacturer Substitute (Alternative): The LXZ1-PA01 from Lumileds is a similar substitute offering the same 660nm wavelength and surface mount technology. However, this part uses a different package format (0705/1713 Metric) with smaller physical dimensions and different electrical characteristics. Selection of this alternative requires PCB layout redesign and circuit parameter verification.

Substitution is determined by the following key parameters:

• Wavelength range (650nm ~ 670nm)
• Color specification (Red)
• Mounting type (Surface Mount)
• Forward voltage compatibility (2.1V ~ 2.2V)
• Package footprint and height constraints

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (No Redesign): Select XPEEPR-L1-0000-00901 when PCB layout and mechanical constraints require identical package dimensions (1414/3535 Metric). This part is active and RoHS Compliant, providing regulatory compliance and long-term availability. Electrical parameters are functionally equivalent with negligible differences in maximum current (1.02A vs 1A) and luminous flux output (363mW vs 388mW). This substitution requires no circuit modifications.

For Alternative Applications (Redesign Required): Select LXZ1-PA01 only when PCB layout can accommodate the smaller 0705 (1713 Metric) package and circuit design can tolerate the different electrical characteristics (500mA test current vs 350mA, 700mA maximum current vs 1A). This part is ROHS3 Compliant and active. The reduced physical footprint and height (0.66mm vs 2.13mm) may provide design advantages in space-constrained applications. Verification of thermal management and current limiting circuits is required due to different maximum current rating.

Product status and regulatory compliance favor both active substitutes over the obsolete XPEPHR-L1-0000-00901 for new designs and long-term production continuity.

Frequently Asked Questions (FAQ)

Q: Can XPEEPR-L1-0000-00901 be used as a direct drop-in replacement for XPEPHR-L1-0000-00901? A: Yes. Both parts share identical package dimensions (1414/3535 Metric), mounting type (Surface Mount), wavelength (660nm), and thermal characteristics (8°C/W). No PCB layout or circuit modifications are required. The XPEEPR variant is active and RoHS Compliant, providing improved regulatory status.

Q: What are the key differences between XPEEPR-L1-0000-00901 and LXZ1-PA01? A: The primary differences are package format, physical dimensions, and electrical ratings. XPEEPR maintains the 1414 (3535 Metric) package with 2.13mm height and 1A maximum current. LXZ1-PA01 uses a smaller 0705 (1713 Metric) package with 0.66mm height and 700mA maximum current. Both deliver 660nm wavelength output. Package selection depends on PCB space constraints and circuit current requirements.

Q: Is the LXZ1-PA01 suitable for existing XPEPHR-L1-0000-00901 designs without modification? A: No. The LXZ1-PA01 requires PCB redesign due to different package footprint and height. Additionally, the maximum current rating (700mA) differs from XPEPHR (1A), requiring verification of current limiting circuits. Use LXZ1-PA01 only when PCB layout can be modified and electrical parameters are validated for the application.

Q: What compliance certifications apply to these substitute parts? A: XPEEPR-L1-0000-00901 is RoHS Compliant and REACH Unaffected. LXZ1-PA01 is ROHS3 Compliant and REACH Unaffected. Both parts carry ECCN EAR99 and HTSUS 8541.41.0000 classifications. The original XPEPHR-L1-0000-00901 compliance status is not fully specified.

Q: Are there packaging format differences between these parts? A: Yes. XPEPHR-L1-0000-00901 and XPEEPR-L1-0000-00901 are supplied in Tape & Reel (TR) packaging. Both use identical 1414 (3535 Metric) package cases. LXZ1-PA01 is also supplied in Tape & Reel (TR) but uses the smaller 0705 (1713 Metric) package case. Verify packaging compatibility with assembly equipment specifications.

Q: What is the thermal resistance impact when substituting these parts? A: All three parts share identical thermal resistance of 8°C/W. Thermal management design remains unchanged when substituting between these parts. However, the smaller physical size of LXZ1-PA01 may affect PCB thermal dissipation characteristics due to reduced copper pad area.
