Equivalent & Substitute Parts for XPEFAR-L1-0000-00701

Part Overview

The XPEFAR-L1-0000-00701 is an XLamp® XP-E Red 730nm LED in a 1414 (3535 Metric) surface mount package manufactured by CreeLED, Inc. This part is classified as obsolete, making identification of suitable substitute components essential for ongoing design support and production continuity. The XP-E series represents an earlier generation of high-brightness red LEDs, and equivalent alternatives are available within the CreeLED product portfolio to maintain electrical and mechanical compatibility in existing applications.

Substiute Parts

XPEFAR-L1-0000-00701

CreeLED, Inc.In Stock: 1085XPEFAR-L1-0000-00701 Datasheet

Current PartRFQ

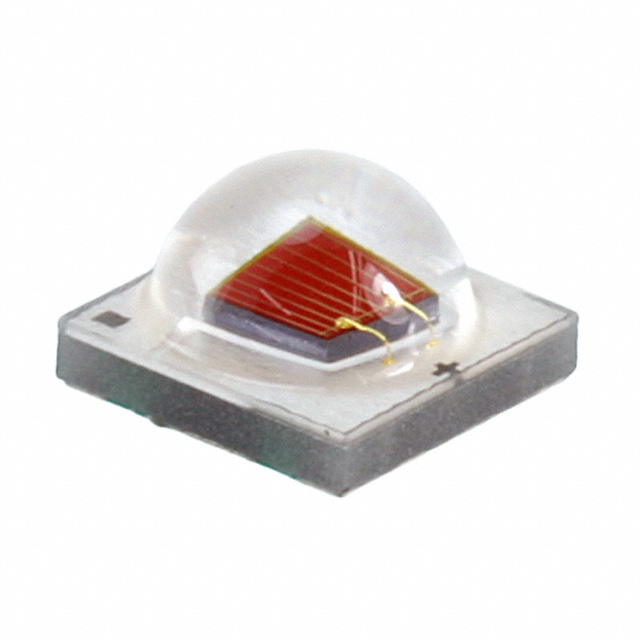

XPEBFR-L1-0000-00701

CreeLED, Inc.In Stock: 1137XPEBFR-L1-0000-00701 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete XPEFAR-L1-0000-00701 is determined by strict alignment of the following electrical and mechanical parameters:

• Wavelength Range: 730nm (720–740nm) – must remain within specification
• Maximum Forward Current: 1A – electrical rating must be maintained or exceeded
• Package / Case: 1414 (3535 Metric) – physical footprint and mounting compatibility
• Mounting Type: Surface Mount – assembly process compatibility
• Thermal Resistance: 8°C/W – thermal management characteristics
• Moisture Sensitivity Level: 1 (Unlimited) – handling and storage requirements

The XPEBFR-L1-0000-00701 (XLamp® XP-E2 Red 730nm) meets all substitution criteria. It maintains identical wavelength specification, package dimensions, and thermal characteristics while offering improved luminous flux output and forward voltage characteristics. The XP-E2 series represents an active product line with current manufacturing status and full compliance documentation.

Parameter Comparison

Engineering Selection Recommendations

The XPEBFR-L1-0000-00701 is the direct substitute for the obsolete XPEFAR-L1-0000-00701. Selection is based on the following engineering criteria:

Product Status: The main part is classified as obsolete, eliminating it from new procurement. The substitute part maintains active manufacturing status with current availability.

Electrical Compatibility: Both parts operate at identical test current (350mA) and maximum current (1A) ratings. The substitute exhibits a marginal reduction in forward voltage (1.85V vs. 1.9V), which is within typical design tolerance and may reduce power dissipation in the application circuit.

Optical Characteristics: Wavelength specification remains constant at 730nm (720–740nm). The substitute delivers increased luminous flux (313mW vs. 275mW at test conditions), representing a 13.8% improvement in light output. Viewing angle increases from 130° to 140°, providing wider light distribution.

Mechanical and Thermal Properties: Package dimensions, footprint, and thermal resistance remain identical. Height variation (2.39mm vs. 2.13mm) is 0.26mm and must be evaluated against PCB assembly clearance requirements.

Compliance and Certifications: The substitute part carries RoHS Compliant status and maintains REACH Unaffected classification. Both parts share identical ECCN (EAR99) and HTSUS (8541.41.0000) designations.

Frequently Asked Questions (FAQ)

Q: Can the XPEBFR-L1-0000-00701 be used as a direct replacement for XPEFAR-L1-0000-00701 in existing PCB designs?

A: Yes. Both parts share identical package footprint (1414/3535 Metric), mounting type (Surface Mount), and thermal characteristics (8°C/W). The 0.26mm height difference must be verified against PCB assembly clearance specifications. Electrical parameters are compatible within standard design tolerances.

Q: What are the key differences between these two parts?

A: The substitute (XP-E2) represents a newer product generation with improved luminous flux output (313mW vs. 275mW), slightly lower forward voltage (1.85V vs. 1.9V), and wider viewing angle (140° vs. 130°). The main part (XP-E) is obsolete; the substitute is in active production.

Q: Are there any compliance or regulatory differences?

A: The substitute part carries RoHS Compliant certification. Both parts maintain REACH Unaffected status and identical trade classification codes (ECCN: EAR99; HTSUS: 8541.41.0000).

Q: What is the impact of the increased luminous flux in the substitute part?

A: The 13.8% increase in luminous flux (313mW vs. 275mW) at identical test current indicates improved light output efficiency. This may require circuit-level evaluation if the application has strict brightness specifications or thermal constraints.

Q: Does the height difference affect assembly compatibility?

A: The substitute part is 0.26mm taller (2.39mm vs. 2.13mm). This must be evaluated against PCB design clearance requirements, solder reflow profiles, and any mechanical constraints in the assembly environment.

Q: Are both parts available in the same packaging format?

A: The main part is listed with no specified packaging format. The substitute is supplied in Tape & Reel (TR) format, which is standard for high-volume surface mount assembly.
