XM-M92-UP-AA Equivalent & Substitute Parts

Part Overview

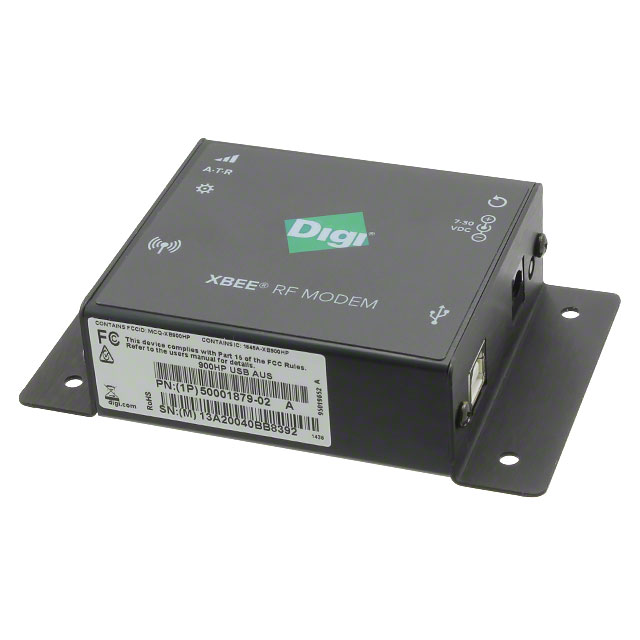

The XM-M92-UP-AA is an RF transceiver modem from Digi's XBee-Pro® series operating in the 902MHz to 928MHz frequency band with FHSS modulation. This unit features USB interface connectivity, 200kbps data rate, and -110dBm sensitivity. The part is currently obsolete, necessitating identification of active equivalent models to maintain system compatibility and ensure continued component availability for new designs and field replacements.

Substiute Parts

XM-M92-UP-AA

DigiIn Stock: 1009XM-M92-UP-AA Datasheet

Current PartRFQ

XM-M92-2P-UA

DigiIn Stock: 1006XM-M92-2P-UA Datasheet

MFR RecommendedRFQ

XM-M92-UP-UA

DigiIn Stock: 1165XM-M92-UP-UA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the XM-M92-UP-AA is determined by the following critical parameters: frequency range (902MHz ~ 928MHz), modulation type (FHSS), data rate (200kbps), sensitivity (-110dBm), and power output (24dBm). These RF and performance characteristics are fixed across the XBee-Pro® XM-M92 product line and define functional equivalence.

The primary differentiator among substitute parts is the interface type. The XM-M92-UP-AA uses USB connectivity. Substitute parts maintain identical RF performance but may differ in interface implementation (USB or RS-232) and corresponding supply voltage requirements. Parts sharing the USB interface and identical electrical specifications are direct functional equivalents. Parts with alternative interfaces (RS-232) provide equivalent RF performance but require interface adaptation in system design.

All substitute candidates share the same base product number (XM-M92), series designation (XBee-Pro®), and regulatory compliance framework (REACH Unaffected, ECCN 5A992C).

Parameter Comparison

Engineering Selection Recommendations

The XM-M92-UP-UA is the primary substitute for the obsolete XM-M92-UP-AA. Both parts maintain identical RF specifications, frequency range, data rate, sensitivity, and power output. The XM-M92-UP-UA is currently in active production status and carries RoHS Compliant certification, providing regulatory advantage for new designs. The USB interface and supply voltage range (2.1V ~ 3.6V) are identical, enabling direct functional replacement without circuit modification.

The XM-M92-2P-UA provides equivalent RF performance and is also in active production with RoHS Compliant status. However, this part uses RS-232 interface and requires supply voltage in the 7V ~ 30V range, necessitating interface and power supply circuit adaptation. Selection of this part is appropriate only when RS-232 connectivity is required or when higher supply voltage availability exists in the target system.

For applications requiring immediate component replacement with minimal design modification, the XM-M92-UP-UA is the appropriate selection. For applications where interface flexibility or higher supply voltage operation is beneficial, the XM-M92-2P-UA provides an alternative path with equivalent RF capability.

Frequently Asked Questions (FAQ)

Q: Can the XM-M92-UP-UA directly replace the XM-M92-UP-AA without circuit modification?

A: Yes. Both parts share identical USB interface, supply voltage range (2.1V ~ 3.6V), RF specifications, frequency range, data rate, sensitivity, and power output. Direct substitution is possible without circuit redesign.

Q: What is the primary difference between XM-M92-UP-UA and XM-M92-2P-UA?

A: The XM-M92-UP-UA uses USB interface with 2.1V ~ 3.6V supply voltage. The XM-M92-2P-UA uses RS-232 interface with 7V ~ 30V supply voltage. RF performance parameters are identical. Interface and power supply circuit modifications are required when substituting between these parts.

Q: Why is the XM-M92-UP-AA listed as obsolete?

A: The XM-M92-UP-AA is no longer in active production. The XM-M92-UP-UA serves as the current production equivalent with identical electrical and RF specifications.

Q: Are all three parts compatible with the same antenna and RF circuit design?

A: Yes. All three parts operate in the 902MHz ~ 928MHz frequency band with identical sensitivity (-110dBm) and power output (24dBm). Antenna and RF circuit design compatibility is maintained across all three parts.

Q: What is the significance of RoHS Compliant status on the substitute parts?

A: The XM-M92-UP-UA and XM-M92-2P-UA both carry RoHS Compliant certification, indicating compliance with Restriction of Hazardous Substances regulations. This status is relevant for applications subject to RoHS requirements or for manufacturers implementing RoHS-compliant supply chains.

Q: Can the XM-M92-2P-UA be used in applications designed for the XM-M92-UP-AA?

A: RF functionality is equivalent. However, the RS-232 interface and 7V ~ 30V supply voltage requirement necessitate circuit redesign. Direct substitution without modification is not possible.
