XL-600 WHITE Equivalent & Substitute Parts

Part Overview

The XL-600 WHITE is a 53mm flange-mounted piezo buzzer with internally driven indicator circuitry, designed for DC voltage operation in the 9-28V range. This component features wire lead termination and panel mount configuration suitable for audible alert applications.

The XL-600 WHITE is classified as obsolete. Locating equivalent substitute parts is necessary to maintain design continuity, ensure component availability, and support ongoing production or maintenance requirements for systems utilizing this buzzer specification.

Substiute Parts

XL-600 WHITE

PUI Audio, Inc.In Stock: 798XL-600 WHITE Datasheet

Current PartRFQ

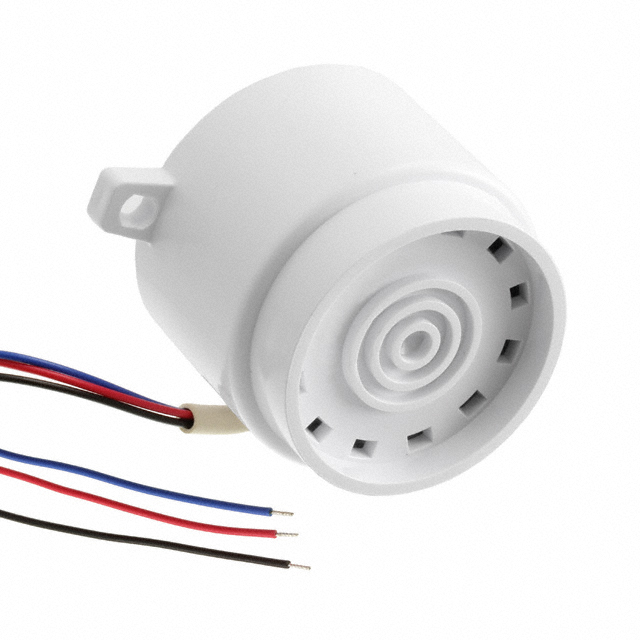

AW-10FW-NSVC

PUI Audio, Inc.In Stock: 1138AW-10FW-NSVC Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The AW-10FW-NSVC qualifies as a direct substitute based on the following alignment of critical parameters:

• Technology: Both utilize piezo technology with internally driven indicator circuitry
• Input Type: Both operate on DC voltage
• Voltage Compatibility: Both support the 9-28V range, with AW-10FW-NSVC rated at 12V nominal
• Mounting Configuration: Both feature 53mm flange panel mount with wire lead termination
• Physical Dimensions: Both maintain compatible 53mm diameter and similar seated height (43.00mm vs 44.60mm)
• Mechanical Interface: Identical mounting footprint and termination style ensure direct replacement capability

The AW-10FW-NSVC represents an active production alternative from the same manufacturer, providing enhanced specifications including documented frequency response, sound pressure level, current consumption, operating temperature range, and improved environmental protection (IP65 rating).

Parameter Comparison

Engineering Selection Recommendations

The AW-10FW-NSVC is the appropriate substitute for the obsolete XL-600 WHITE based on the following factors:

Product Status: The XL-600 WHITE is obsolete, making the active production status of the AW-10FW-NSVC critical for ongoing component sourcing and supply chain continuity.

Regulatory Compliance: The AW-10FW-NSVC achieves ROHS3 compliance, whereas the XL-600 WHITE is RoHS non-compliant. This distinction is significant for applications subject to RoHS directives and modern procurement standards.

Environmental Protection: The AW-10FW-NSVC provides IP65 ingress protection (dust tight, water resistant), offering enhanced durability compared to the unspecified protection rating of the XL-600 WHITE.

Mechanical Compatibility: Both components share identical 53mm flange mounting, wire lead termination, and compatible seated heights, ensuring direct mechanical replacement without redesign.

Electrical Compatibility: Both operate within the 9-28V DC range with internally driven piezo technology, maintaining functional equivalence for DC-powered alert applications.

Frequently Asked Questions (FAQ)

Q: Can the AW-10FW-NSVC directly replace the XL-600 WHITE in existing designs?

A: Yes. Both components feature identical 53mm flange panel mount configuration, wire lead termination, and compatible physical dimensions. The electrical operating range (9-28V DC) and internally driven piezo technology are equivalent, enabling direct substitution without circuit modification.

Q: What are the key differences between these two buzzers?

A: The primary differences are product status (obsolete vs. active), regulatory compliance (RoHS non-compliant vs. ROHS3 compliant), and documented performance specifications. The AW-10FW-NSVC provides specified frequency (2.9kHz), sound pressure level (118dB @ 12V, 10cm), current consumption (15mA), operating temperature range (-25°C ~ 70°C), and IP65 environmental protection. The XL-600 WHITE lacks these documented specifications.

Q: Are there packaging considerations when substituting these parts?

A: The XL-600 WHITE is listed with unspecified packaging, while the AW-10FW-NSVC is supplied in bulk packaging. Verify packaging requirements for your procurement and assembly processes.

Q: Does the RoHS compliance difference affect substitution?

A: The AW-10FW-NSVC's ROHS3 compliance makes it suitable for applications subject to RoHS directives and modern environmental regulations. If your application or market requires RoHS compliance, the AW-10FW-NSVC is the appropriate choice.

Q: Are both components from the same manufacturer?

A: Yes. Both the XL-600 WHITE and AW-10FW-NSVC are manufactured by PUI Audio, Inc., ensuring consistent quality standards and design philosophy.
