XHP-3-Y Equivalent & Substitute Parts

Part Overview

The XHP-3-Y is a 3-position rectangular connector receptacle housing manufactured by JST Sales America Inc. as part of the XH series. This component is a female socket receptacle with 0.098" (2.50mm) pitch, designed for free-hanging in-line mounting applications with crimp-style contact termination. The part is currently active in production status and RoHS compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory availability, regional sourcing, or specific compliance certifications.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	3
Pitch	0.098" (2.50mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the XHP-3-Y are qualified based on the following critical parameters that must remain constant across all equivalent components:

Connector type: Receptacle
Contact type: Female socket
Number of positions: 3
Pitch: 0.098" (2.50mm)
Number of rows: 1
Mounting type: Free hanging (in-line)
Contact termination: Crimp
Moisture sensitivity level: 1 (Unlimited)

All five substitute parts listed meet these core electrical and mechanical requirements. Variations in color, insulation material composition, operating temperature range, and manufacturer series do not affect functional interchangeability within the specified parameter set.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
XHP-3-Y	JST Sales America Inc.	XH	Yellow	Polyamide (PA6), Nylon 6	-25°C ~ 85°C	RoHS Compliant	718
1470222-3	TE Connectivity AMP Connectors	High Performance Interconnect (HPI)	Ivory	Thermoplastic	-40°C ~ 105°C	ROHS3 Compliant	14831

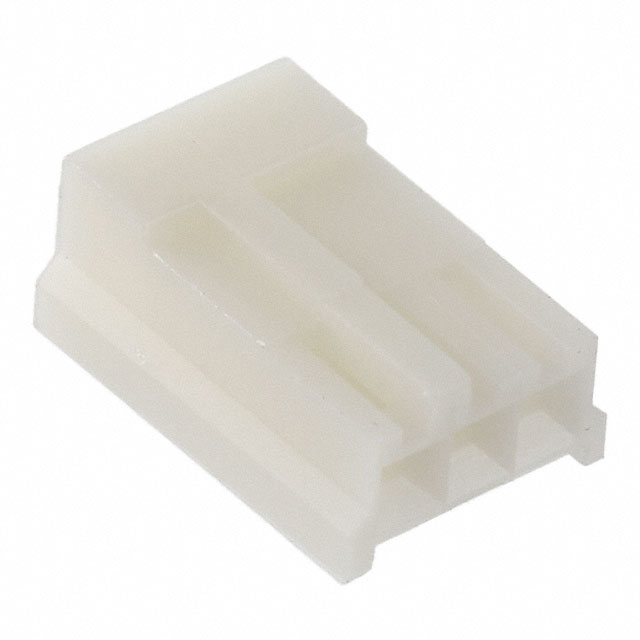

171822-3	TE Connectivity AMP Connectors	EI	Natural	Polyamide (PA66), Nylon 6/6	-20°C ~ 95°C	RoHS Compliant	2200
2-171822-3	TE Connectivity AMP Connectors	EI	Black	Polyamide (PA66), Nylon 6/6	-20°C ~ 95°C	ROHS3 Compliant	500400

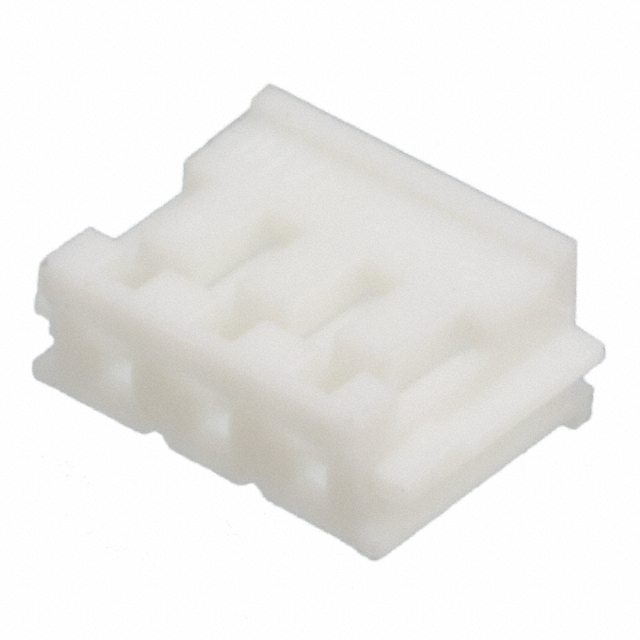

440133-3	TE Connectivity AMP Connectors	High Performance Interconnect (HPI)	Natural	Polyamide (PA66), Nylon 6/6	-25°C ~ 105°C	ROHS3 Compliant	1600

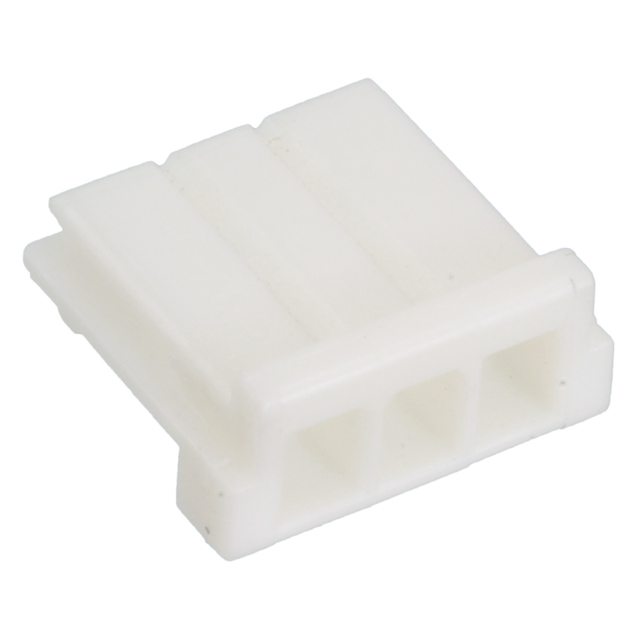

92009-3	TE Connectivity AMP Connectors	MIS	Natural	Polyamide (PA66), Nylon 6/6	-25°C ~ 105°C	RoHS Compliant	1104

Engineering Selection Recommendations

All five substitute parts maintain active product status and meet the core electrical and mechanical specifications of the XHP-3-Y. Selection among these equivalents should be based on application-specific requirements:

1470222-3 offers the widest operating temperature range (-40°C ~ 105°C) and highest inventory availability (14831 pcs), with ROHS3 compliance and thermoplastic insulation material.

2-171822-3 provides the largest inventory stock (500400 pcs) and ROHS3 compliance, suitable for high-volume applications requiring black housing color.

440133-3 and 92009-3 both support the extended temperature range (-25°C ~ 105°C) matching or exceeding the XHP-3-Y specification, with 92009-3 offering RoHS compliance and 440133-3 offering ROHS3 compliance.

171822-3 maintains RoHS compliance with moderate inventory (2200 pcs) and natural color housing.

Frequently Asked Questions (FAQ)

Q: Can XHP-3-Y be directly replaced with any of these substitute parts?

A: Yes. All five substitute parts are parametric equivalents meeting the core specifications: 3-position receptacle housing, female socket contacts, 0.098" (2.50mm) pitch, single-row configuration, free-hanging in-line mounting, and crimp termination. Functional interchangeability is confirmed within these parameters.

Q: Does color variation affect electrical performance?

A: No. Color is a cosmetic parameter that does not affect electrical or mechanical function. The XHP-3-Y (yellow) is electrically equivalent to natural, black, and ivory variants listed.

Q: What is the significance of different insulation materials?

A: Insulation material composition (PA6, PA66, or thermoplastic) affects mechanical properties and environmental resistance but does not alter the core connector function. Selection should align with application environmental conditions and mechanical stress requirements.

Q: Are there temperature range limitations when substituting?

A: The XHP-3-Y operates from -25°C to 85°C. Substitute parts with extended ranges (such as 1470222-3 at -40°C ~ 105°C) are backward compatible and suitable for the XHP-3-Y operating envelope. Conversely, substitutes with narrower ranges remain compatible if the application does not exceed their specified limits.

Q: What compliance certifications should I verify?

A: All listed parts are RoHS or ROHS3 compliant. Verify REACH status and ECCN classification against your specific regulatory requirements. The main part (XHP-3-Y) is RoHS Compliant with EAR99 classification.

Q: Does manufacturer source affect compatibility?

A: No. Both JST Sales America Inc. (XHP-3-Y) and TE Connectivity AMP Connectors (all substitutes) manufacture to the same IEC and industry standards for this connector category. Compatibility is determined by electrical and mechanical parameters, not manufacturer identity.
