XG5N-602-U Equivalent & Substitute Parts

Part Overview

The XG5N-602-U is a 60-position rectangular connector housing manufactured by Omron Electronics Inc-EMC Div. This receptacle connector is designed for applications requiring reliable in-line connections with crimp termination and latch lock/eject fastening. The part is currently in active production status with 1082 units available in new original inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are required for component procurement, inventory management, or supply chain continuity.

Substiute Parts

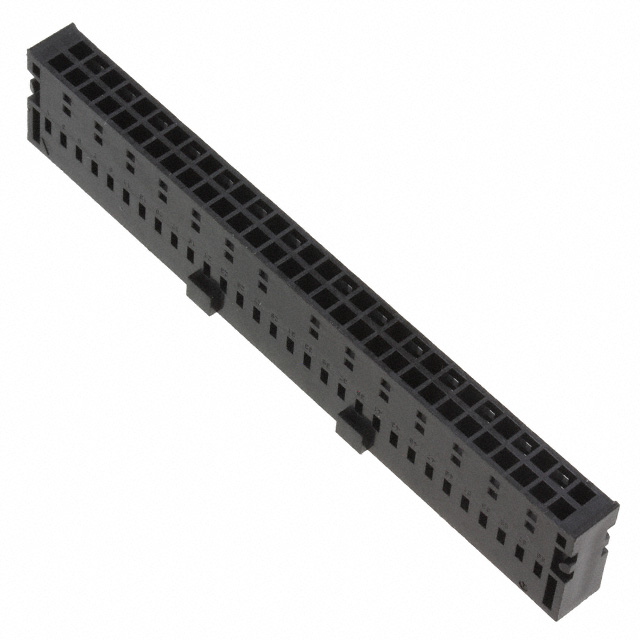

XG5N-602-U

Omron Electronics Inc-EMC DivIn Stock: 1157XG5N-602-U Datasheet

Current PartRFQ

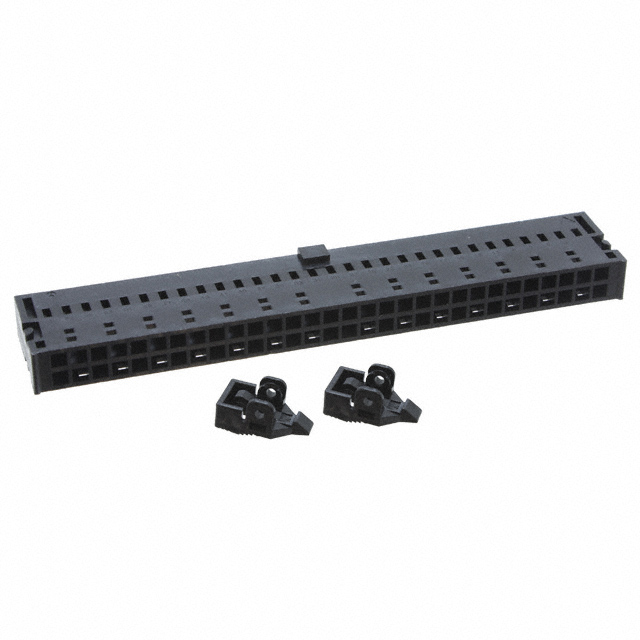

XG5N-601-U

Omron Electronics Inc-EMC DivIn Stock: 1183XG5N-601-U Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the XG5N-602-U are identified based on strict equivalence of the following critical parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 60
• Pitch: 0.100" (2.54mm)
• Number of Rows: 2
• Row Spacing: 0.100" (2.54mm)
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock/Eject Hooks
• Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
• Operating Temperature Range: -55°C ~ 105°C
• RoHS Compliance: RoHS Compliant

The XG5N-601-U meets all these criteria and is classified as a parametric equivalent within the XG5N series. Both parts share identical electrical and mechanical specifications, differing only in internal design or manufacturing revision while maintaining full functional interchangeability.

Parameter Comparison

Engineering Selection Recommendations

Both XG5N-602-U and XG5N-601-U are active production parts from Omron Electronics Inc-EMC Div with full RoHS compliance and MSL Level 1 rating. Selection between these parts should be based on inventory availability and supply chain requirements. The XG5N-601-U currently has higher inventory availability at 1157 units compared to 1082 units for the XG5N-602-U. Both parts meet identical electrical and mechanical specifications for 60-position rectangular connector housing applications with crimp termination and latch lock/eject fastening. No performance or compatibility differences exist between these parts.

Frequently Asked Questions (FAQ)

Q: Can XG5N-601-U be used as a direct replacement for XG5N-602-U?

A: Yes. Both parts are parametric equivalents with identical electrical and mechanical specifications. They share the same connector type, contact configuration, pitch, row spacing, termination method, and fastening mechanism.

Q: Are there any differences in physical dimensions between these parts?

A: No dimensional differences are specified in the provided parameters. Both parts are 60-position receptacles with 0.100" (2.54mm) pitch and 2-row configuration.

Q: Do both parts have the same operating temperature range?

A: Yes. Both XG5N-602-U and XG5N-601-U operate across the identical temperature range of -55°C to 105°C.

Q: Are both parts RoHS compliant?

A: Yes. Both parts are RoHS compliant and carry MSL Level 1 (Unlimited) moisture sensitivity rating.

Q: What is the packaging format for these connectors?

A: Both parts are supplied in tube packaging.

Q: Do these housings include contacts?

A: No. Both XG5N-602-U and XG5N-601-U are connector housings only. Contacts are not included and must be procured separately.
