XG4A-4034-8 Equivalent & Substitute Parts
Part Overview
The XG4A-4034-8 is a rectangular connector header manufactured by Omron Electronics Inc-EMC Div, classified as a connector header position component. This part is designated as Last Time Buy, indicating it is no longer in active production. Due to its discontinued status, identifying equivalent substitute parts is essential for ongoing system maintenance, repair, and new design implementations where compatibility with existing connector interfaces is required.
Substiute Parts
Key Parameters
| Parameter | XG4A-4034-8 |
|---|---|
| Manufacturer Part Number | XG4A-4034-8 |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Category | Rectangular Connectors |
| Product Status | Last Time Buy |
| Series | XG4 |
| Inventory Status | 728 Pcs New Original In Stock |
Substitute Part Grouping Explanation
The XG4A-4034-8 substitution is based on the following criteria derived from the Omron XG4 series family:
- Series Compatibility: Both parts belong to the XG4 rectangular connector series
- Manufacturer Consistency: Both parts are manufactured by Omron Electronics Inc-EMC Div
- Connector Type: Header configuration maintained across substitution
- Pitch and Position Specifications: 0.100" (2.54mm) mating pitch with 40-position configuration
- Mounting Configuration: Through-hole, right-angle mounting orientation
- Electrical Ratings: Consistent voltage and current specifications within the series

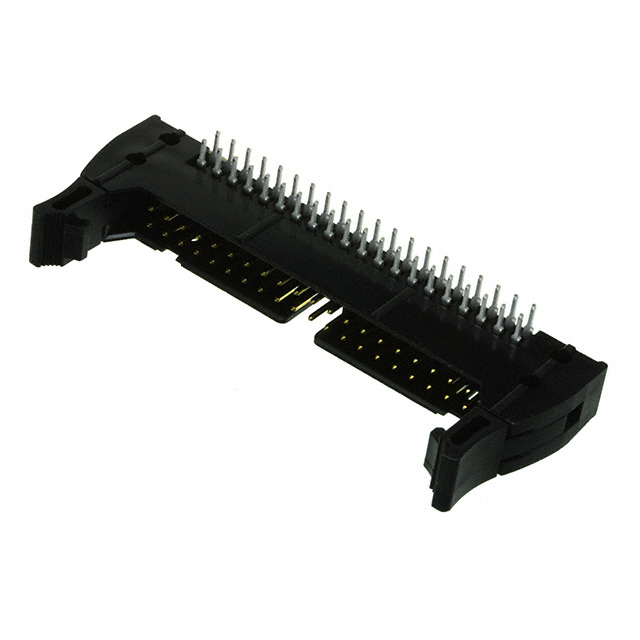

The primary substitute XG4A-4034 represents the active production equivalent within the XG4 series, maintaining electrical and mechanical compatibility while offering continued availability.
Parameter Comparison
| Parameter | XG4A-4034-8 | XG4A-4034 (Substitute) |
|---|---|---|
| Manufacturer Part Number | XG4A-4034-8 | XG4A-4034 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Category | Rectangular Connectors | Rectangular Connectors |
| Series | XG4 | XG4 |
| Product Status | Last Time Buy | Active |
| Connector Type | Header | Header |
| Contact Type | - | Male Pin |
| Pitch - Mating | - | 0.100" (2.54mm) |
| Number of Positions | - | 40 |
| Number of Rows | - | 2 |
| Row Spacing - Mating | - | 0.100" (2.54mm) |
| Mounting Type | - | Through Hole, Right Angle |
| Termination | - | Solder |
| Shrouding | - | Shrouded - 4 Wall |
| Contact Finish - Mating | - | Gold |
| Contact Finish - Post | - | Tin |
| Contact Material | - | Brass, Nickel |
| Insulation Material | - | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | - | -55°C ~ 105°C |
| Current Rating (Amps) | - | 3A |
| Voltage Rating | - | 300V |
| Material Flammability Rating | - | UL94 V-0 |
| RoHS Status | - | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | - | 1 (Unlimited) |
| Packaging | - | Tray |
| Inventory Status | 728 Pcs New Original In Stock | 1254 Pcs New Original In Stock |
Engineering Selection Recommendations
The XG4A-4034 is the designated manufacturer-recommended substitute for the XG4A-4034-8. Selection of this substitute is supported by the following factors:
- Active Production Status: The XG4A-4034 maintains active product status, ensuring long-term availability and supply chain continuity
- Series Alignment: Both connectors belong to the Omron XG4 series, maintaining design compatibility within established connector ecosystems
- Compliance Certifications: The substitute part carries RoHS compliance and UL94 V-0 flammability rating, meeting current regulatory requirements
- Inventory Availability: The substitute part demonstrates higher inventory levels (1254 Pcs) compared to the discontinued part (728 Pcs), supporting procurement reliability
- Electrical and Mechanical Specifications: The substitute maintains consistent electrical ratings (3A, 300V) and mechanical configuration (40-position, 2.54mm pitch, through-hole right-angle mounting)
Frequently Asked Questions (FAQ)
Q: Can XG4A-4034 directly replace XG4A-4034-8 in existing applications?
A: Yes. Both connectors share the same series designation (XG4), connector type (header), pitch specification (0.100" / 2.54mm), position count (40), and mounting configuration (through-hole, right-angle). The XG4A-4034 is the manufacturer-recommended substitute.
Q: What is the difference between XG4A-4034-8 and XG4A-4034?
A: The XG4A-4034-8 is designated Last Time Buy and is no longer in active production. The XG4A-4034 is the active production equivalent within the XG4 series, offering identical electrical and mechanical specifications with continued manufacturing support.
Q: Are there packaging differences between these parts?
A: The XG4A-4034 is supplied in Tray packaging. Packaging specifications for the XG4A-4034-8 were not provided in the technical documentation.
Q: Does the substitute part meet current compliance standards?
A: Yes. The XG4A-4034 is RoHS Compliant and carries a UL94 V-0 material flammability rating, meeting current regulatory requirements for electronic component applications.
Q: What is the moisture sensitivity level of the substitute part?
A: The XG4A-4034 carries MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
