XG4A-1034-8 Equivalent & Substitute Parts

Part Overview

The XG4A-1034-8 is a rectangular connector header manufactured by Omron Electronics Inc-EMC Div, classified as a connector header position component. This part is designated as Last Time Buy, indicating it is no longer in active production. Due to its discontinued status, identifying equivalent substitute parts is essential for design continuity, procurement planning, and system maintenance. The primary substitute maintains functional compatibility while offering active product status and improved availability.

Substiute Parts

XG4A-1034-8

Omron Electronics Inc-EMC DivIn Stock: 746XG4A-1034-8 Datasheet

Current PartRFQ

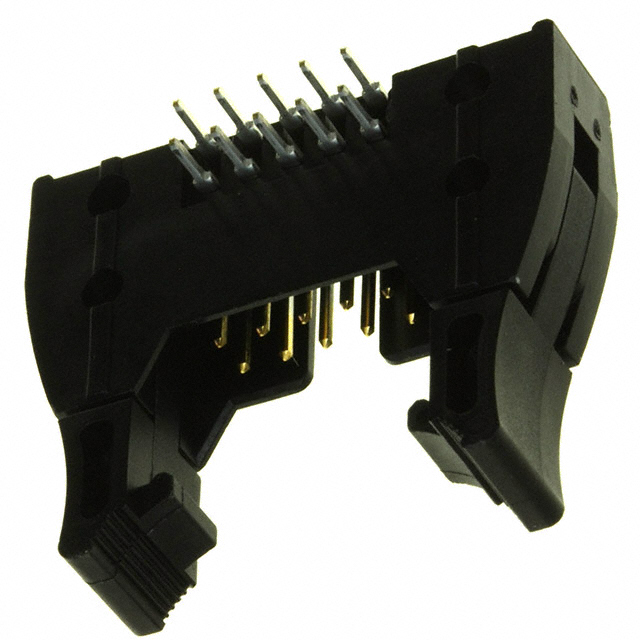

XG4A-1034

Omron Electronics Inc-EMC DivIn Stock: 8253XG4A-1034 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the XG4A-1034-8 is determined by the following parameters:

• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 10
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Shrouding: Shrouded - 4 Wall

The XG4A-1034 qualifies as a direct substitute based on matching electrical and mechanical specifications within the XG4 series. Both parts share identical contact configuration, pitch spacing, mounting orientation, and termination method, ensuring mechanical and electrical interchangeability in applications designed for the XG4A-1034-8.

Parameter Comparison

Engineering Selection Recommendations

The XG4A-1034 is the designated substitute for the XG4A-1034-8 based on the following criteria:

• Active product status ensures ongoing availability and supply chain continuity
• Identical mechanical and electrical specifications guarantee direct interchangeability
• ROHS3 compliance and MSL Level 1 rating meet modern environmental and handling standards
• Higher documented inventory (8221 Pcs) provides procurement reliability
• Packaging in Tray format supports standard component handling and assembly processes

Selection of the XG4A-1034 eliminates obsolescence risk while maintaining full functional compatibility with existing designs and PCB layouts.

Frequently Asked Questions (FAQ)

Q: Can the XG4A-1034 be used as a direct replacement for the XG4A-1034-8?

A: Yes. Both parts share identical connector type, contact configuration, pitch spacing (0.100" / 2.54mm), number of positions (10), row arrangement (2 rows), mounting orientation (Through Hole, Right Angle), and termination method (Solder). They are mechanically and electrically interchangeable.

Q: Why is the XG4A-1034-8 designated as Last Time Buy?

A: Last Time Buy status indicates the manufacturer has discontinued production. This designation signals the final opportunity to purchase existing inventory before the part becomes unavailable. Transition to the XG4A-1034 is recommended for new designs and ongoing production.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is based on matching: connector type (Header), contact type (Male Pin), pitch spacing (0.100" / 2.54mm), position count (10), row configuration (2 rows), mounting type (Through Hole, Right Angle), termination method (Solder), and shrouding style (Shrouded - 4 Wall).

Q: Does the XG4A-1034 meet current compliance standards?

A: Yes. The XG4A-1034 is ROHS3 compliant and carries MSL Level 1 (Unlimited) moisture sensitivity rating, meeting current environmental and handling requirements.

Q: What is the packaging difference between these parts?

A: The XG4A-1034-8 packaging is not specified in available data. The XG4A-1034 is supplied in Tray packaging, which is standard for component handling and automated assembly processes.

Q: Is there a difference in electrical ratings?

A: The XG4A-1034 is rated for 3A current and 300V voltage. The XG4A-1034-8 electrical ratings are not documented in available specifications.
