XF3M19151B FFC/FPC Connector - Equivalent & Substitute Parts

Part Overview

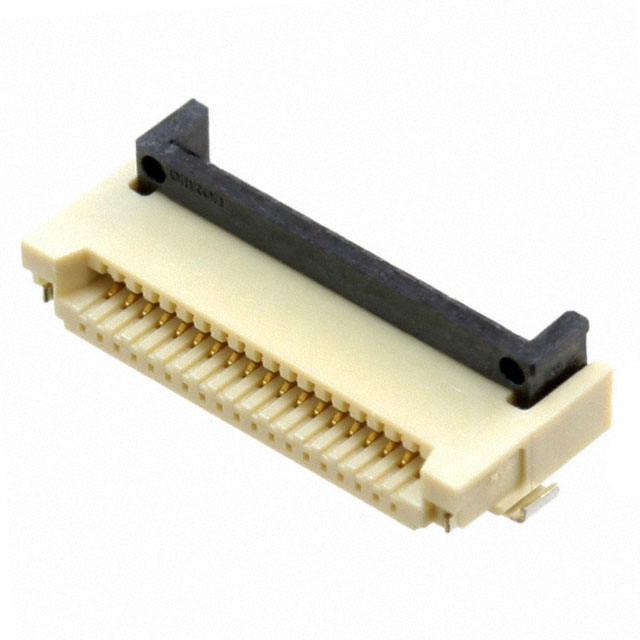

The XF3M19151B is a 19-position FFC/FPC connector manufactured by Omron Electronics Inc-EMC Div, designed for surface mount, right-angle applications with 0.5mm pitch contacts. This connector features top and bottom contacts with solder termination, rotary lock and backlock mechanisms, and is rated for 50V and 0.5A operation across -30°C to 85°C.

The XF3M19151B is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for systems utilizing this connector.

Substiute Parts

XF3M19151B

Omron Electronics Inc-EMC DivIn Stock: 1072XF3M19151B Datasheet

Current PartRFQ

XF3M-1915-1B

Omron Electronics Inc-EMC DivIn Stock: 2171XF3M-1915-1B Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the XF3M19151B is determined by strict parametric equivalence across all critical dimensions and electrical characteristics. The following parameters must match identically for a part to function as a direct substitute:

• 19-position connector configuration
• 0.5mm (0.020") pitch spacing
• Surface mount, right-angle orientation
• Top and bottom contact arrangement
• Solder termination method
• 0.30mm FFC/FCB thickness tolerance
• 2.00mm height above board
• Rotary lock and backlock mechanisms
• Tapered cable end type
• Copper alloy contacts with gold flash finish
• Halogen-free LCP housing and actuator materials
• 50V voltage rating
• 0.5A current rating
• -30°C to 85°C operating temperature range
• UL94 V-0 flammability classification
• 20 mating cycle rating
• MSL 1 moisture sensitivity level

Parameter Comparison

Engineering Selection Recommendations

The XF3M-1915-1B is a direct parametric equivalent to the XF3M19151B across all critical electrical, mechanical, and material specifications. All 20 core functional parameters match identically, confirming functional interchangeability.

The primary distinction is product status: XF3M19151B is obsolete while XF3M-1915-1B is active. The substitute part is RoHS compliant and available in Tape & Reel packaging, providing improved supply chain continuity and compliance with current environmental regulations. The substitute part maintains identical performance characteristics, ratings, and material composition.

Selection of XF3M-1915-1B is appropriate for new designs, production continuity, and replacement applications where the obsolete XF3M19151B is no longer available through standard distribution channels.

Frequently Asked Questions (FAQ)

Q: Are XF3M19151B and XF3M-1915-1B mechanically interchangeable?

A: Yes. Both connectors share identical mechanical specifications including 19-position configuration, 0.5mm pitch, surface mount right-angle orientation, 2.00mm height above board, and tapered cable end type. PCB footprints and mating interfaces are identical.

Q: Are the electrical ratings identical?

A: Yes. Both parts are rated for 50V, 0.5A, and operate across -30°C to 85°C. Contact material, finish, and locking mechanisms are identical.

Q: What is the difference in packaging?

A: XF3M19151B is supplied in bulk packaging. XF3M-1915-1B is supplied in Tape & Reel (TR) format, which is standard for automated assembly processes and provides better component protection during handling and storage.

Q: Is XF3M-1915-1B RoHS compliant?

A: Yes. XF3M-1915-1B is RoHS compliant. Both parts use halogen-free LCP materials and meet UL94 V-0 flammability requirements.

Q: Can I use XF3M-1915-1B as a direct replacement in existing designs?

A: Yes. All parametric specifications are identical. No design modifications are required. The substitute part is functionally and mechanically equivalent.

Q: Why is XF3M19151B obsolete?

A: Product obsolescence is determined by manufacturer lifecycle decisions. XF3M-1915-1B represents the active equivalent in the XF3M series and is the recommended source for ongoing supply.
