XF3M18151B FFC/FPC Connector - Equivalent & Substitute Parts

Part Overview

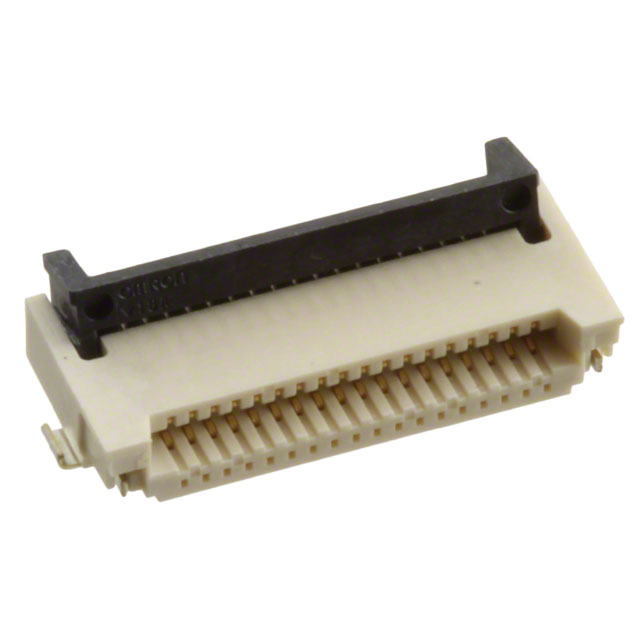

The XF3M18151B is an 18-position FFC/FPC connector manufactured by Omron Electronics Inc-EMC Div, designed for surface mount, right-angle applications with 0.5mm pitch contacts. This connector features top and bottom contacts with solder termination, rotary lock and backlock mechanisms, and is rated for 50V and 0.5A operation across -30°C to 85°C.

The XF3M18151B is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for systems utilizing this connector.

Key Parameters

Parameter	Value
Connector Type	FFC, FPC
Number of Positions	18
Pitch	0.020" (0.50mm)
Mounting Type	Surface Mount, Right Angle
Contact Configuration	Contacts, Top and Bottom
Termination	Solder
FFC/FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Rotary Lock, Backlock
Voltage Rating	50V
Current Rating	0.5A
Operating Temperature	-30°C ~ 85°C
Material Flammability	UL94 V-0
Mating Cycles	20

Substitute Part Grouping Explanation

Substitute parts for the XF3M18151B are identified based on strict parametric equivalence. The following parameters define substitution eligibility:

Connector Type: FFC, FPC (flat flexible connectors)
Position Count: 18 positions
Pitch: 0.020" (0.50mm)
Mounting Configuration: Surface mount, right-angle orientation
Contact Arrangement: Top and bottom contacts
Termination Method: Solder
Mechanical Dimensions: FFC/FCB thickness 0.30mm, height above board 0.079" (2.00mm)
Electrical Ratings: 50V voltage, 0.5A current capacity
Operating Range: -30°C to 85°C
Locking Mechanism: Rotary lock with backlock feature
Material Compliance: UL94 V-0 flammability rating

Parts meeting all these parameters are classified as parametric equivalents and direct substitutes.

Parameter Comparison

Parameter	XF3M18151B (Main Part)	XF3M-1815-1B (Substitute)
Manufacturer	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Series	XF3M	XF3M
Connector Type	FFC, FPC	FFC, FPC
Number of Positions	18	18
Pitch	0.020" (0.50mm)	0.020" (0.50mm)
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Contact Configuration	Contacts, Top and Bottom	Contacts, Top and Bottom
Termination	Solder	Solder
FFC/FCB Thickness	0.30mm	0.30mm
Height Above Board	0.079" (2.00mm)	0.079" (2.00mm)
Locking Feature	Rotary Lock, Backlock	Rotary Lock, Backlock
Voltage Rating	50V	50V
Current Rating	0.5A	0.5A
Operating Temperature	-30°C ~ 85°C	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	20	20
Product Status	Obsolete	Active
RoHS Status	Not specified	RoHS Compliant

Engineering Selection Recommendations

The XF3M-1815-1B is a direct parametric equivalent to the XF3M18151B. Both connectors share identical electrical, mechanical, and dimensional specifications within the XF3M series.

The primary distinction is product status: XF3M18151B is obsolete, while XF3M-1815-1B is active. The substitute part carries RoHS compliance certification, meeting current regulatory requirements for electronic component manufacturing and distribution.

For new designs or ongoing production requiring the XF3M18151B specification, XF3M-1815-1B is the appropriate selection. The active status and RoHS compliance of the substitute part ensure long-term supply chain viability and regulatory alignment.

Frequently Asked Questions (FAQ)

Q: Can XF3M-1815-1B be used as a direct replacement for XF3M18151B?

A: Yes. Both parts are parametrically equivalent across all electrical, mechanical, and dimensional specifications. They share identical pitch (0.5mm), position count (18), mounting configuration (surface mount, right angle), voltage rating (50V), current rating (0.5A), operating temperature range (-30°C to 85°C), and locking mechanisms (rotary lock with backlock).

Q: What is the difference between these two part numbers?

A: The primary differences are product status and packaging. XF3M18151B is obsolete with unspecified packaging, while XF3M-1815-1B is active and supplied in Tape & Reel (TR) format. XF3M-1815-1B also carries RoHS compliance certification.

Q: Are there any compatibility concerns when substituting XF3M-1815-1B for XF3M18151B?

A: No compatibility concerns exist. The connectors are mechanically and electrically interchangeable. Both feature identical contact materials (copper alloy with gold finish), housing materials (halogen-free LCP), and mechanical retention features (solder retention with rotary lock and backlock).

Q: Does packaging format affect the substitution?

A: Packaging format does not affect connector performance or compatibility. XF3M-1815-1B is supplied in Tape & Reel format, which is standard for production environments. This format does not impact electrical or mechanical function.

Q: Is RoHS compliance a requirement for substitution?

A: RoHS compliance is not a substitution requirement but represents a regulatory advantage. XF3M-1815-1B's RoHS compliance ensures compliance with current environmental and regulatory standards, making it the preferred choice for new applications and ongoing production.
