XBP24-API-001 Equivalent & Substitute Parts

Part Overview

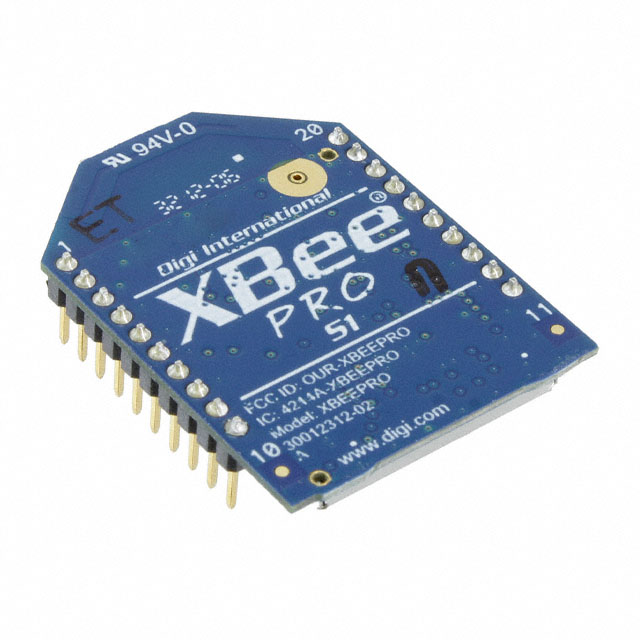

The XBP24-API-001 is an 802.15.4 transceiver module manufactured by Digi, part of the XBee-Pro® 802.15.4 series. This module integrates a 2.4GHz RF transceiver with trace antenna and through-hole mounting, designed for wireless communication applications requiring IEEE 802.15.4 compliance. The product is currently obsolete, making identification of compatible substitute components essential for system redesign, maintenance, and new production alternatives.

Substiute Parts

XBP24-API-001

DigiIn Stock: 768XBP24-API-001 Datasheet

Current PartRFQ

XB3-24Z8PT

DigiIn Stock: 5995XB3-24Z8PT Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the XBP24-API-001 is determined by the following critical parameters:

• RF Standard: 802.15.4 compliance is mandatory
• Frequency Band: 2.4GHz operation
• Data Rate: 250kbps minimum
• Mounting Type: Through Hole configuration
• Antenna Configuration: Integrated trace antenna
• Supply Voltage Range: Compatibility with system power requirements
• Serial Interface: UART support for host communication
• Operating Temperature Range: -40°C ~ 85°C

The XB3-24Z8PT qualifies as a direct substitute based on matching all critical parameters while offering enhanced performance characteristics and active product status.

Parameter Comparison

Engineering Selection Recommendations

The XB3-24Z8PT is the qualified substitute for the obsolete XBP24-API-001. Selection is based on the following engineering criteria:

• Both modules maintain identical 802.15.4 RF standard compliance and 2.4GHz frequency operation
• The XB3-24Z8PT is an active product with verified Digi programmability, ensuring long-term availability and support
• Electrical parameters are fully compatible: supply voltage range is expanded (2.1V ~ 3.6V), and current consumption is reduced in both receive (15mA vs 55mA) and transmit (135mA vs 215mA) modes
• RF performance is enhanced: output power increased to 19dBm and sensitivity improved to -103dBm
• Through-hole mounting and integrated trace antenna configurations are identical
• Serial interface compatibility is maintained with UART support, supplemented by I2C and SPI options
• Operating temperature range remains -40°C ~ 85°C
• RoHS compliance status is verified for the XB3-24Z8PT

Frequently Asked Questions (FAQ)

Q: Can the XB3-24Z8PT directly replace the XBP24-API-001 in existing designs?

A: Yes. Both modules share identical 802.15.4 RF standard, 2.4GHz frequency, 250kbps data rate, through-hole mounting, and integrated trace antenna configuration. UART serial interface is supported on both modules. The XB3-24Z8PT offers enhanced performance with lower power consumption and improved RF sensitivity.

Q: What are the key differences between these modules?

A: The XB3-24Z8PT provides enhanced specifications: 1dBm higher output power, 3dBm improved sensitivity, 40mA lower receive current, 80mA lower transmit current, and expanded supply voltage range (2.1V ~ 3.6V vs 2.8V ~ 3.4V). Additional serial interfaces (I2C, SPI) are available on the XB3-24Z8PT. The XB3-24Z8PT is an active product with RoHS compliance verification.

Q: Are there packaging differences?

A: The XBP24-API-001 uses standard through-hole packaging. The XB3-24Z8PT is supplied in tray packaging. Both modules maintain identical through-hole mounting configuration and form factor compatibility.

Q: What is the supply voltage compatibility?

A: The XBP24-API-001 requires 2.8V ~ 3.4V. The XB3-24Z8PT accepts 2.1V ~ 3.6V, providing a wider operating range. Systems designed for the original module voltage range are fully compatible with the substitute.

Q: Is firmware or software modification required for substitution?

A: The XB3-24Z8PT maintains UART serial interface compatibility with the XBP24-API-001. Both modules support 802.15.4 protocol operation. Verification of application-specific firmware compatibility with the XBee® 3 Zigbee® 3 platform is required based on individual system requirements.
