WR19AS/V Equivalent & Substitute Parts

Part Overview

The WR19AS/V is a rocker switch manufactured by NKK Switches, classified as SPDT (Single Pole Double Throw) with a 15A rating at 125V AC. This panel-mount, snap-in switch features a concave black actuator with solder lug termination and IP67 ingress protection. The WR19AS/V is currently listed as obsolete, making identification of equivalent and substitute parts essential for ongoing maintenance, repair, and design continuity in applications requiring SPDT rocker switch functionality.

Substiute Parts

WR19AS/V

NKK SwitchesIn Stock: 922WR19AS/V Datasheet

Current PartRFQ

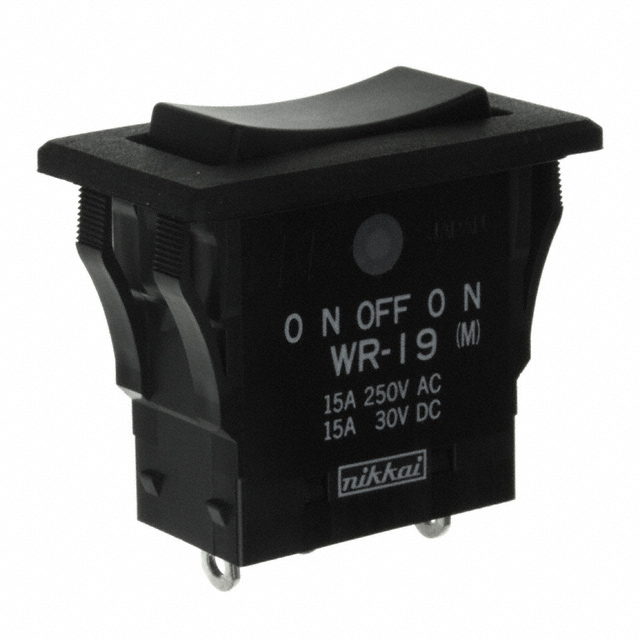

WR19AS

NKK SwitchesIn Stock: 1240WR19AS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the WR19AS/V is determined by strict equivalence across the following critical parameters:

• Circuit Configuration: SPDT topology must be maintained
• Current and Voltage Ratings: 15A (AC/DC) at 125V AC and 30V DC
• Mounting Specification: Panel mount with snap-in installation
• Actuator Characteristics: Concave curved profile in black
• Termination Method: Solder lug connections
• Environmental Protection: IP67 rating with epoxy sealed terminals
• Mechanical and Electrical Life: 30,000 mechanical cycles and 10,000 electrical cycles
• Panel Cutout Compatibility: Rectangular 34.20mm x 17.20mm opening

The WR19AS (bulk packaging variant) qualifies as a direct substitute based on identical electrical specifications, mechanical configuration, and environmental protection ratings.

Parameter Comparison

Engineering Selection Recommendations

The WR19AS serves as the direct substitute for the obsolete WR19AS/V. Both parts are manufactured by NKK Switches and maintain identical electrical, mechanical, and environmental specifications. The primary distinction is product status: WR19AS/V is obsolete while WR19AS is active and currently in production.

Selection of WR19AS is supported by:

• Regulatory Compliance: Both parts carry EN and UL approvals
• Active Production Status: WR19AS is actively manufactured, ensuring supply chain continuity
• RoHS3 Compliance: WR19AS meets RoHS3 requirements
• Identical Functional Parameters: No electrical or mechanical compromises in substitution
• Inventory Availability: WR19AS maintains higher stock levels (1139 pcs vs. 885 pcs)

For applications currently using WR19AS/V, transition to WR19AS presents no functional or compliance risks.

Frequently Asked Questions (FAQ)

Q: Can WR19AS directly replace WR19AS/V in existing designs?

A: Yes. WR19AS is a direct equivalent with identical circuit configuration (SPDT), current rating (15A AC/DC), voltage specifications (125V AC, 30V DC), mounting type (panel mount, snap-in), actuator profile (concave black), termination method (solder lug), ingress protection (IP67), and mechanical/electrical life ratings. Panel cutout dimensions are identical at 34.20mm x 17.20mm.

Q: What is the difference between WR19AS/V and WR19AS?

A: The primary difference is product status and packaging. WR19AS/V is obsolete, while WR19AS is active. WR19AS is supplied in bulk packaging, whereas WR19AS/V was supplied with different packaging specifications. All electrical and mechanical specifications are identical.

Q: Are there any compliance or certification differences?

A: Both parts carry identical approvals (EN, UL). WR19AS additionally carries RoHS3 compliance certification, which is advantageous for modern applications subject to RoHS regulations.

Q: Is the panel cutout dimension identical for both parts?

A: Yes. Both WR19AS/V and WR19AS require a rectangular panel opening of 34.20mm x 17.20mm, ensuring mechanical compatibility without panel modification.

Q: What is the operating temperature range for these switches?

A: Both parts operate across -25°C to 85°C, suitable for industrial and commercial applications within this thermal envelope.

Q: How many mechanical and electrical cycles are rated for these switches?

A: Both parts are rated for 30,000 mechanical cycles and 10,000 electrical cycles, providing equivalent service life expectations.
