WR13AL/V Equivalent & Substitute Parts

Part Overview

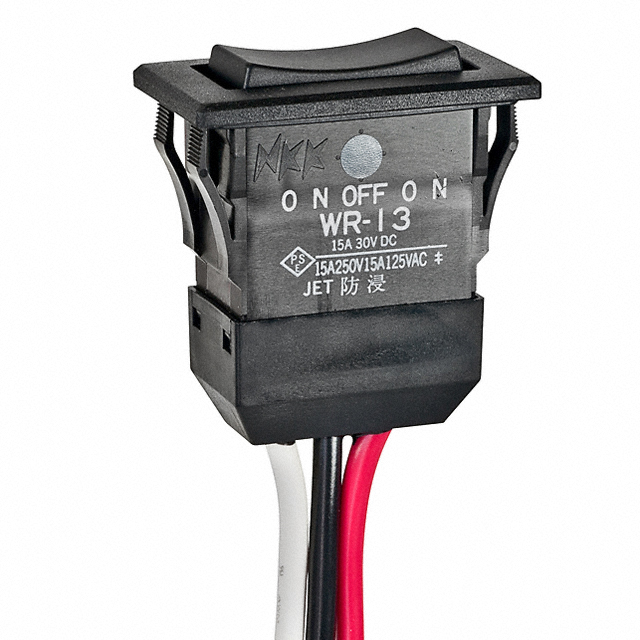

The WR13AL/V is a rocker switch manufactured by NKK Switches, classified as SPDT (Single Pole Double Throw) with On-Off-On functionality. This panel-mount, snap-in switch is rated for 15A at 125V AC and 30V DC, featuring a concave black actuator and IP67 ingress protection. The WR13AL/V is currently listed as obsolete, making identification of equivalent and substitute parts essential for ongoing maintenance, repair, and system continuity in applications requiring SPDT rocker switch functionality with these electrical and mechanical specifications.

Substiute Parts

WR13AL/V

NKK SwitchesIn Stock: 853WR13AL/V Datasheet

Current PartRFQ

WR13AL

NKK SwitchesIn Stock: 490037WR13AL Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the WR13AL/V is determined by strict equivalence across the following critical parameters:

• Circuit configuration: SPDT only
• Switch function: On-Off-On operation
• Current rating: 15A (AC/DC)
• Voltage ratings: 125V AC minimum, 30V DC minimum
• Mounting type: Panel Mount, Snap-In
• Panel cutout dimensions: Rectangular 34.20mm x 17.20mm
• Actuator type: Concave (Curved)
• Actuator color: Black
• Termination style: Wire Leads
• Ingress protection: IP67 minimum
• Operating temperature range: -25°C to 85°C minimum
• Mechanical life: 30,000 cycles minimum
• Electrical life: 10,000 cycles minimum
• Approval agencies: EN and UL certification required

The direct substitute WR13AL meets all these criteria and is the equivalent part for the obsolete WR13AL/V.

Parameter Comparison

Engineering Selection Recommendations

The WR13AL is the direct equivalent substitute for the obsolete WR13AL/V. Both parts are manufactured by NKK Switches and share identical electrical and mechanical specifications across all critical parameters. The WR13AL maintains active product status with significantly higher inventory availability (490,011 pieces in stock versus 819 pieces for the WR13AL/V).

The WR13AL provides additional compliance advantages: it carries ROHS3 compliance certification and REACH unaffected status, meeting current environmental and regulatory requirements. Both parts maintain EN and UL approvals, ensuring continued compliance in regulated applications.

For new designs or replacement applications requiring SPDT rocker switch functionality at 15A/125V AC with panel-mount snap-in installation, the WR13AL is the appropriate selection. The electrical and mechanical performance characteristics remain identical to the obsolete WR13AL/V, ensuring functional compatibility in existing circuit designs.

Frequently Asked Questions (FAQ)

Q: Can the WR13AL directly replace the WR13AL/V without circuit modifications?

A: Yes. The WR13AL is electrically and mechanically equivalent to the WR13AL/V across all specified parameters. No circuit modifications are required. Both parts feature identical SPDT configuration, 15A/125V AC ratings, panel cutout dimensions, and termination style.

Q: What is the difference between WR13AL/V and WR13AL?

A: The WR13AL/V is obsolete, while the WR13AL is active. The electrical and mechanical specifications are identical. The WR13AL includes ROHS3 compliance and REACH unaffected status, reflecting current environmental standards.

Q: Are the panel cutout dimensions identical between these parts?

A: Yes. Both the WR13AL/V and WR13AL require a rectangular panel cutout of 34.20mm x 17.20mm. No mechanical modification to existing panel installations is necessary.

Q: What packaging options are available for the WR13AL?

A: The WR13AL is available in bulk packaging. The WR13AL/V was supplied with unspecified packaging. Confirm packaging requirements with your procurement specifications.

Q: Do both parts meet the same regulatory approvals?

A: Yes. Both the WR13AL/V and WR13AL carry EN and UL approvals. The WR13AL additionally meets ROHS3 compliance and REACH unaffected requirements.

Q: What is the mechanical and electrical life expectancy?

A: Both parts are rated for 30,000 mechanical cycles and 10,000 electrical cycles under specified operating conditions (-25°C to 85°C).
