WR13AF/V Equivalent & Substitute Parts

Part Overview

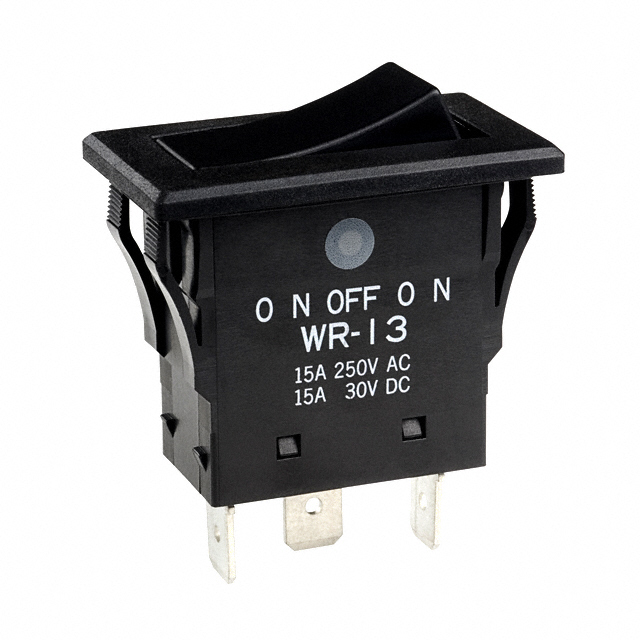

The WR13AF/V is a rocker switch manufactured by NKK Switches, classified as SPDT (Single Pole Double Throw) with a 15A AC/DC rating at 125V AC and 30V DC. This panel-mount, snap-in switch features a concave black actuator with quick connect 0.250" (6.3mm) termination and IP67 ingress protection. The WR13AF/V is currently listed as obsolete, making identification of equivalent and substitute parts essential for ongoing maintenance, repair, and system continuity in applications requiring SPDT rocker switch functionality.

Substiute Parts

WR13AF/V

NKK SwitchesIn Stock: 1091WR13AF/V Datasheet

Current PartRFQ

WR13AF

NKK SwitchesIn Stock: 174203WR13AF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the WR13AF/V is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following areas:

Circuit configuration (SPDT), switch function (On-Off-On), current rating (15A AC/DC), voltage ratings (125V AC / 30V DC), mounting type (Panel Mount, Snap-In), termination style (Quick Connect - 0.250"), actuator type (Concave), ingress protection (IP67), panel cutout dimensions (34.20mm x 17.20mm), operating temperature range (-25°C to 85°C), mechanical life (30,000 cycles), and electrical life (10,000 cycles).

The WR13AF part number in bulk packaging represents a direct equivalent to the WR13AF/V, sharing all electrical and mechanical specifications while differing only in product status (Active vs. Obsolete) and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The WR13AF in bulk packaging is the direct equivalent for the obsolete WR13AF/V. Both parts are manufactured by NKK Switches and maintain identical electrical and mechanical specifications. The WR13AF offers the advantage of active product status, ensuring continued availability and supply chain reliability. Additionally, the WR13AF carries ROHS3 compliance certification, meeting current environmental and regulatory standards for electronic component manufacturing.

For applications requiring the WR13AF/V, the WR13AF provides full functional and physical compatibility with no design modifications necessary. The transition from the obsolete variant to the active bulk-packaged equivalent ensures compliance with modern procurement standards while maintaining all performance characteristics required for the original application.

Frequently Asked Questions (FAQ)

Q: Can the WR13AF be used as a direct replacement for the WR13AF/V?

A: Yes. Both parts share identical electrical ratings (15A AC/DC, 125V AC, 30V DC), circuit configuration (SPDT), mounting specifications (Panel Mount, Snap-In), termination style (Quick Connect - 0.250"), and mechanical characteristics (30,000 cycle mechanical life, 10,000 cycle electrical life). Physical dimensions and panel cutout requirements are identical at 34.20mm x 17.20mm.

Q: What is the difference between the WR13AF/V and WR13AF?

A: The primary differences are product status and packaging. The WR13AF/V is obsolete, while the WR13AF is active. The WR13AF is supplied in bulk packaging and carries ROHS3 compliance certification. All functional and electrical specifications remain identical.

Q: Are there any compatibility concerns when switching from WR13AF/V to WR13AF?

A: No compatibility concerns exist. The WR13AF maintains the same panel cutout dimensions (34.20mm x 17.20mm), quick connect termination (0.250"), and actuator specifications (concave, black). No circuit board modifications or mechanical adjustments are required.

Q: Does the WR13AF meet current regulatory requirements?

A: Yes. The WR13AF is ROHS3 compliant and maintains EN and UL approvals. It meets current environmental and safety standards for electronic component applications.

Q: What is the operating temperature range for the WR13AF?

A: The operating temperature range is -25°C to 85°C, identical to the WR13AF/V.
