Equivalent & Substitute Parts for WP2060ID

Part Overview

The WP2060ID is an active-status red diffused LED indication component manufactured by Kingbright, designed for through-hole mounting applications. This radial lead LED operates at 2V forward voltage with a 20mA test current and delivers 15 millicandela brightness at a 625nm dominant wavelength. The component is housed in a compact radial package with a 1.80mm diameter domed lens and is ROHS3 compliant with unlimited moisture sensitivity rating.

Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and regulatory compliance can be maintained across different manufacturers or product variants within the same category.

Substiute Parts

WP2060ID

KingbrightIn Stock: 2189WP2060ID Datasheet

Current PartRFQ

WP4060ID

KingbrightIn Stock: 3010WP4060ID Datasheet

DirectRFQ

5219630F

DialightIn Stock: 40875219630F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the WP2060ID is determined by strict alignment of the following critical parameters:

Electrical Compatibility Requirements:

• Forward voltage (Vf) must be 2V nominal
• Test current must be compatible with 20mA operation
• Wavelength characteristics must support red spectrum indication (620nm–630nm range)

Mechanical Compatibility Requirements:

• Mounting type must be through-hole radial lead configuration
• Lens transparency must be diffused
• Package case must be radial
• Physical dimensions must accommodate standard PCB hole spacing

Regulatory & Compliance Requirements:

• ROHS3 compliance mandatory
• Moisture sensitivity level MSL 1 (unlimited) required
• REACH unaffected status required

Identified Substitutes:

WP4060ID (Kingbright): Meets all critical electrical and mechanical parameters. Forward voltage 2V, test current 20mA, radial through-hole mounting, diffused lens. Wavelength dominant 617nm falls within acceptable red spectrum range. Height variance (4.10mm vs. 3.10mm) is within typical PCB clearance tolerances for through-hole applications. ROHS3 and MSL 1 compliant.

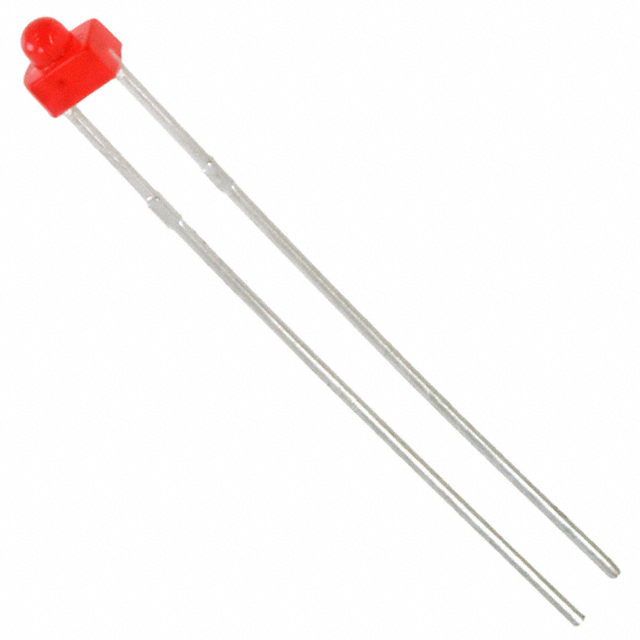

5219630F (Dialight 521 Series): Meets all critical electrical and mechanical parameters. Forward voltage 2V, radial through-hole mounting, diffused lens, 70° viewing angle. Test current 10mA is lower than WP2060ID but operates within the same voltage class. Millicandela rating 15mcd matches primary part. Wavelength peak 627nm within red spectrum. ROHS3 and MSL 1 compliant. Lens size 2.00mm (vs. 1.80mm) represents minor mechanical variation acceptable for indication applications.

Parameter Comparison

Engineering Selection Recommendations

WP4060ID Selection Criteria: WP4060ID is suitable as a direct substitute when brightness reduction from 15mcd to 8mcd is acceptable for the application. Both parts share identical forward voltage, test current, and viewing angle specifications. The 1mm height increase (4.10mm vs. 3.10mm) requires verification of available PCB clearance in the target assembly. This substitute maintains full ROHS3 and MSL 1 compliance. Selection is appropriate for applications where Kingbright component continuity is preferred and lower brightness output does not compromise functional requirements.

5219630F Selection Criteria: 5219630F is suitable as a cross-manufacturer substitute when brightness matching (15mcd) is required and test current reduction from 20mA to 10mA is compatible with circuit design. The 2.00mm lens diameter (vs. 1.80mm) represents a minor mechanical variation typical in indication LED applications. Height specification 3.35mm falls between the two Kingbright variants. This substitute maintains full ROHS3 and MSL 1 compliance and provides Dialight 521 Series availability. Selection is appropriate for applications requiring multi-source component qualification or when Dialight inventory availability is prioritized.

Compliance Verification: All three parts maintain active product status, ROHS3 compliance, MSL 1 rating, and REACH unaffected status. No additional regulatory assessment is required for substitution within these parameters.

Frequently Asked Questions (FAQ)

Q: Can WP4060ID replace WP2060ID in a brightness-critical application?

A: WP4060ID operates at 8mcd versus WP2060ID's 15mcd. Substitution is only valid if the application circuit design accommodates reduced brightness output. Both parts share identical 2V forward voltage and 20mA test current, ensuring electrical compatibility. Verify brightness requirements against application specifications before selection.

Q: What is the impact of the 2.00mm lens size in 5219630F compared to 1.80mm in WP2060ID?

A: The 0.20mm lens diameter increase is a minor mechanical variation. For through-hole radial mount applications, this difference does not affect PCB hole compatibility or standard mounting procedures. Verify lens size against any mechanical constraints in the target assembly design.

Q: Are all three parts suitable for the same circuit without modification?

A: WP2060ID and WP4060ID are electrically identical (2V Vf, 20mA test current) and require no circuit modification for direct substitution. 5219630F operates at the same 2V forward voltage but with 10mA test current. Circuit modification is not required, but brightness output differs due to lower test current specification. Verify circuit design accommodates the brightness and current characteristics of the selected part.

Q: What are the key differences between WP2060ID and 5219630F?

A: Both parts deliver 15mcd brightness and operate at 2V forward voltage. Key differences are: manufacturer (Kingbright vs. Dialight), test current (20mA vs. 10mA), lens diameter (1.80mm vs. 2.00mm), and height (3.10mm vs. 3.35mm). All differences are within acceptable ranges for indication LED applications. Selection depends on manufacturer preference, inventory availability, and circuit current specifications.

Q: Are there any height clearance concerns with these substitutes?

A: WP2060ID maximum height is 3.10mm, WP4060ID is 4.10mm, and 5219630F is 3.35mm. The 1mm difference between WP2060ID and WP4060ID requires clearance verification in the target assembly. Standard through-hole PCB designs typically accommodate this variation. Confirm available vertical clearance before final part selection.

Q: Do all substitutes maintain the same regulatory compliance?

A: Yes. WP2060ID, WP4060ID, and 5219630F are all ROHS3 compliant, MSL 1 rated (unlimited moisture sensitivity), and REACH unaffected. No additional compliance assessment is required when substituting between these parts.
