WP1384AL/ID LED Circuit Board Indicator Equivalent & Substitute Parts

Part Overview

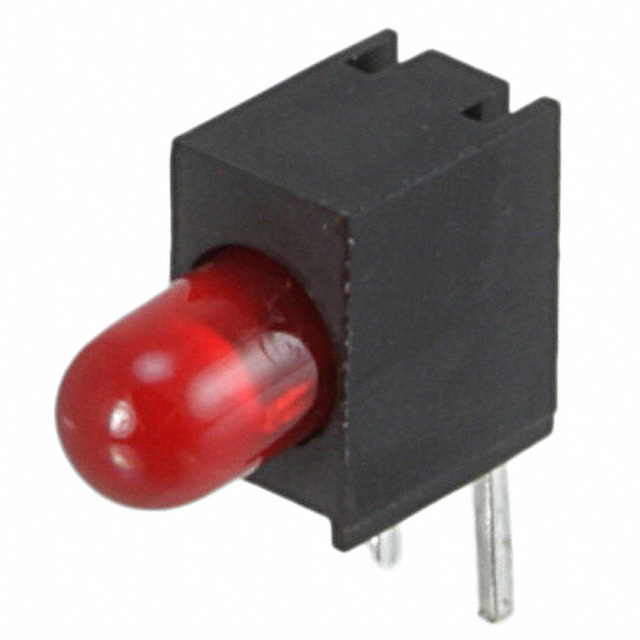

The WP1384AL/ID is an active, production-status LED Circuit Board Indicator manufactured by Kingbright. This component is a single red diffused LED with a 3.40mm domed lens, designed for through-hole right-angle mounting on circuit boards. The part operates at 2.2V with a 30mA current rating and delivers 32 millicandela at a 627nm peak wavelength with a 60° viewing angle.

Substitute parts are identified when inventory constraints, lead time requirements, or procurement preferences necessitate alternative sourcing while maintaining identical electrical and mechanical performance specifications.

Substiute Parts

WP1384AL/ID

KingbrightIn Stock: 879WP1384AL/ID Datasheet

Current PartRFQ

WP1384AD/ID

KingbrightIn Stock: 2525WP1384AD/ID Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the WP1384AL/ID are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution logic is based on the following criteria:

Electrical Parameters: Voltage rating (2.2V), current rating (30mA), wavelength (627nm), and luminous intensity (32mcd) must be identical.

Mechanical Parameters: Lens size (3.40mm diameter), lens style (round with domed top), lens type (diffused, tinted), and mounting configuration (through-hole, right-angle) must match exactly.

Compliance & Status: Product must maintain active status, ROHS3 compliance, and identical MSL rating.

The WP1384AD/ID meets all these criteria and is classified as a direct substitute.

Parameter Comparison

Engineering Selection Recommendations

Both WP1384AL/ID and WP1384AD/ID are active production components manufactured by Kingbright with identical electrical and mechanical specifications. Selection between these parts is based on availability and procurement requirements rather than technical performance differences.

WP1384AL/ID is suitable for applications where this specific part number is specified or preferred in design documentation.

WP1384AD/ID serves as a direct functional equivalent with higher current inventory availability (2442 pcs vs. 866 pcs), making it suitable for high-volume production runs or situations requiring expedited procurement.

Both parts maintain ROHS3 compliance and MSL Level 1 rating, confirming suitability for standard circuit board assembly processes without moisture sensitivity constraints.
