WAN07RSP 2.4GHz Whip RF Antenna Equivalent & Substitute Parts

Part Overview

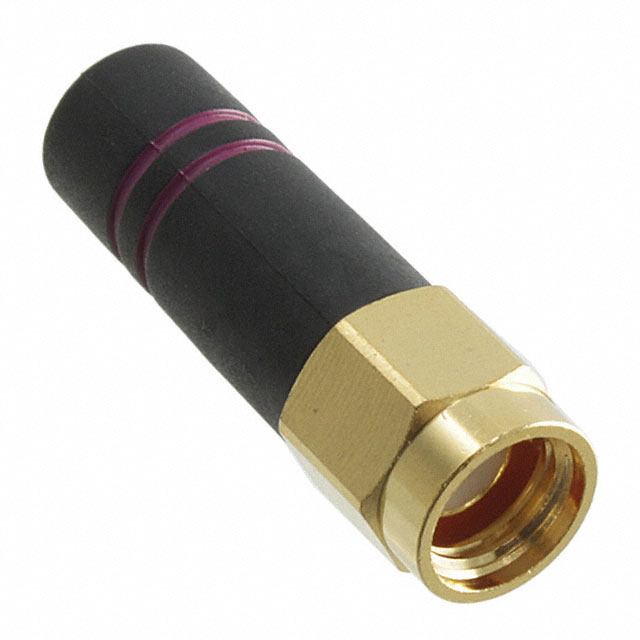

The WAN07RSP is a 2.4GHz whip-type straight RF antenna manufactured by Honeywell Sensing and Productivity Solutions, featuring a 0dBi gain and RP-SMA male connector mount. This component is classified as obsolete, making identification of functionally equivalent substitute parts essential for ongoing system design, maintenance, and procurement activities. The antenna is designed for UHF frequency applications within the 2.4GHz band and is RoHS compliant with MSL 1 rating.

Substiute Parts

WAN07RSP

Honeywell Sensing and Productivity SolutionsIn Stock: 1237WAN07RSP Datasheet

Current PartRFQ

DELTA20/X/SMAM/RP/S/35

Siretta LtdIn Stock: 850DELTA20/X/SMAM/RP/S/35 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the WAN07RSP is determined by strict alignment of the following electrical and mechanical parameters:

Primary Substitution Criteria:

• Frequency band operation at 2.4GHz
• Antenna type classification as whip, straight configuration
• Connector termination as RP-SMA male
• Mounting method as connector mount
• Single-band operation
• Gain specification of 0dBi
• RoHS compliance status

The substitute part DELTA20/X/SMAM/RP/S/35 manufactured by Siretta Ltd satisfies all primary substitution criteria. This part operates within the 2.4GHz ~ 2.5GHz frequency range, encompasses the 2.4GHz center frequency of the WAN07RSP, and maintains identical electrical and mechanical interface specifications. The DELTA20/X/SMAM/RP/S/35 is currently in active product status, ensuring ongoing availability and support.

Parameter Comparison

Engineering Selection Recommendations

The DELTA20/X/SMAM/RP/S/35 is a direct functional equivalent for the obsolete WAN07RSP based on the following engineering criteria:

Electrical Compatibility: Both antennas operate at 2.4GHz center frequency with identical 0dBi gain specifications and RP-SMA male connector termination. The DELTA20/X/SMAM/RP/S/35 specifies a 2.4GHz ~ 2.5GHz frequency range, which encompasses the WAN07RSP operating band.

Mechanical Compatibility: Both components feature whip, straight antenna configuration with connector mount installation. The DELTA20/X/SMAM/RP/S/35 height of 28.50mm is 1.50mm shorter than the WAN07RSP at 30.00mm, representing a negligible dimensional variance suitable for most applications.

Regulatory Compliance: Both parts maintain RoHS compliance status, satisfying environmental and regulatory requirements. The DELTA20/X/SMAM/RP/S/35 is currently in active product status, ensuring long-term availability and supply chain continuity compared to the obsolete WAN07RSP.

Product Status Advantage: Selection of the DELTA20/X/SMAM/RP/S/35 addresses the obsolescence of the WAN07RSP while maintaining full electrical and mechanical interface compatibility.

Frequently Asked Questions (FAQ)

Q: Can the DELTA20/X/SMAM/RP/S/35 be used as a direct replacement for the WAN07RSP?

A: Yes. Both antennas share identical electrical specifications (2.4GHz center frequency, 0dBi gain, RP-SMA male termination) and mechanical configuration (whip, straight type, connector mount). The DELTA20/X/SMAM/RP/S/35 is dimensionally compatible with a maximum height of 28.50mm compared to the WAN07RSP at 30.00mm.

Q: What is the primary reason for substitution?

A: The WAN07RSP is classified as obsolete. The DELTA20/X/SMAM/RP/S/35 is an active product offering equivalent performance with assured long-term availability.

Q: Are there any mechanical installation differences?

A: Both antennas use RP-SMA male connector mount installation. The DELTA20/X/SMAM/RP/S/35 is 1.50mm shorter in maximum height, which does not affect connector compatibility or mounting procedures.

Q: What is the VSWR specification for the WAN07RSP?

A: The VSWR specification is not provided in the WAN07RSP documentation. The DELTA20/X/SMAM/RP/S/35 specifies a VSWR of 2.

Q: Are both antennas RoHS compliant?

A: Yes. Both the WAN07RSP and DELTA20/X/SMAM/RP/S/35 are RoHS compliant.

Q: What applications are supported by the substitute part?

A: The DELTA20/X/SMAM/RP/S/35 is specified for Bluetooth and Wi-Fi applications operating at 2.4GHz, which aligns with the frequency band of the WAN07RSP.
