WAN04RSP RF Antenna 2.4GHz Whip Tilt RP-SMA Equivalent & Substitute Parts

Part Overview

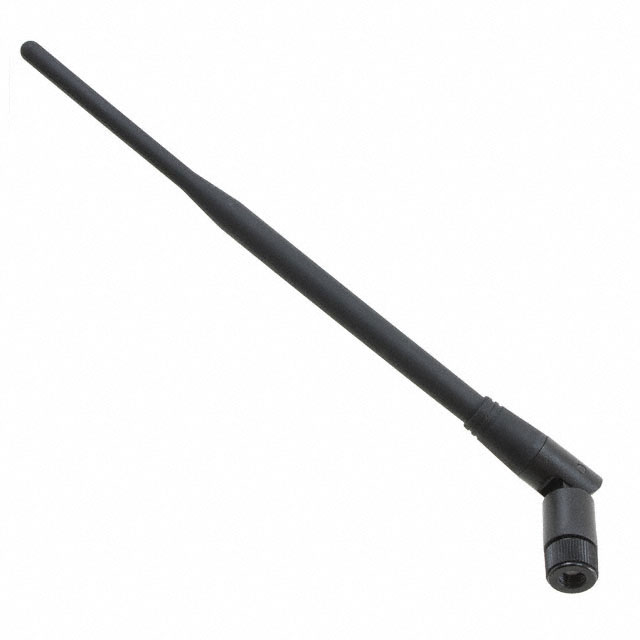

The WAN04RSP is a 2.4GHz whip tilt RF antenna manufactured by Honeywell Sensing and Productivity Solutions with RP-SMA male connector termination and 5.5dBi gain. This component is classified as obsolete product status. Due to its obsolete designation, identifying equivalent and substitute parts is necessary for ongoing system maintenance, design updates, and procurement continuity. Substitute parts must maintain electrical and mechanical compatibility across frequency band, connector type, gain specification, and mounting configuration.

Key Parameters

Parameter	WAN04RSP Value	Substitution Criticality
Frequency (Center/Band)	2.4GHz	Critical
Frequency Group	UHF (2GHz ~ 3GHz)	Critical
Antenna Type	Whip, Tilt	Critical
Gain	5.5dBi	Critical
Termination	RP-SMA Male	Critical
Mounting Type	Connector Mount	Critical
RoHS Status	RoHS Compliant	Regulatory
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Handling

Substitute Part Grouping Explanation

Substitute parts for the WAN04RSP are identified based on strict alignment with the following electrical and mechanical parameters:

Electrical Parameters:

Center frequency: 2.4GHz
Frequency group: UHF (2GHz ~ 3GHz)
Gain: 5.5dBi
Connector type: RP-SMA Male

Mechanical Parameters:

Antenna type: Whip, Tilt configuration
Mounting method: Connector Mount
Number of bands: 1

Compliance Parameters:

RoHS Compliant status
MSL rating: 1 (Unlimited)

The IN24-5RD-RSMA from TE Connectivity Laird meets all critical substitution criteria. This part maintains identical center frequency, antenna type, gain specification, connector termination, and mounting configuration. Both parts operate within the same UHF frequency group and share equivalent RoHS compliance and MSL ratings.

Parameter Comparison

Parameter	WAN04RSP (Honeywell)	IN24-5RD-RSMA (TE Connectivity Laird)	Match Status
Frequency (Center/Band)	2.4GHz	2.4GHz	Identical
Frequency Group	UHF (2GHz ~ 3GHz)	UHF (2GHz ~ 3GHz)	Identical
Frequency Range	Not specified	2.4GHz ~ 2.485GHz	Specified in substitute
Antenna Type	Whip, Tilt	Whip, Tilt	Identical
Number of Bands	1	1	Identical
Gain	5.5dBi	5.5dBi	Identical
Termination	RP-SMA Male	RP-SMA Male	Identical
Mounting Type	Connector Mount	Connector Mount	Identical
VSWR	Not specified	1.5	Specified in substitute
Power - Max	Not specified	10 W	Specified in substitute
RoHS Status	RoHS Compliant	RoHS Compliant	Identical
MSL	1 (Unlimited)	1 (Unlimited)	Identical
Product Status	Obsolete	Active	Substitute is active

Engineering Selection Recommendations

The IN24-5RD-RSMA is a direct electrical and mechanical equivalent for the obsolete WAN04RSP. Selection of this substitute part is supported by the following factors:

Compliance Alignment: Both parts maintain RoHS Compliant status and identical MSL rating of 1 (Unlimited), ensuring equivalent handling and environmental compliance requirements.

Product Status: The WAN04RSP is obsolete, while the IN24-5RD-RSMA maintains active product status with current manufacturing and supply chain availability. This transition ensures long-term component sourcing and support.

Electrical Equivalence: Identical center frequency (2.4GHz), gain (5.5dBi), and connector type (RP-SMA Male) ensure direct functional replacement in existing circuit designs without modification.

Mechanical Compatibility: Matching antenna type (Whip, Tilt) and mounting method (Connector Mount) provide identical physical integration into existing mechanical assemblies.

Additional Performance Data: The IN24-5RD-RSMA provides specified VSWR (1.5) and maximum power rating (10 W), offering additional performance documentation compared to the WAN04RSP specification sheet.

Frequently Asked Questions (FAQ)

Q: Can the IN24-5RD-RSMA directly replace the WAN04RSP without circuit modification?

A: Yes. Both parts share identical center frequency (2.4GHz), gain (5.5dBi), connector type (RP-SMA Male), and antenna configuration (Whip, Tilt). No circuit or mechanical redesign is required for substitution.

Q: What is the primary reason for substituting the WAN04RSP?

A: The WAN04RSP is classified as obsolete product status. The IN24-5RD-RSMA is an active product with current manufacturing support, ensuring reliable long-term procurement and supply chain continuity.

Q: Are there packaging differences between these parts?

A: The WAN04RSP is specified with "-" packaging notation, while the IN24-5RD-RSMA is supplied in Bulk packaging. Verify packaging requirements for your procurement process.

Q: Do both parts meet the same compliance standards?

A: Yes. Both parts are RoHS Compliant and carry MSL rating of 1 (Unlimited), meeting identical environmental and handling compliance requirements.

Q: What additional performance specifications does the IN24-5RD-RSMA provide?

A: The IN24-5RD-RSMA specifies VSWR of 1.5, maximum power rating of 10 W, and defined frequency range of 2.4GHz ~ 2.485GHz. These parameters are not specified in the WAN04RSP documentation.

Q: Is the IN24-5RD-RSMA suitable for WLAN applications?

A: Yes. The IN24-5RD-RSMA is designated for WLAN applications and operates within the 2.4GHz WiFi frequency band (2.4GHz ~ 2.485GHz).

Q: What is the physical height of the IN24-5RD-RSMA?

A: The maximum height is 8.071" (205.00mm). Verify this dimension against your mechanical assembly constraints.
