W3001 RF Antenna 2.4GHz Chip Solder SMD - Equivalent & Substitute Parts

Part Overview

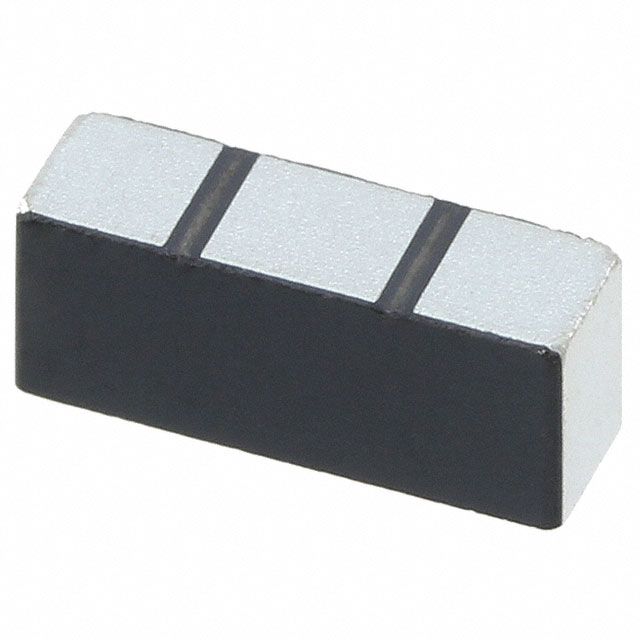

The W3001 is a 2.4GHz chip RF antenna manufactured by Pulse Electronics, designed for Bluetooth and WLAN applications. This surface mount component operates across the 2.4GHz to 2.483GHz frequency band with 1.5dBi gain and solder termination. The part is currently active in production with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts may be required due to inventory constraints, design optimization, or application-specific performance requirements within compatible frequency and gain parameters.

Substiute Parts

W3001

Pulse ElectronicsIn Stock: 932W3001 Datasheet

Current PartRFQ

SWLP.2450.12.4.B.02

Taoglas LimitedIn Stock: 4066SWLP.2450.12.4.B.02 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the W3001 is determined by the following critical parameters:

• Frequency compatibility: Center frequency of 2.4GHz with overlapping operational bandwidth
• Antenna type and form factor: Surface mount configuration with matching height profile (4.00mm maximum)
• Termination method: Solder connection for PCB integration
• Gain performance: Within acceptable range for 2.4GHz ISM band applications
• Compliance certifications: ROHS3 and REACH status alignment
• Packaging format: Tape & Reel (TR) for automated assembly

The substitute part SWLP.2450.12.4.B.02 meets these criteria through compatible frequency range (2.4GHz ~ 2.5GHz), matching surface mount configuration, identical height specification, solder termination, and equivalent regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

Both the W3001 and SWLP.2450.12.4.B.02 are active production components with ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic component deployment.

The W3001 provides a lower gain profile (1.5dBi) with unlimited moisture sensitivity tolerance, suitable for applications with extended storage or high-humidity environments. The SWLP.2450.12.4.B.02 offers higher gain (2dBi) with a 168-hour moisture sensitivity window, appropriate for controlled manufacturing environments with standard handling protocols.

Both parts operate within the 2.4GHz ISM band with overlapping frequency coverage supporting Bluetooth and WLAN standards. The identical 4.00mm height and solder termination ensure mechanical and electrical compatibility within existing PCB layouts designed for surface mount RF antenna integration.

Frequently Asked Questions (FAQ)

Q: Can SWLP.2450.12.4.B.02 directly replace W3001 in existing designs?

A: Direct substitution is possible when the application tolerates the gain differential (2dBi versus 1.5dBi) and the MSL 3 moisture sensitivity requirement aligns with manufacturing and storage conditions. Both parts share identical mounting height, termination method, and frequency band coverage.

Q: What is the significance of the gain difference between these parts?

A: The W3001 operates at 1.5dBi gain while SWLP.2450.12.4.B.02 provides 2dBi gain. This 0.5dBi increase may improve link budget in range-limited applications but requires validation against receiver sensitivity specifications and regulatory power limits for the target application.

Q: How do MSL ratings affect component selection?

A: The W3001 carries MSL 1 (unlimited storage at any humidity), while SWLP.2450.12.4.B.02 carries MSL 3 (168-hour maximum exposure above 60% relative humidity before reflow). Selection depends on manufacturing environment controls and component shelf-life requirements.

Q: Are the antenna types interchangeable?

A: The W3001 uses chip antenna technology while SWLP.2450.12.4.B.02 uses ceramic patch construction. Both are surface mount designs with identical height profiles. Antenna type differences may affect impedance matching and PCB layout considerations, requiring circuit validation.

Q: Do both parts support the same RF standards?

A: The W3001 supports Bluetooth and WiFi. SWLP.2450.12.4.B.02 supports 802.15.4 (Zigbee) and WiFi. Both operate within the 2.4GHz ISM band. Application compatibility depends on specific protocol requirements.
