W25M02GVTCIT Equivalent & Substitute Parts

Part Overview

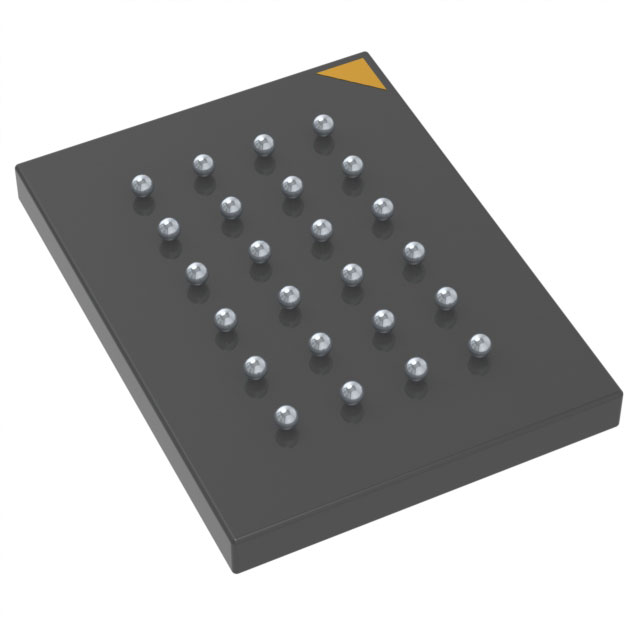

The W25M02GVTCIT is a 2Gbit NAND Flash memory integrated circuit manufactured by Winbond Electronics, featuring SPI Quad I/O interface capability. This device is classified as a non-volatile memory component with SLC (Single-Level Cell) NAND Flash technology, operating at 104 MHz clock frequency in a 24-TFBGA surface mount package.

The W25M02GVTCIT has reached obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications utilizing this memory architecture.

Substiute Parts

W25M02GVTCIT

Winbond ElectronicsIn Stock: 969W25M02GVTCIT Datasheet

Current PartRFQ

W25N02KVTCIU

Winbond ElectronicsIn Stock: 1088W25N02KVTCIU Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the W25M02GVTCIT is determined by strict equivalence across the following critical parameters:

Memory Capacity & Organization: The substitute part must provide identical 2Gbit capacity with 256M x 8 memory organization to ensure functional compatibility with existing firmware and memory mapping schemes.

Interface Specification: SPI Quad I/O interface is mandatory. The substitute must support identical signaling protocols and clock frequency of 104 MHz to maintain timing compatibility with host controllers.

Electrical Characteristics: Supply voltage range (2.7V ~ 3.6V) and operating temperature range (-40°C ~ 85°C) must be identical or encompassing to ensure operation across all specified environmental conditions.

Package & Mounting: The 24-TFBGA (8x6) surface mount package is required for PCB layout compatibility. Pin count, pitch, and footprint must be identical.

Compliance Standards: RoHS3 compliance and MSL rating of 3 (168 Hours) must be maintained for manufacturing and environmental requirements.

The W25N02KVTCIU meets all substitution criteria and is classified as a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

The W25N02KVTCIU is a direct functional equivalent to the W25M02GVTCIT and is suitable for replacement in new designs and production continuity applications.

Product Status Advantage: The W25N02KVTCIU maintains active product status with Winbond Electronics, ensuring ongoing availability, technical support, and supply chain stability. The W25M02GVTCIT obsolete status creates supply constraints and limits long-term sourcing options.

Compliance Certification: Both parts maintain identical RoHS3 compliance and REACH unaffected status, satisfying regulatory requirements for manufacturing and environmental standards.

Electrical & Thermal Equivalence: Identical voltage supply range (2.7V ~ 3.6V) and operating temperature range (-40°C ~ 85°C) ensure drop-in compatibility with existing power delivery and thermal management designs.

Memory Interface Compatibility: Identical SPI Quad I/O interface, 104 MHz clock frequency, and 700µs write cycle time ensure full protocol compatibility with host controllers and firmware implementations.

Package Compatibility: Identical 24-TFBGA (8x6) surface mount package ensures PCB footprint compatibility without layout modifications.

Performance Enhancement: The W25N02KVTCIU specifies 7 ns access time, providing improved read performance compared to the main part specification.

Frequently Asked Questions (FAQ)

Q: Can the W25N02KVTCIU be used as a direct replacement for the W25M02GVTCIT in existing designs?

A: Yes. The W25N02KVTCIU is a direct functional equivalent. All critical parameters including memory capacity, interface protocol, electrical characteristics, package type, and compliance certifications are identical. No design modifications are required.

Q: What is the primary reason for substitution?

A: The W25M02GVTCIT has reached obsolete product status. The W25N02KVTCIU maintains active status with Winbond Electronics, providing superior supply chain availability and long-term sourcing reliability.

Q: Are the package dimensions and pin assignments identical?

A: Yes. Both parts use the 24-TFBGA (8x6) surface mount package with identical pin count, pitch, and footprint. PCB layouts require no modification.

Q: Do the electrical specifications differ between these parts?

A: No. Supply voltage range (2.7V ~ 3.6V), operating temperature range (-40°C ~ 85°C), write cycle time (700µs), and clock frequency (104 MHz) are identical. The W25N02KVTCIU specifies 7 ns access time, which represents improved performance.

Q: Are both parts RoHS3 compliant?

A: Yes. Both the W25M02GVTCIT and W25N02KVTCIU are ROHS3 compliant with identical Moisture Sensitivity Level rating of 3 (168 Hours).

Q: What is the memory organization for these parts?

A: Both parts provide 2Gbit capacity organized as 256M x 8, ensuring identical memory addressing and data width compatibility.

Q: Does the SPI Quad I/O interface operate identically on both parts?

A: Yes. Both parts implement identical SPI Quad I/O interface with 104 MHz clock frequency, ensuring full protocol compatibility with host controllers and existing firmware.

Q: Is the W25N02KVTCIU available in the same packaging format?

A: Yes. The W25N02KVTCIU is supplied in 24-TFBGA (8x6) package format identical to the W25M02GVTCIT. Packaging is specified as Tray for the substitute part.
