VF-PRM3 Equivalent & Substitute Parts

Part Overview

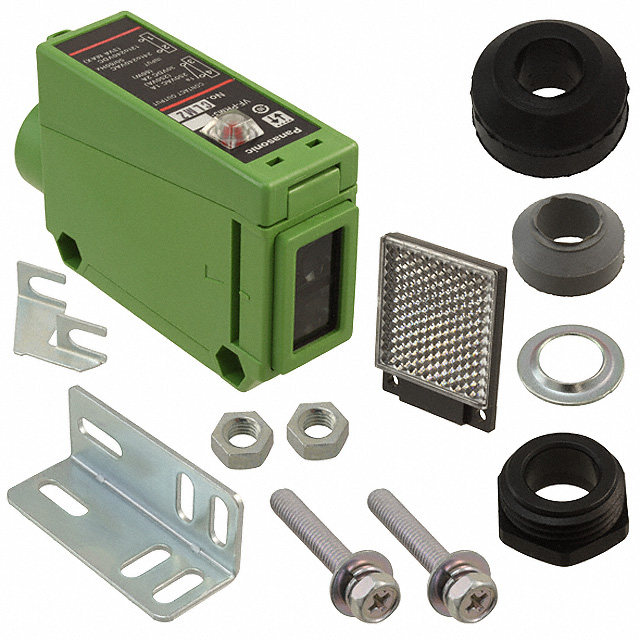

The VF-PRM3 is a retroreflective optical sensor manufactured by Panasonic Industrial Automation Sales with a sensing distance of 118.1" (3m). This sensor operates across a wide voltage range of 12V to 240V with a 20ms response time and IP66 ingress protection rating. The product is currently obsolete, making identification of compatible substitute components essential for system maintenance and new design implementations where retroreflective sensing functionality is required.

Substiute Parts

VF-PRM3

Panasonic Industrial Automation SalesIn Stock: 884VF-PRM3 Datasheet

Current PartRFQ

E3JM-R4M4-US

Omron Automation and SafetyIn Stock: 1101E3JM-R4M4-US Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The E3JM-R4M4-US from Omron Automation and Safety qualifies as a substitute for the VF-PRM3 based on the following critical parameters:

Matching Criteria:

• Sensing Method: Both employ retroreflective optical sensing technology
• Voltage Supply Range: Both support 12V ~ 240V and 24V ~ 240V operation
• Light Source: Both utilize red wavelength LED technology
• Ingress Protection: Both achieve IP66 rating
• RoHS Compliance: Both are RoHS Compliant
• ECCN Classification: Both classified as EAR99

Functional Compatibility: The E3JM-R4M4-US extends the sensing distance capability to 157.480" (4m) compared to the VF-PRM3's 118.1" (3m), providing enhanced range performance. The substitute features a relay output configuration with selectable Dark-ON/Light-ON modes, whereas the VF-PRM3 output configuration is not specified in available documentation.

Parameter Comparison

Engineering Selection Recommendations

The E3JM-R4M4-US is an active product from Omron Automation and Safety and represents a viable substitute for the obsolete VF-PRM3. Both components maintain RoHS compliance and EAR99 ECCN classification, ensuring regulatory consistency in component selection.

Key considerations for implementation:

Advantages of E3JM-R4M4-US:

• Active product status ensures ongoing availability and supply chain continuity
• Extended sensing distance of 157.480" (4m) provides additional operational range
• Wider operating temperature range (-25°C ~ 55°C) accommodates more demanding environmental conditions
• Relay output configuration with selectable modes offers enhanced control flexibility

Implementation Considerations:

• Connection method differs: VF-PRM3 uses cable connection while E3JM-R4M4-US uses terminal block connection, requiring mechanical integration adjustment
• Response time increases from 20ms to 30ms; verify system timing requirements accommodate this specification change
• Output configuration change from unspecified to relay-based requires electrical interface redesign

Frequently Asked Questions (FAQ)

Q: Can the E3JM-R4M4-US directly replace the VF-PRM3 without modifications?

A: Direct mechanical and electrical replacement requires interface adaptation. The connection method differs (cable versus terminal block), and the output configuration change necessitates electrical circuit redesign. Voltage supply compatibility and retroreflective sensing method alignment support functional substitution with proper integration.

Q: What is the impact of the increased sensing distance on system performance?

A: The E3JM-R4M4-US provides 157.480" (4m) sensing distance compared to the VF-PRM3's 118.1" (3m). This extended range does not negatively impact performance in applications requiring shorter distances; however, system calibration and reflector positioning may require adjustment to maintain optimal detection characteristics.

Q: Are there compliance or certification differences between these components?

A: Both components are RoHS Compliant and classified as EAR99 for export control purposes. The E3JM-R4M4-US includes REACH Unaffected status in addition to these certifications, providing equivalent regulatory standing for industrial applications.

Q: How does the response time difference affect system operation?

A: The E3JM-R4M4-US response time of 30ms compared to the VF-PRM3's 20ms represents a 10ms increase. Applications with response time requirements tighter than 30ms require verification that the substitute meets system timing specifications.

Q: What packaging and inventory considerations apply to this substitution?

A: The E3JM-R4M4-US is available in bulk packaging with 1074 pieces in stock, compared to the VF-PRM3's cable packaging format with 807 pieces available. Bulk packaging may require repackaging for component-level integration depending on assembly requirements.
