VDRUS14X320BKE Equivalent & Substitute Parts

Part Overview

The VDRUS14X320BKE is a 510 V varistor manufactured by Vishay Beyschlag/Draloric/BC Components, classified as a Transient Voltage Suppressor (TVS) device. This through-hole disc varistor is designed for single-circuit transient voltage suppression applications with a surge current rating of 8 kA and energy dissipation capacity of 220 J. The part maintains Active product status and is RoHS3 compliant with unlimited moisture sensitivity level (MSL 1). Substitute parts are identified when electrical and mechanical parameters remain within the specified tolerances, allowing for component interchangeability in circuit designs without performance degradation.

Substiute Parts

VDRUS14X320BKE

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 1191VDRUS14X320BKE Datasheet

Current PartRFQ

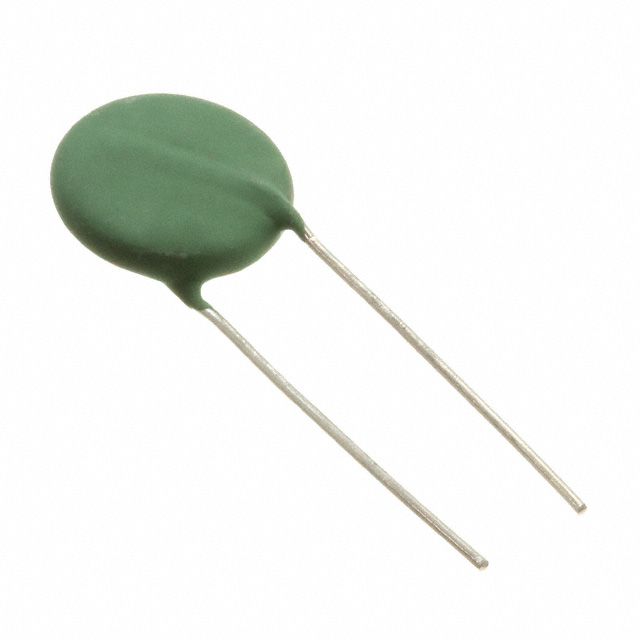

VDRUS14X320BSE

Vishay Beyschlag/Draloric/BC ComponentsIn Stock: 885VDRUS14X320BSE Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the VDRUS14X320BKE is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical values for maximum AC and DC voltage ratings, varistor voltage specifications (minimum, typical, and maximum), surge current capacity, energy dissipation, circuit count, capacitance, operating temperature range, mounting type, and package form factor. All substitute parts must belong to the same VDRUS series and retain the same through-hole disc 14mm package configuration. Compliance certifications including RoHS3 status, REACH classification, and moisture sensitivity level must remain unchanged. The substitution logic ensures that the replacement component functions identically within the original circuit design without requiring layout modifications or performance re-evaluation.

Parameter Comparison

Engineering Selection Recommendations

The VDRUS14X320BSE is a direct parametric equivalent to the VDRUS14X320BKE. Both components are manufactured by Vishay Beyschlag/Draloric/BC Components and maintain identical electrical specifications across all voltage, current, and energy parameters. Both parts are Active products with RoHS3 compliance and REACH unaffected status, ensuring regulatory alignment for current and future applications. The through-hole disc 14mm package configuration is identical, permitting direct board-level substitution without PCB layout modifications. Selection between these two parts may be based on inventory availability, lead time, or procurement source, as no electrical or mechanical differentiation exists between them. Both components operate within the −40 to +125 °C temperature range and maintain the same capacitance and surge current specifications required for transient voltage suppression in industrial and commercial applications.

Frequently Asked Questions (FAQ)

Q: Can VDRUS14X320BSE be used as a direct replacement for VDRUS14X320BKE?

A: Yes. The VDRUS14X320BSE is a parametric equivalent with identical electrical ratings, voltage specifications, surge current capacity, energy dissipation, operating temperature range, and package configuration. Direct substitution is supported without circuit re-evaluation.

Q: Are there any differences in compliance or regulatory status between these parts?

A: No. Both the VDRUS14X320BKE and VDRUS14X320BSE maintain identical RoHS3 compliance, REACH unaffected status, and moisture sensitivity level (MSL 1). Regulatory requirements are satisfied by either component.

Q: What is the significance of the different packaging designations (BKE vs. BSE)?

A: The packaging designations indicate different bulk packaging formats or supplier configurations. The electrical and mechanical specifications remain identical. The designation does not affect circuit performance or interchangeability.

Q: Can these varistors be used interchangeably in high-surge transient suppression circuits?

A: Yes. Both components are rated for 8 kA surge current and 220 J energy dissipation. They are functionally equivalent for transient voltage suppression applications requiring these specifications.

Q: What mounting considerations apply to these through-hole disc components?

A: Both parts use identical through-hole mounting with a 14mm disc package form factor. PCB footprints, lead spacing, and mounting procedures are identical, permitting direct board-level substitution.

Q: Are there temperature-related performance differences between these substitute parts?

A: No. Both components operate across the identical temperature range of −40 to +125 °C with no performance differentiation across this range.
