VCNL4100 Equivalent & Substitute Parts

Part Overview

The VCNL4100 is an optical sensor designed for ambient light detection at 550nm wavelength with I2C digital output interface. This component integrates proximity detection capability in a compact 10-SMD surface mount package. The VCNL4100 is classified as obsolete, making identification of functionally equivalent active alternatives essential for ongoing production and new design implementations. Substitute parts must maintain electrical compatibility, mechanical fit, and output protocol consistency to ensure direct replacement capability.

Substiute Parts

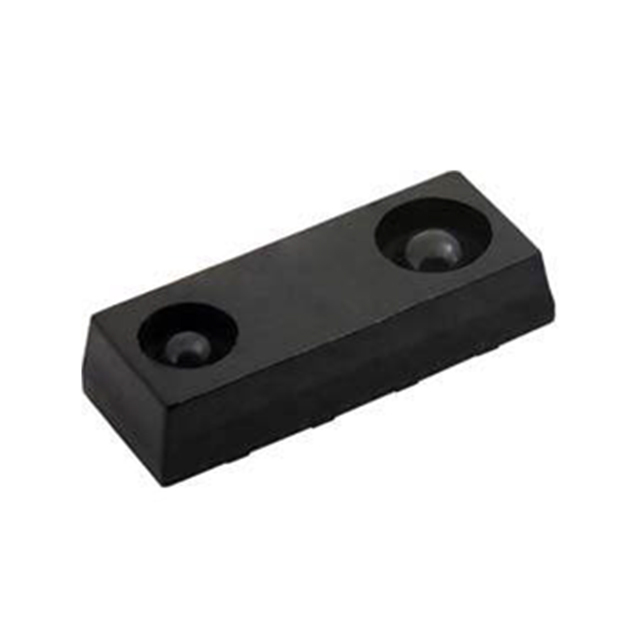

VCNL4100

Vishay Semiconductor Opto DivisionIn Stock: 1014VCNL4100 Datasheet

Current PartRFQ

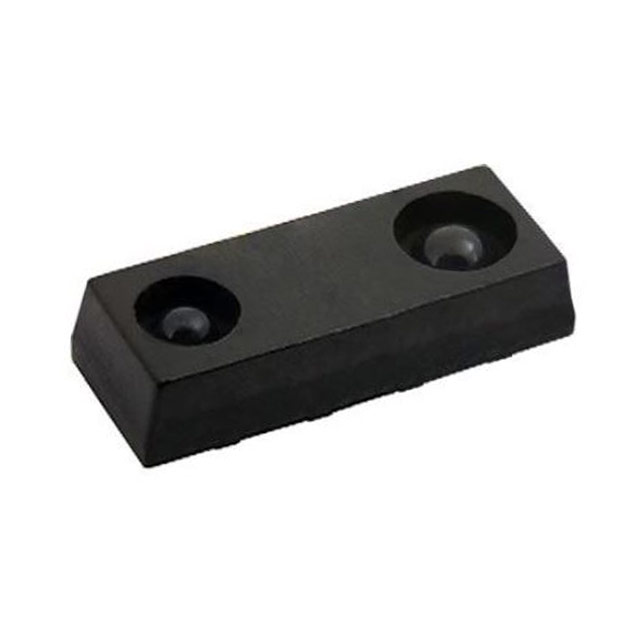

VCNL4200

Vishay Semiconductor Opto DivisionIn Stock: 5267VCNL4200 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the VCNL4100 is determined by strict alignment with the following critical parameters:

• Wavelength specification: 550nm
• Sensor functionality: Ambient light detection with proximity sensing capability
• Digital interface: I2C protocol
• Supply voltage compatibility: 2.5V ~ 3.6V operating range
• Temperature operating range: -40°C ~ 85°C minimum
• Surface mount packaging: 10-SMD configuration
• Regulatory compliance: ROHS3 Compliant status

The VCNL4200 meets all substitution criteria as an active product offering identical electrical specifications, interface protocol, and package configuration while maintaining full regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The VCNL4200 is the direct substitute for the VCNL4100 based on the following engineering criteria:

Electrical Compatibility: Both components operate within identical supply voltage ranges (2.5V ~ 3.6V) and temperature specifications (-40°C ~ 85°C), ensuring direct circuit-level compatibility without modification to power delivery or thermal management systems.

Interface Protocol: Both parts implement I2C digital communication, eliminating firmware or software interface changes during substitution.

Mechanical Fit: Both components utilize 10-SMD surface mount packaging compatible with standard PCB assembly processes and existing footprints.

Regulatory Status: The VCNL4200 maintains ROHS3 compliance and equivalent moisture sensitivity classification, satisfying supply chain and environmental requirements.

Product Lifecycle: The VCNL4200 carries active product status, ensuring long-term availability and supply chain continuity compared to the obsolete VCNL4100.

Frequently Asked Questions (FAQ)

Q: Can the VCNL4200 be used as a direct replacement for the VCNL4100 without PCB modifications?

A: Yes. Both components share identical electrical specifications, I2C interface protocol, and 10-SMD surface mount packaging. No circuit redesign or firmware changes are required for substitution.

Q: Are there differences in the package designation between VCNL4100 and VCNL4200?

A: The VCNL4100 is specified as "10-SMD, No Lead" while the VCNL4200 is designated "10-SMD Module." Both configurations are mechanically and electrically compatible for standard PCB assembly applications.

Q: What is the primary reason to substitute the VCNL4100?

A: The VCNL4100 is classified as obsolete. The VCNL4200 provides an active, supported alternative with identical functional and electrical characteristics, ensuring continued component availability and supply chain reliability.

Q: Do both parts require identical handling and storage conditions?

A: Yes. Both components share Moisture Sensitivity Level 3 (168 Hours) classification, requiring equivalent moisture control and storage protocols during manufacturing and assembly.

Q: Is the VCNL4200 available in the same packaging options as the VCNL4100?

A: Both parts are supplied in Cut Tape (CT) and Digi-Reel® packaging formats, maintaining consistency with existing procurement and assembly workflows.
