VCNL4010-GS08 Equivalent & Substitute Parts

Part Overview

The VCNL4010-GS08 is an optical ambient light sensor manufactured by Vishay Semiconductor Opto Division, designed for I2C-based ambient light detection applications. This component operates within a 2.5V to 3.6V supply voltage range and supports proximity detection functionality. The part is currently in Last Time Buy status, indicating end-of-life transition. Identifying equivalent substitute parts is necessary to ensure design continuity and maintain supply chain reliability for new production runs and long-term product support.

Substiute Parts

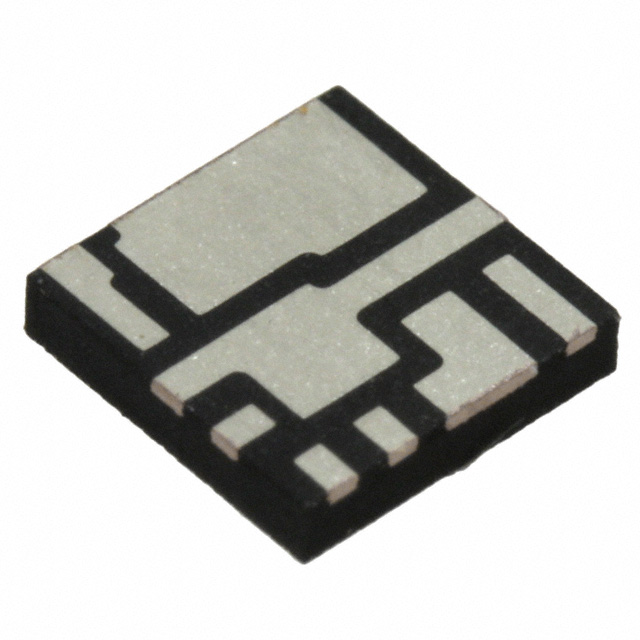

VCNL4010-GS08

Vishay Semiconductor Opto DivisionIn Stock: 9982VCNL4010-GS08 Datasheet

Current PartRFQ

VCNL4030X01-GS08

Vishay Semiconductor Opto DivisionIn Stock: 15321VCNL4030X01-GS08 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the VCNL4010-GS08 is based on the following critical parameters that must remain compatible:

Core Functional Requirements:

• Sensor Type: Ambient light detection
• Communication Protocol: I2C interface
• Proximity Detection: Supported
• Supply Voltage Range: 2.5V ~ 3.6V (compatible with existing power architecture)

Environmental & Compliance Requirements:

• RoHS3 Compliance: Required for regulatory alignment
• Moisture Sensitivity Level: MSL 3 or better
• REACH Status: Unaffected or compliant

Physical Integration:

• Mounting Type: Surface Mount
• Package Category: QFN-based (pin-compatible or functionally equivalent)

The VCNL4030X01-GS08 qualifies as a substitute part because it maintains I2C communication, ambient light sensing capability, proximity detection, identical supply voltage range, and equivalent environmental compliance. Differences in package pin count (8-WFQFN vs. 13-WQFN), wavelength specification (550nm), and extended operating temperature range (-40°C ~ 105°C) represent functional enhancements rather than incompatibilities.

Parameter Comparison

Engineering Selection Recommendations

The VCNL4030X01-GS08 is the designated substitute for the VCNL4010-GS08 based on the following engineering criteria:

Product Status Alignment: The VCNL4030X01-GS08 maintains Active product status, ensuring long-term availability and continued manufacturer support, whereas the VCNL4010-GS08 is in Last Time Buy status.

Compliance & Certification: Both parts maintain ROHS3 compliance and identical MSL ratings. The VCNL4030X01-GS08 includes AEC-Q101 automotive qualification, providing additional reliability assurance for applications requiring extended environmental performance.

Functional Compatibility: Identical supply voltage range (2.5V ~ 3.6V), I2C communication protocol, and proximity detection capability ensure direct functional substitution without firmware or protocol modifications.

Thermal Performance: The VCNL4030X01-GS08 extends the operating temperature range to -40°C ~ 105°C, accommodating broader environmental conditions while remaining backward-compatible with the original -25°C ~ 85°C specification.

Package Consideration: The transition from 13-WQFN to 8-WFQFN requires PCB layout modification. Pin mapping and signal routing must be verified against manufacturer datasheets prior to implementation.

Frequently Asked Questions (FAQ)

Q: Can the VCNL4030X01-GS08 be used as a direct pin-for-pin replacement?

A: No. The VCNL4010-GS08 uses a 13-WQFN package while the VCNL4030X01-GS08 uses an 8-WFQFN package. PCB layout and pin routing must be redesigned. Consult the manufacturer datasheets for pin assignment and signal compatibility.

Q: Are the I2C communication protocols identical between these parts?

A: Both parts use I2C as the output interface. Protocol compatibility must be verified through datasheet review to confirm register mapping and command structure alignment.

Q: What is the significance of the 550nm wavelength specification on the VCNL4030X01-GS08?

A: The 550nm wavelength indicates the peak spectral response of the ambient light sensor. This specification is provided for the substitute part but not specified for the original VCNL4010-GS08. Both parts function as ambient light sensors and are compatible with standard lighting environments.

Q: Does the extended operating temperature range of the VCNL4030X01-GS08 affect compatibility?

A: No. The extended range (-40°C ~ 105°C) is a superset of the original specification (-25°C ~ 85°C). Applications operating within the original temperature range remain fully compatible.

Q: What does AEC-Q101 qualification mean for the substitute part?

A: AEC-Q101 is an automotive industry qualification standard. The VCNL4030X01-GS08 meets this standard, indicating enhanced reliability testing and suitability for automotive applications. This does not affect compatibility with non-automotive applications.

Q: Is inventory availability a factor in selecting the substitute?

A: Yes. The VCNL4030X01-GS08 has 15,266 units in stock with Active product status, ensuring sustained availability. The VCNL4010-GS08 has 9,900 units in stock but is in Last Time Buy status, indicating limited future availability.
