Equivalent & Substitute Parts for V7-1C29D8

Part Overview

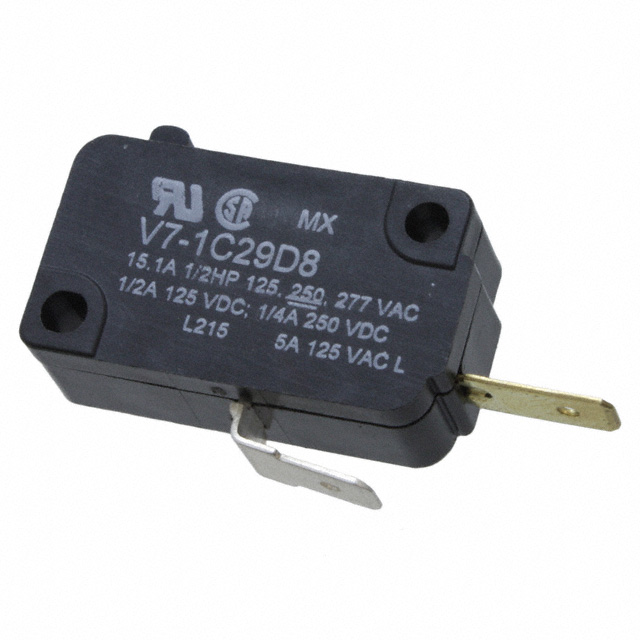

The V7-1C29D8 is a snap-action switch manufactured by Honeywell Sensing and Productivity Solutions, configured as a SPST-NO (Single Pole Single Throw - Normally Open) chassis mount component. This switch is rated for 15A AC at 125V with a round pin plunger actuator and quick connect 0.187" termination. The product is currently obsolete, necessitating identification of functionally equivalent alternatives from active manufacturers to maintain system compatibility and ensure continued component availability.

Substiute Parts

V7-1C29D8

Honeywell Sensing and Productivity SolutionsIn Stock: 1256V7-1C29D8 Datasheet

Current PartRFQ

LS0851500F100C2C

E-SwitchIn Stock: 1105LS0851500F100C2C Datasheet

SimilarRFQ

LS0851500F160C2C

E-SwitchIn Stock: 1119LS0851500F160C2C Datasheet

SimilarRFQ

LS0851500F250C2C

E-SwitchIn Stock: 903LS0851500F250C2C Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the V7-1C29D8 are identified from the E-Switch LS series based on the following matching criteria:

Mandatory Matching Parameters:

• Circuit configuration: SPST-NO
• Switch function: Off-Mom (Momentary)
• Current rating: 15A AC
• Voltage rating: 125V AC
• Actuator type: Round (Pin Plunger)
• Mounting type: Chassis Mount
• Operating position: 0.579" (14.7mm)

Variable Parameters (Substitution Basis): The three E-Switch substitute parts differ in operating force (100gf, 160gf, and 250gf), which determines the actuation effort required. These variants allow selection based on specific application force requirements while maintaining all other electrical and mechanical specifications.

Termination Consideration: Substitute parts feature Quick Connect 0.250" (6.3mm) termination, compared to the original 0.187" (4.7mm). This represents a mechanical interface difference requiring verification for connector compatibility in the target application.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The V7-1C29D8 is obsolete. All three E-Switch LS series alternatives (LS0851500F100C2C, LS0851500F160C2C, LS0851500F250C2C) are active products with current manufacturing support and documented availability.

Compliance Alignment: All substitute parts maintain RoHS compliance (ROHS3 standard) and EAR99 export classification consistent with the original component. MSL ratings are equivalent across all options.

Operating Force Selection:

• LS0851500F100C2C: Lowest operating force (100gf) for applications requiring minimal actuation effort
• LS0851500F160C2C: Operating force (160gf) closest to the original V7-1C29D8 specification (150gf)
• LS0851500F250C2C: Highest operating force (250gf) for applications requiring greater actuation resistance

Temperature Range Limitation: E-Switch substitutes operate from -25°C to 85°C, compared to the original -40°C to 85°C range. Applications requiring operation below -25°C require alternative sourcing.

Electrical and Mechanical Life Trade-offs: Substitute parts specify 50,000 electrical cycles and 1,000,000 mechanical cycles, compared to the original 100,000 electrical cycles and 10,000,000 mechanical cycles. Applications with high cycle count requirements must account for reduced service life specifications.

Termination Interface: Connector compatibility must be verified for the 0.250" (6.3mm) quick connect termination used by E-Switch substitutes, as this differs from the original 0.187" (4.7mm) specification.

Frequently Asked Questions (FAQ)

Q: Can LS0851500F160C2C directly replace V7-1C29D8 without modification?

A: LS0851500F160C2C matches the core electrical specifications (SPST-NO, 15A AC, 125V AC) and mechanical interface (chassis mount, round pin plunger, 0.579" operating position). However, the termination connector size differs (0.250" vs. 0.187"), requiring connector adapter verification or harness modification.

Q: What is the significance of the operating force difference between the original and substitute parts?

A: Operating force determines the finger pressure required to actuate the switch. The V7-1C29D8 requires 150gf. LS0851500F100C2C requires less force (100gf), LS0851500F160C2C is closest (160gf), and LS0851500F250C2C requires more force (250gf). Selection depends on the application's ergonomic or mechanical actuation requirements.

Q: Are the E-Switch substitutes suitable for applications operating below -25°C?

A: No. E-Switch LS series parts are rated -25°C to 85°C, while the original V7-1C29D8 operates -40°C to 85°C. Applications requiring operation below -25°C cannot use these substitutes without alternative component sourcing.

Q: How do electrical life specifications affect component selection?

A: The original V7-1C29D8 is rated for 100,000 electrical cycles. E-Switch substitutes are rated for 50,000 cycles. Applications with cycle counts exceeding 50,000 cycles must account for reduced service life or implement preventive replacement schedules.

Q: What packaging format is available for the E-Switch substitute parts?

A: All three E-Switch substitute parts (LS0851500F100C2C, LS0851500F160C2C, LS0851500F250C2C) are supplied in bulk packaging.

Q: Are there inventory considerations for component selection?

A: Current inventory levels are: LS0851500F100C2C (1,056 pcs), LS0851500F160C2C (1,028 pcs), and LS0851500F250C2C (793 pcs). All substitutes maintain active stock status.
