Equivalent & Substitute Parts for Honeywell V7-1C29D7 SPST-NO Snap Action Switch

Part Overview

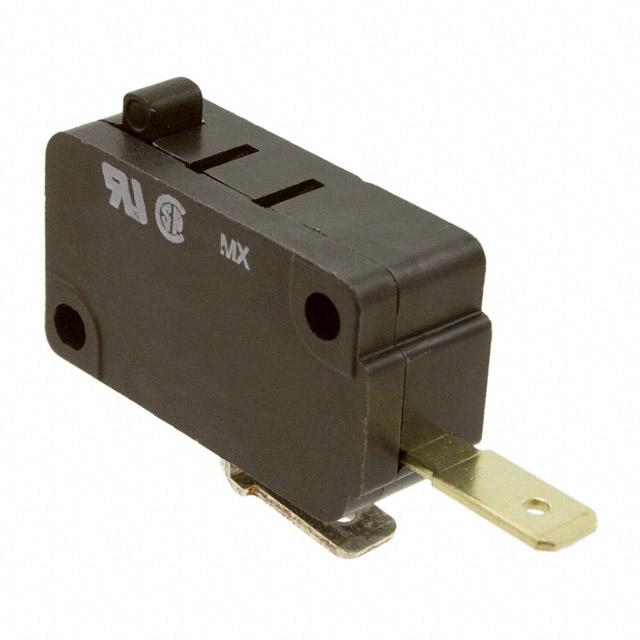

The Honeywell V7-1C29D7 is a snap action switch with SPST-NO (Single Pole Single Throw - Normally Open) circuit configuration, rated for 15A at 125V AC and 500mA at 125V DC. This component features a round pin plunger actuator and chassis mount termination with quick connect 0.187" terminals. The part is classified as obsolete, necessitating identification of functionally equivalent alternatives from active product lines to maintain design continuity and ensure supply chain availability.

Substiute Parts

V7-1C29D7

Honeywell Sensing and Productivity SolutionsIn Stock: 936V7-1C29D7 Datasheet

Current PartRFQ

LS0851500F100C2C

E-SwitchIn Stock: 1105LS0851500F100C2C Datasheet

SimilarRFQ

LS0851500F160C2C

E-SwitchIn Stock: 1119LS0851500F160C2C Datasheet

SimilarRFQ

LS0851500F250C2C

E-SwitchIn Stock: 903LS0851500F250C2C Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the V7-1C29D7 are identified from the E-Switch LS series based on the following critical parameters that determine functional equivalence:

Mandatory Matching Parameters:

• Circuit configuration: SPST-NO
• Switch function: Off-Momentary
• Current rating: 15A AC
• Voltage rating: 125V AC
• Actuator type: Round pin plunger
• Mounting type: Chassis mount
• Operating position: 0.579" (14.7mm)

Variable Parameters (Substitution Basis): The E-Switch LS0851500 series provides three variants differentiated by operating force specification: LS0851500F100C2C (100gf), LS0851500F160C2C (160gf), and LS0851500F250C2C (250gf). These variants maintain electrical and mechanical compatibility while offering different actuation force profiles to accommodate specific application requirements.

Compatibility Considerations: All substitute parts use 0.250" (6.3mm) quick connect termination, which differs from the original 0.187" (4.7mm) specification. This represents a mechanical interface change requiring terminal adapter verification or redesign. All substitutes are active products with current manufacturing status and enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection Criteria:

The E-Switch LS0851500F160C2C represents the closest functional equivalent to the V7-1C29D7, with operating force (160gf) nearest to the original specification (150gf). This variant maintains all critical electrical parameters: 15A AC current rating, 125V AC voltage rating, SPST-NO circuit configuration, and identical 0.579" operating position.

Compliance and Certification Status:

All E-Switch LS series substitutes carry ROHS3 compliance, exceeding the original RoHS Compliant designation. All parts maintain EAR99 export classification and MSL 1 (Unlimited) moisture sensitivity rating, ensuring regulatory and environmental compatibility.

Operational Differences Requiring Assessment:

The substitute parts operate within a reduced temperature range (-25°C to 85°C versus -40°C to 85°C), reduced electrical life (50,000 cycles versus 100,000 cycles), and reduced mechanical life (1,000,000 cycles versus 10,000,000 cycles). Applications requiring operation below -25°C or demanding the original cycle life specifications must evaluate these parameter reductions against application requirements.

Mechanical Interface Modification:

The termination style change from 0.187" to 0.250" quick connect terminals requires circuit board or harness modification. This represents a non-trivial design change necessitating validation of the modified interface.

Operating Force Variants:

• LS0851500F100C2C: Lowest actuation force (100gf) for applications requiring minimal operator effort
• LS0851500F160C2C: Intermediate actuation force (160gf) for general-purpose applications
• LS0851500F250C2C: Highest actuation force (250gf) for applications requiring positive tactile feedback and accidental actuation prevention

Frequently Asked Questions (FAQ)

Q: Can the E-Switch LS0851500 series directly replace the Honeywell V7-1C29D7 without modification?

A: Direct replacement requires terminal adapter design or circuit board redesign. The substitute parts use 0.250" (6.3mm) quick connect terminals versus the original 0.187" (4.7mm) specification. All other mounting and electrical interfaces are compatible.

Q: What is the significance of the operating force differences between the three E-Switch variants?

A: Operating force determines the physical effort required to actuate the switch. The V7-1C29D7 specifies 150gf. The LS0851500F160C2C (160gf) provides the closest match. Selection of LS0851500F100C2C or LS0851500F250C2C should be based on specific application ergonomic or reliability requirements.

Q: Are the reduced electrical and mechanical life ratings of the E-Switch substitutes acceptable?

A: The E-Switch LS series provides 50,000 electrical cycles and 1,000,000 mechanical cycles versus the original 100,000 and 10,000,000 cycles respectively. Applications with cycle count requirements exceeding these values must evaluate alternative solutions or confirm that actual application duty cycles remain within substitute specifications.

Q: What is the temperature operating range limitation of the E-Switch substitutes?

A: E-Switch LS0851500 series operates from -25°C to 85°C, compared to the original -40°C to 85°C range. Applications requiring operation below -25°C must use the original Honeywell part or identify alternative solutions.

Q: Are all three E-Switch variants equally suitable for replacement?

A: All three variants (LS0851500F100C2C, LS0851500F160C2C, LS0851500F250C2C) maintain identical electrical ratings and circuit configuration. Selection depends on application-specific actuation force requirements. The LS0851500F160C2C provides the closest operating force match to the original specification.

Q: What compliance certifications apply to the E-Switch substitutes?

A: All E-Switch LS0851500 variants carry ROHS3 compliance, REACH Unaffected status, EAR99 export classification, and MSL 1 (Unlimited) moisture sensitivity rating. These certifications exceed or match the original part specifications.

Q: Is inventory availability a factor in substitute selection?

A: Current inventory levels are: LS0851500F100C2C (1,056 units), LS0851500F160C2C (1,028 units), and LS0851500F250C2C (793 units). All variants maintain adequate stock for production requirements.
