Equivalent & Substitute Parts for Honeywell V3L-3003-D8 Snap Action Switch

Part Overview

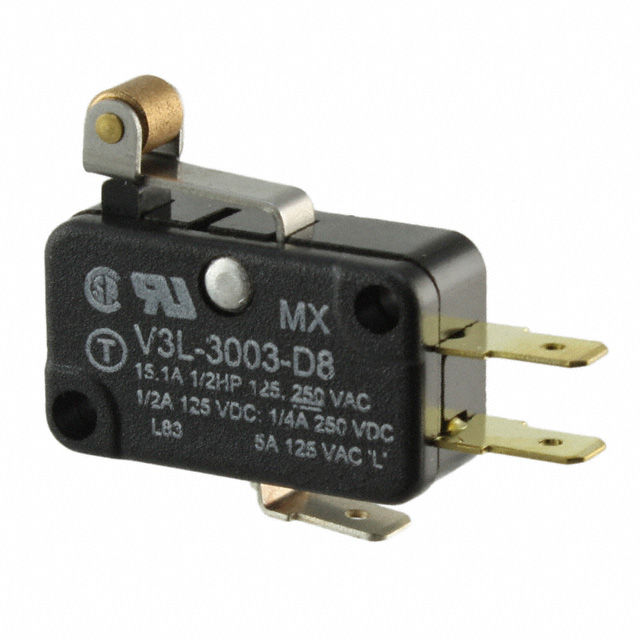

The Honeywell V3L-3003-D8 is an SPDT snap action switch rated for 15A at 125V AC/DC with chassis mount configuration and quick connect termination. This switch is classified as Active product status and is RoHS Compliant. Substitute parts are identified when equivalent electrical ratings, circuit configuration, mounting type, and termination style align with the main part specifications, enabling direct replacement in applications where mechanical and electrical parameters remain within acceptable tolerances.

Substiute Parts

V3L-3003-D8

Honeywell Sensing and Productivity SolutionsIn Stock: 1012V3L-3003-D8 Datasheet

Current PartRFQ

LS0851505F160C1A

E-SwitchIn Stock: 1116LS0851505F160C1A Datasheet

SimilarRFQ

LS0851505F250C1A

E-SwitchIn Stock: 9571LS0851505F250C1A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Honeywell V3L-3003-D8 are qualified based on the following criteria:

Electrical Equivalence: All substitute parts maintain SPDT circuit configuration with 15A AC current rating at 125V AC voltage, ensuring functional compatibility in AC-rated applications.

Mechanical Compatibility: Substitute parts share chassis mount configuration with quick connect 0.187" (4.7mm) termination style, enabling direct physical installation without adapter requirements.

Switch Function: All parts maintain On-Mom (momentary) switch function, preserving operational behavior in control circuits.

Compliance Alignment: Substitute parts are RoHS Compliant and REACH Unaffected, matching the regulatory status of the main part.

The identified substitute parts are E-Switch LS0851505F160C1A and E-Switch LS0851505F250C1A, both from the LS series. These parts differ in operating force (160gf and 250gf respectively) and release force specifications compared to the main part (195gf operating force, 15gf release force), but remain within the scope of snap action switch substitution where force characteristics are application-dependent parameters.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection Criteria:

All three parts maintain Active product status and comply with RoHS and REACH requirements, establishing baseline compatibility for new designs and replacement applications.

Electrical Compatibility:

The Honeywell V3L-3003-D8 and both E-Switch LS series substitutes are rated for 15A AC at 125V, supporting direct replacement in AC-powered control circuits. The Honeywell part specifies 500mA DC rating; substitute parts do not specify DC current ratings and should be evaluated for DC applications based on manufacturer consultation.

Mechanical Considerations:

Operating force and release force values differ across the three parts. The Honeywell V3L-3003-D8 specifies 195gf operating force with 15gf release force. The E-Switch LS0851505F160C1A operates at 160gf with 40gf release force, while the LS0851505F250C1A operates at 250gf with 50gf release force. Selection between these options depends on application-specific actuation requirements and operator interface design.

Compliance Status:

The Honeywell part carries RoHS Compliant certification. Both E-Switch substitutes carry ROHS3 Compliant certification, representing an updated compliance standard. Both substitute parts are REACH Unaffected, matching the main part status.

Operational Life Data:

E-Switch substitute parts provide specified electrical life (50,000 cycles) and mechanical life (1,000,000 cycles). The Honeywell part does not specify these parameters in the provided data. Applications requiring documented cycle life specifications should reference the E-Switch parts.

Frequently Asked Questions (FAQ)

Q: Can the E-Switch LS0851505F160C1A directly replace the Honeywell V3L-3003-D8?

A: Direct replacement is supported for AC applications rated at 15A, 125V with SPDT circuit configuration and chassis mount installation. The lower operating force (160gf vs. 195gf) may affect actuation feel and should be evaluated for the specific application interface.

Q: What is the difference between LS0851505F160C1A and LS0851505F250C1A?

A: Both parts share identical electrical ratings (15A, 125V AC, SPDT) and mechanical mounting specifications. The primary difference is operating force: LS0851505F160C1A requires 160gf actuation force with 40gf release force, while LS0851505F250C1A requires 250gf actuation force with 50gf release force. Selection depends on application-specific actuation requirements.

Q: Are these parts suitable for DC applications?

A: The Honeywell V3L-3003-D8 specifies 500mA DC rating at 125V DC. The E-Switch substitute parts do not provide DC current specifications in the available data. DC application compatibility should be confirmed with the manufacturer before selection.

Q: What is the significance of ROHS3 vs. RoHS Compliant certification?

A: Both certifications indicate compliance with RoHS (Restriction of Hazardous Substances) requirements. ROHS3 represents the current version of the standard. Both statuses are acceptable for regulatory compliance purposes.

Q: Do these parts have interchangeable packaging?

A: All three parts are supplied in Bulk packaging. Packaging format is consistent across the main part and substitutes, supporting equivalent handling and storage procedures.

Q: What operating temperature range should be considered?

A: The Honeywell V3L-3003-D8 does not specify operating temperature in the provided data. E-Switch substitutes specify -25°C to 85°C operating range. Temperature requirements for the application should be confirmed against available manufacturer documentation.
