Omron V-10-6C5 Snap Action Switch: Equivalent & Substitute Parts

Part Overview

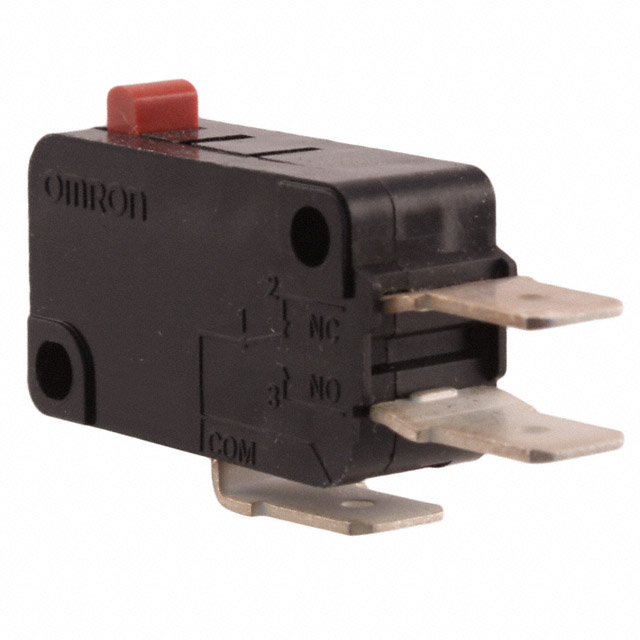

The Omron V-10-6C5 is a snap action switch with SPST-NO (Single Pole Single Throw - Normally Open) circuit configuration, rated for 10A AC at 250V. This chassis-mounted switch features a round pin plunger actuator and quick connect termination, designed for applications requiring momentary contact operation. The V-10-6C5 is currently in Last Time Buy status, making identification of suitable substitute components essential for ongoing procurement and design continuity.

Substiute Parts

V-10-6C5

Omron Electronics Inc-EMC DivIn Stock: 844V-10-6C5 Datasheet

Current PartRFQ

V-15-6C5

Omron Electronics Inc-EMC DivIn Stock: 937V-15-6C5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the V-10-6C5 is determined by the following critical parameters:

Mandatory Matching Parameters:

• Circuit configuration: SPST-NO
• Switch function: Off-Mom (momentary contact)
• Actuator type: Round pin plunger
• Mounting type: Chassis mount
• Termination style: Quick Connect - 0.250" (6.3mm)
• Ingress protection: IP40
• Operating temperature range: -25°C to 80°C
• Mechanical life: 50,000,000 cycles

Allowable Variation Parameters:

• Current rating (AC): Equal to or greater than 10A
• Voltage rating (AC): Equal to or greater than 250V
• Voltage rating (DC): Equal to or greater than 125V
• Current rating (DC): Equal to or greater than 600mA
• Electrical life: May vary based on application requirements
• Operating position and travel specifications: Minor variations acceptable within mechanical envelope constraints

The Omron V-15-6C5 qualifies as a direct substitute because it maintains all mandatory parameters while providing enhanced current capacity (15A AC) and equivalent voltage ratings.

Parameter Comparison

Engineering Selection Recommendations

The V-15-6C5 is suitable as a substitute for the V-10-6C5 based on the following engineering criteria:

Electrical Compatibility: The V-15-6C5 maintains identical voltage ratings (250V AC, 125V DC) and DC current rating (600mA). The increased AC current rating (15A versus 10A) provides margin for applications operating at or below the original 10A specification.

Mechanical Compatibility: Both switches share identical actuator geometry (round pin plunger), mounting configuration (chassis mount), and termination style (quick connect 0.250"). Mechanical life ratings are equivalent at 50,000,000 cycles.

Functional Compatibility: Circuit configuration (SPST-NO) and switch function (Off-Mom momentary) are identical, ensuring drop-in replacement capability in existing designs.

Availability Consideration: The V-10-6C5 is in Last Time Buy status, while the V-15-6C5 is Active. For new designs or ongoing procurement, the V-15-6C5 provides supply continuity.

Electrical Life Trade-off: The V-15-6C5 specifies 100,000 electrical cycles compared to 300,000 cycles for the V-10-6C5. Applications requiring extended electrical life cycling should evaluate this parameter against actual duty cycle requirements.

Frequently Asked Questions (FAQ)

Q: Can the V-15-6C5 directly replace the V-10-6C5 in existing assemblies?

A: Yes. Both switches share identical circuit configuration (SPST-NO), actuator type (round pin plunger), mounting type (chassis mount), and termination style (quick connect 0.250"). Physical and electrical interfaces are compatible.

Q: What is the significance of the higher current rating on the V-15-6C5?

A: The V-15-6C5 is rated for 15A AC at 250V, compared to 10A AC for the V-10-6C5. This higher rating provides design margin for applications operating at the original 10A specification. The substitute will not degrade performance in circuits designed for 10A operation.

Q: Does the lower electrical life rating of the V-15-6C5 affect suitability?

A: The V-15-6C5 specifies 100,000 electrical cycles versus 300,000 for the V-10-6C5. Suitability depends on actual application duty cycle. Applications with electrical cycle counts below 100,000 are unaffected. Applications exceeding 100,000 cycles should evaluate this parameter against specific operational requirements.

Q: Are both switches RoHS compliant?

A: The V-10-6C5 is specified as RoHS Compliant. RoHS compliance status for the V-15-6C5 is not provided in available documentation.

Q: What is the difference in operating position between these switches?

A: The V-10-6C5 specifies an operating position of 0.579" (14.7mm), while the V-15-6C5 specifies 0.598" (15.2mm). This 0.019" difference is within typical mechanical tolerance ranges for chassis-mounted snap action switches and does not affect functional compatibility.

Q: Can I use the V-15-6C5 in applications requiring the exact 300,000 electrical cycle rating?

A: No. If the application specifically requires 300,000 electrical cycles, the V-15-6C5 with its 100,000 cycle rating does not meet this requirement. Alternative sources for the V-10-6C5 or equivalent 300,000-cycle rated switches should be pursued.
