UX60SC-MB-5S8 Equivalent & Substitute Parts

Part Overview

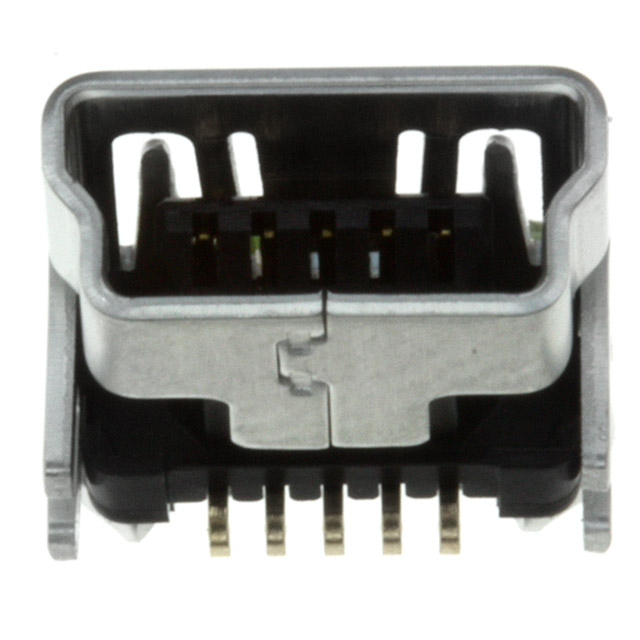

The UX60SC-MB-5S8 is a USB 2.0 mini B receptacle connector manufactured by Hirose Electric Co Ltd, designed for surface mount and through-hole applications with right-angle orientation. This connector features 5 positions and horizontal mounting configuration with solder termination and solder retention capability. The part is currently in Last Time Buy status, making identification of equivalent alternatives essential for ongoing design support and procurement planning.

Substiute Parts

UX60SC-MB-5S8

Hirose Electric Co LtdIn Stock: 2411UX60SC-MB-5S8 Datasheet

Current PartRFQ

UX60SC-MB-5S8(85)

Hirose Electric Co LtdIn Stock: 1146UX60SC-MB-5S8(85) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the UX60SC-MB-5S8 is determined by strict equivalence across the following critical parameters:

• Connector Type: USB - mini B receptacle
• Contact Count: 5 positions
• USB Specification: USB 2.0 compliance
• Mounting Configuration: Surface mount with right-angle, through-hole capability
• Mounting Feature: Horizontal orientation
• Termination Method: Solder with solder retention
• Compliance: RoHS compliant status
• Moisture Sensitivity: MSL 1 rating

The substitute part UX60SC-MB-5S8(85) maintains full equivalence across all these parameters while offering enhanced electrical and mechanical specifications, including defined operating temperature range, current rating, voltage rating, mating cycle rating, shielding, contact finish, and material specifications.

Parameter Comparison

Engineering Selection Recommendations

The UX60SC-MB-5S8(85) is the manufacturer-recommended substitute for the UX60SC-MB-5S8. Both parts maintain identical form factor, connector type, contact configuration, and mounting specifications. The substitute part carries Active product status, ensuring continued availability and supply chain stability compared to the Last Time Buy status of the original part.

Both parts are RoHS compliant and carry MSL 1 rating, meeting regulatory and environmental requirements. The UX60SC-MB-5S8(85) provides fully specified electrical and mechanical performance parameters including operating temperature range, current and voltage ratings, mating cycle endurance, and material certifications, supporting comprehensive design validation and reliability assessment.

Frequently Asked Questions (FAQ)

Q: Can UX60SC-MB-5S8(85) be used as a direct replacement for UX60SC-MB-5S8?

A: Yes. Both parts share identical connector type, contact count, USB 2.0 specification, mounting configuration, and termination method. The substitute maintains full mechanical and electrical compatibility for surface mount and through-hole applications with right-angle horizontal orientation.

Q: What is the significance of the Last Time Buy status for UX60SC-MB-5S8?

A: Last Time Buy status indicates the original part will no longer be manufactured after a specified cutoff date. Transition to the Active-status substitute UX60SC-MB-5S8(85) is necessary for long-term design support and procurement continuity.

Q: Are there packaging differences between these parts?

A: Both parts are supplied in Tape & Reel (TR) packaging format, maintaining identical handling and assembly process compatibility.

Q: Do both parts meet the same compliance standards?

A: Yes. Both UX60SC-MB-5S8 and UX60SC-MB-5S8(85) are RoHS compliant with MSL 1 moisture sensitivity rating and EAR99 ECCN classification.

Q: What additional specifications does the substitute part provide?

A: The UX60SC-MB-5S8(85) includes fully defined operating temperature range (-30°C to 75°C), current rating (1A), voltage rating (30VAC), mating cycle endurance (5000 cycles), shielding configuration, gold contact finish, copper alloy shell material, and UL94 V-0 flammability rating.
