UX60SA-MB-5ST USB 2.0 Mini B Receptacle Connector Equivalent & Substitute Parts

Part Overview

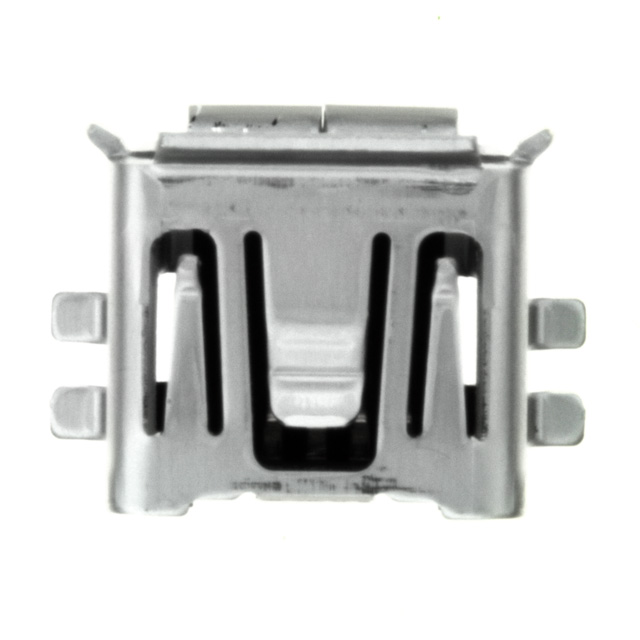

The UX60SA-MB-5ST is a USB 2.0 mini B receptacle connector manufactured by Hirose Electric Co Ltd, designed for surface mount, right-angle applications. This 5-position connector features solder termination and is rated for 1A at 5VAC with 5000 mating cycles. The part is currently marked as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and production continuity.

Key Parameters

Parameter	UX60SA-MB-5ST
Connector Type	USB - mini B
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Surface Mount, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Current Rating	1A
Voltage - Rated	5VAC
Mating Cycles	5000
Shielding	Shielded
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Operating Temperature	-30°C ~ 75°C
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the UX60SA-MB-5ST is determined by strict alignment across the following critical parameters:

Primary Substitution Criteria:

Connector Type: USB - mini B (mandatory)
Number of Contacts: 5 (mandatory)
Gender: Receptacle (mandatory)
Specifications: USB 2.0 (mandatory)
Mounting Type: Surface Mount, Right Angle (mandatory)
Mounting Feature: Horizontal (mandatory)
Termination: Solder (mandatory)
Material Flammability Rating: UL94 V-0 (mandatory)

Secondary Compatibility Parameters:

Current Rating: 1A minimum
Voltage Rating: 5VAC minimum
Mating Cycles: 5000 minimum
Shielding: Shielded
Operating Temperature Range: Must encompass -30°C to 75°C or broader

Substitute parts are grouped into two categories: direct manufacturer equivalents from Hirose Electric Co Ltd and parametric equivalents from alternative manufacturers (TE Connectivity AMP Connectors and GCT) that meet all primary and secondary criteria.

Parameter Comparison

Part Number	Manufacturer	Product Status	Current Rating (A)	Voltage Rating	Mating Cycles	Operating Temp (°C)	Contact Finish	Shell Material	Packaging	Inventory (Pcs)
UX60SA-MB-5ST	Hirose	Obsolete	1	5VAC	5000	-30 ~ 75	Gold	Phosphor Bronze	-	1135
UX60SA-MB-5ST(80)	Hirose	Last Time Buy	-	-	-	-	Gold	Copper Alloy	Tape & Reel	1753
UX60-MB-5ST(70)	Hirose	Active	1	5VAC	5000	-30 ~ 75	-	Copper Alloy	Tape & Reel	897
UX60SC-MB-5ST	Hirose	Last Time Buy	1	30VAC	-	-30 ~ 75	Gold	Phosphor Bronze	Tape & Reel	1837
UX60SC-MB-5ST(80)	Hirose	Last Time Buy	1	30VAC	5000	-30 ~ 75	Gold	Copper Alloy	Cut Tape & Digi-Reel	32714
UX60SC-MB-5ST(85)	Hirose	Active	1	30VAC	5000	-30 ~ 75	Gold	Copper Alloy	Tape & Reel	833
1-1734035-2	TE Connectivity	Active	1	30VAC	5000	-40 ~ 85	Gold	Steel (SUS304)	Cut Tape	4900
1-1734035-3	TE Connectivity	Active	1	30VAC	5000	-40 ~ 85	Gold	Steel (SUS304)	Tape & Reel	659
2-1734035-2	TE Connectivity	Active	1	30VAC	5000	-40 ~ 85	Gold	Steel (SUS304)	Tape & Reel	3969
USB2066-05-RBHM-15-STB-00-00-A	GCT	Active	1	30VDC	5000	-50 ~ 85	Gold	Brass	Tape & Reel	2456

Engineering Selection Recommendations

Hirose Direct Equivalents (Recommended for Pin-Compatible Replacement):

UX60SC-MB-5ST(80) and UX60SC-MB-5ST(85) are the primary Hirose alternatives. Both maintain the same connector geometry, contact configuration, and solder termination as the UX60SA-MB-5ST. UX60SC-MB-5ST(80) offers the highest inventory availability (32,714 pcs) and is compliant with ROHS3. UX60SC-MB-5ST(85) maintains active product status. Both support 5000 mating cycles and operate across the required -30°C to 75°C temperature range. The voltage rating increase to 30VAC provides additional design margin without affecting USB 2.0 signal integrity.

UX60-MB-5ST(70) is an active Hirose variant with confirmed 1A current rating and 5000 mating cycles. This part includes a board guide feature and maintains full parameter compatibility with the original specification.

TE Connectivity Alternatives (Cross-Manufacturer Substitution):

The 1-1734035 series (1-1734035-2 and 1-1734035-3) and 2-1734035-2 from TE Connectivity AMP Connectors provide parametric equivalence with extended operating temperature range (-40°C to 85°C). All three parts are active products with ROHS3 compliance (1-1734035-2 and 2-1734035-2) or RoHS compliance (1-1734035-3). Steel shell material (SUS304) provides enhanced durability compared to phosphor bronze. These parts support 1A current, 30VAC voltage rating, and 5000 mating cycles.

GCT Alternative (Extended Temperature Range):

USB2066-05-RBHM-15-STB-00-00-A from GCT meets all primary substitution criteria with extended operating temperature (-50°C to 85°C) and ROHS3 compliance. Brass shell material and 30VDC rating provide alternative material composition while maintaining electrical compatibility.

Product Status Considerations:

For new designs, prioritize active-status parts: UX60-MB-5ST(70), UX60SC-MB-5ST(85), 1-1734035-2, 1-1734035-3, 2-1734035-2, and USB2066-05-RBHM-15-STB-00-00-A. For legacy production support, UX60SC-MB-5ST(80) offers substantial inventory despite Last Time Buy status.

Frequently Asked Questions (FAQ)

Q: Can UX60SC-MB-5ST(80) directly replace UX60SA-MB-5ST in existing designs?

A: Yes. Both connectors maintain identical USB 2.0 mini B receptacle geometry, 5-position contact configuration, surface mount right-angle mounting, and solder termination. The voltage rating increase from 5VAC to 30VAC does not affect USB 2.0 signal specifications. PCB footprints are compatible.

Q: What is the difference between UX60SA-MB-5ST and UX60SC-MB-5ST variants?

A: The primary difference is shell material composition. UX60SA uses phosphor bronze; UX60SC uses copper alloy. Both maintain identical electrical performance, contact count, and mounting characteristics. The "C" designation in UX60SC indicates the copper alloy variant.

Q: Are TE Connectivity 1-1734035 series connectors mechanically compatible with Hirose UX60 series?

A: Yes. Both manufacturers' USB 2.0 mini B receptacle connectors conform to the same USB 2.0 specification for mechanical and electrical interface. PCB footprints are standardized across compliant manufacturers. The TE Connectivity parts feature steel shell material instead of phosphor bronze or copper alloy, providing enhanced mechanical durability.

Q: What packaging options are available for production quantities?

A: Hirose UX60SC-MB-5ST(80) is available in Cut Tape and Digi-Reel packaging with 32,714 pcs inventory. TE Connectivity 2-1734035-2 is available in Tape & Reel with 3,969 pcs. GCT USB2066-05-RBHM-15-STB-00-00-A is available in Tape & Reel with 2,456 pcs. Packaging selection depends on assembly line equipment compatibility and order quantity requirements.

Q: Does the extended operating temperature range of TE Connectivity parts affect USB 2.0 compliance?

A: No. The extended temperature range (-40°C to 85°C) does not alter USB 2.0 electrical specifications or signal integrity. This extended range provides additional design margin for applications operating outside the original -30°C to 75°C specification.

Q: Are all substitute parts RoHS compliant?

A: Yes. All listed substitute parts carry RoHS or ROHS3 compliance certification. UX60SC-MB-5ST(80) and TE Connectivity 1-1734035-2 and 2-1734035-2 are ROHS3 compliant. UX60SC-MB-5ST(85) and 1-1734035-3 are RoHS compliant. GCT USB2066-05-RBHM-15-STB-00-00-A is ROHS3 compliant.

Q: What is the moisture sensitivity level for these connectors?

A: All Hirose and TE Connectivity parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. GCT USB2066-05-RBHM-15-STB-00-00-A is marked as Not Applicable for MSL, indicating no moisture sensitivity concern.
