UX60-MB-5S8(21) Equivalent & Substitute Parts

Part Overview

The UX60-MB-5S8(21) is a USB 2.0 mini B receptacle connector manufactured by Hirose Electric Co Ltd, designed for surface mount and through-hole applications with right-angle orientation. This connector features 5 positions, gold-plated contacts, and shielded construction suitable for portable and embedded device applications. The product is currently obsolete, making identification of equivalent substitute parts essential for ongoing design support, legacy system maintenance, and component procurement.

Substiute Parts

UX60-MB-5S8(21)

Hirose Electric Co LtdIn Stock: 1003UX60-MB-5S8(21) Datasheet

Current PartRFQ

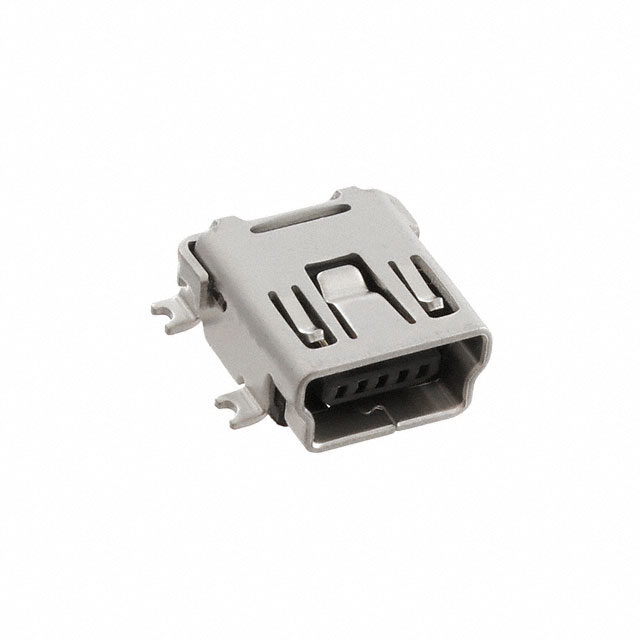

KMBX-SMT-5S-S-30TR

Kycon, Inc.In Stock: 4691KMBX-SMT-5S-S-30TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The KMBX-SMT-5S-S-30TR from Kycon, Inc. qualifies as a parametric equivalent based on the following matching criteria:

Matching Parameters (Substitution Basis):

• Connector Type: USB - mini B
• Number of Contacts: 5
• Gender: Receptacle
• Specifications: USB 2.0
• Mounting Type: Surface Mount, Right Angle; Through Hole
• Mounting Feature: Horizontal
• Termination: Solder
• Current Rating: 1A
• Mating Cycles: 5000
• Shielding: Shielded
• Contact Finish: Gold
• Shell/Shielding Material: Copper Alloy
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part maintains electrical and mechanical compatibility with the original UX60-MB-5S8(21) across all critical functional parameters. The KMBX-SMT-5S-S-30TR is currently in active production status, ensuring long-term availability and supply chain continuity.

Parameter Comparison

Engineering Selection Recommendations

The KMBX-SMT-5S-S-30TR is the qualified substitute for the obsolete UX60-MB-5S8(21). Selection is based on:

Product Status: The substitute part is in active production, ensuring availability for new designs and legacy system support. The original part is obsolete and no longer manufactured.

Compliance & Certifications: Both parts meet UL94 V-0 flammability requirements and carry identical moisture sensitivity ratings (MSL 1). The substitute part is ROHS3 compliant and REACH unaffected, meeting current regulatory standards.

Electrical & Mechanical Compatibility: The substitute maintains identical USB 2.0 specifications, contact configuration, current rating, mating cycle rating, and mounting characteristics. The higher voltage rating (30VAC vs. 5VAC) and extended operating temperature range (-55°C to 85°C vs. -30°C to 75°C) of the substitute part provide additional design margin without compromising compatibility.

Supply Chain Continuity: The substitute part is available in standard Tape & Reel packaging with confirmed inventory, supporting both prototype and production-volume requirements.

Frequently Asked Questions (FAQ)

Q: Can the KMBX-SMT-5S-S-30TR directly replace the UX60-MB-5S8(21) in existing designs?

A: Yes. Both connectors share identical USB 2.0 mini B receptacle specifications, 5-position contact configuration, gold-plated termination, and horizontal surface mount/through-hole mounting. Mechanical and electrical compatibility is maintained across all functional parameters.

Q: What are the key differences between these two parts?

A: The primary differences are product status and operating specifications. The UX60-MB-5S8(21) is obsolete; the KMBX-SMT-5S-S-30TR is in active production. The substitute part has a higher rated voltage (30VAC vs. 5VAC) and wider operating temperature range (-55°C to 85°C vs. -30°C to 75°C). These differences favor the substitute part for new designs and long-term availability.

Q: Are there packaging considerations when switching to the KMBX-SMT-5S-S-30TR?

A: The substitute part is supplied in Tape & Reel (TR) packaging, which is standard for surface mount production. The original part packaging information was not specified. Tape & Reel format is compatible with automated assembly equipment and is suitable for both prototype and high-volume manufacturing.

Q: Do both parts meet the same regulatory and compliance standards?

A: Both parts meet UL94 V-0 flammability requirements and carry MSL 1 (unlimited moisture sensitivity). The substitute part additionally carries ROHS3 compliance and REACH unaffected status, meeting current environmental and regulatory requirements.

Q: Is the higher voltage rating of the substitute part a concern for 5VAC applications?

A: No. The 30VAC rating of the KMBX-SMT-5S-S-30TR is a maximum specification. It is fully compatible with 5VAC applications and provides additional design margin. Higher voltage ratings do not create compatibility issues in lower-voltage circuits.
