Equivalent & Substitute Parts for UX10E10C01

Part Overview

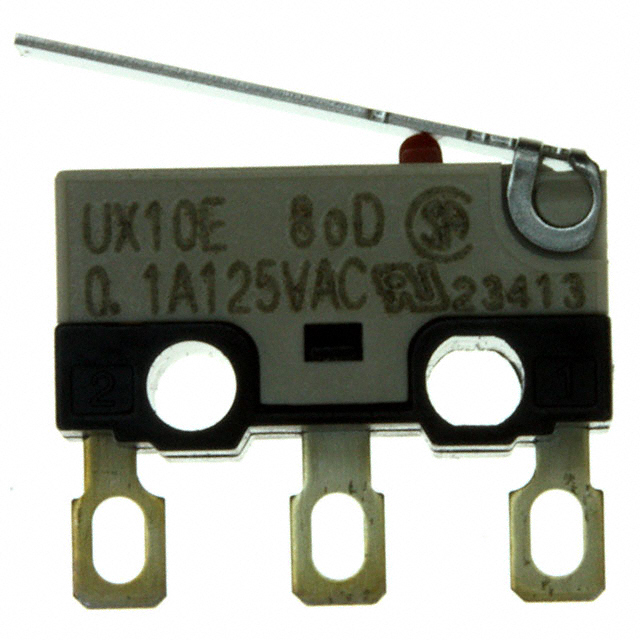

The UX10E10C01 is a snap-action SPDT (Single Pole Double Throw) switch manufactured by Honeywell Sensing and Productivity Solutions. This chassis-mounted switch is rated for 100mA at 125V AC and 30V DC, featuring a straight lever actuator with solder lug termination. The product is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing applications and new designs.

Substiute Parts

UX10E10C01

Honeywell Sensing and Productivity SolutionsIn Stock: 899UX10E10C01 Datasheet

Current PartRFQ

ZX10E10C01

Honeywell Sensing and Productivity SolutionsIn Stock: 1537ZX10E10C01 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete UX10E10C01 is based on the following critical parameters that must align between the original and substitute part:

Primary Compatibility Criteria:

• Circuit configuration (SPDT)
• Switch function (On-Momentary)
• Current rating (100mA minimum)
• Actuator type (Lever, Straight)
• Mounting type (Chassis Mount)
• Termination style (Solder Lug)

Secondary Compatibility Considerations:

• Voltage rating compatibility with application requirements
• Operating temperature range suitability
• Regulatory compliance (RoHS, REACH)

The ZX10E10C01 meets the primary compatibility criteria as an active product alternative. While voltage ratings differ (48V DC for ZX10E10C01 versus 125V AC/30V DC for UX10E10C01), the substitute is suitable for applications operating within its specified voltage envelope.

Parameter Comparison

Engineering Selection Recommendations

The ZX10E10C01 is the designated substitute for the obsolete UX10E10C01. Selection of this alternative is supported by the following factors:

Functional Equivalence: Both parts share identical circuit configuration (SPDT), switch function (On-Momentary), current rating (100mA), actuator type (Lever, Straight), mounting type (Chassis Mount), and termination style (Solder Lug).

Product Status: The ZX10E10C01 is an active product with documented inventory availability, ensuring long-term supply continuity compared to the obsolete UX10E10C01.

Regulatory Compliance: The ZX10E10C01 meets RoHS3 compliance and REACH unaffected status, satisfying current regulatory requirements. Both parts carry EAR99 ECCN classification and identical HTSUS codes (8536.50.7000).

Operating Envelope: The ZX10E10C01 provides an extended operating temperature range (-40°C to 120°C) compared to the original (-25°C to 85°C), offering improved performance in temperature-sensitive applications.

Mechanical and Electrical Life: The ZX10E10C01 specifies 1,000,000 cycles for both electrical and mechanical life, providing documented reliability metrics absent from the original part specifications.

Voltage Consideration: Applications currently operating at 125V AC or 30V DC must evaluate compatibility with the ZX10E10C01's 48V DC rating. The substitute is suitable for DC applications within this voltage specification.

Frequently Asked Questions (FAQ)

Q: Can the ZX10E10C01 directly replace the UX10E10C01 in all applications?

A: The ZX10E10C01 is functionally equivalent for applications operating within its specified voltage envelope (48V DC). Applications requiring 125V AC operation must be evaluated separately, as the substitute does not specify AC voltage rating.

Q: What are the key differences between these parts?

A: Primary differences include voltage rating (UX10E10C01: 125V AC/30V DC; ZX10E10C01: 48V DC), operating temperature range (UX10E10C01: -25°C to 85°C; ZX10E10C01: -40°C to 120°C), and documented life cycles (ZX10E10C01: 1,000,000 cycles). Mechanical parameters also differ slightly in operating position, pretravel, and differential travel.

Q: Are there packaging differences between the original and substitute?

A: The UX10E10C01 packaging is listed as standard, while the ZX10E10C01 is supplied in bulk packaging. Both parts use identical termination style (Solder Lug) and mounting type (Chassis Mount).

Q: What is the operating force difference between these switches?

A: The UX10E10C01 requires 50gf operating force, while the ZX10E10C01 requires 48gf. This 2gf difference is negligible for most applications. The release force differs more significantly (UX10E10C01: 5.000gf; ZX10E10C01: 8.000gf).

Q: Are both parts RoHS compliant?

A: Yes. The UX10E10C01 is RoHS Compliant, and the ZX10E10C01 is RoHS3 Compliant. Both meet current regulatory requirements, with RoHS3 representing the current standard.

Q: What is the inventory status for these parts?

A: The UX10E10C01 (obsolete) has 869 pieces in stock. The ZX10E10C01 (active) has 1,443 pieces in stock, providing superior availability for new orders and ongoing supply.
