Nichicon UVR1H101MPD Equivalent & Substitute Parts
Part Overview

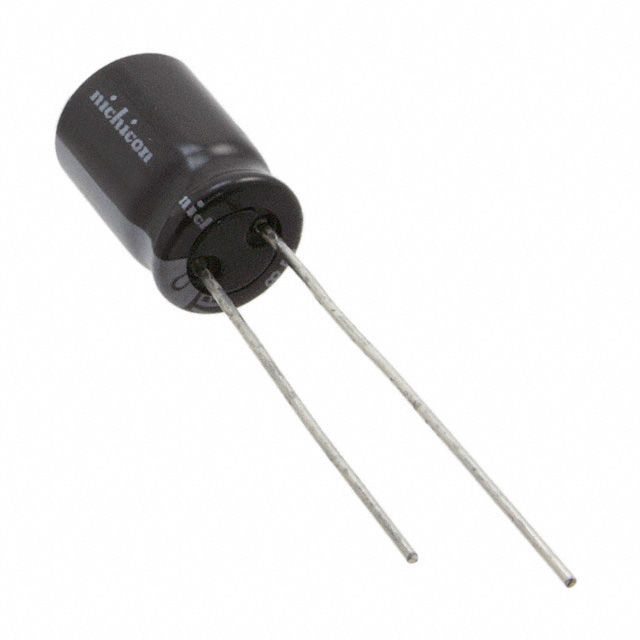

The Nichicon UVR1H101MPD is a 100 µF, 50 V aluminum electrolytic capacitor in radial, can package format with a rated lifetime of 2000 hours at 85°C. This component is classified as "Not For New Designs," indicating it has reached end-of-life status. Finding equivalent and substitute parts is necessary for legacy system maintenance, repair operations, and inventory replenishment where original stock is depleted.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating | 50 V |
| Tolerance | ±20% |
| Lifetime @ Temperature | 2000 Hrs @ 85°C |
| Operating Temperature Range | -40°C ~ 85°C |
| Ripple Current @ 120 Hz | 260 mA |
| Ripple Current @ 10 kHz | 390 mA |
| Lead Spacing | 0.138" (4.60 mm) |
| Case Diameter | 0.315" (8.00 mm) |
| Height | 0.512" (13.00 mm) |
| Mounting Type | Through Hole |
| Package | Radial, Can |
| RoHS Status | ROHS3 Compliant |
Substitute Part Grouping Explanation
Substitution eligibility is determined by strict adherence to the following parameters:
Critical Parameters (Must Match):
- Capacitance: 100 µF
- Voltage Rating: 50 V
- Tolerance: ±20%
- Lead Spacing: 0.138" (4.60 mm)
- Case Diameter: 0.315" (8.00 mm)
- Height: 0.512" (13.00 mm)
- Mounting Type: Through Hole
- Package: Radial, Can
- Polarization: Polar
Allowable Variations:
- Lifetime @ Temperature: May exceed 2000 Hrs @ 85°C
- Operating Temperature Range: May extend beyond -40°C ~ 85°C
- Ripple Current: May exceed specified values
- ESR/Impedance: May be lower than original
- Packaging Format: Bulk or Tape & Box acceptable
- Product Status: Active or Not For New Designs acceptable
- Manufacturer: Different manufacturers acceptable if parameters match
Substitute parts are grouped into three categories: Direct equivalents (identical packaging), Upgrade options (enhanced performance specifications), and Parametric equivalents (same electrical and mechanical specifications with different series designation).
Parameter Comparison
| Part Number | Manufacturer | Capacitance | Voltage | Tolerance | Lifetime @ Temp | Operating Temp | Ripple @ 120 Hz | Ripple @ 10/100 kHz | Lead Spacing | Case Dia | Height | Product Status | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UVR1H101MPD | Nichicon | 100 µF | 50 V | ±20% | 2000 Hrs @ 85°C | -40°C ~ 85°C | 260 mA | 390 mA @ 10 kHz | 0.138" | 0.315" | 0.512" | Not For New Designs | Bulk |
| UVR1H101MPD1TA | Nichicon | 100 µF | 50 V | ±20% | 2000 Hrs @ 85°C | -40°C ~ 85°C | 260 mA | 390 mA @ 10 kHz | 0.138" | 0.315" | 0.512" | Not For New Designs | Tape & Box |
| UHD1H101MPD | Nichicon | 100 µF | 50 V | ±20% | 3000 Hrs @ 105°C | -40°C ~ 105°C | 506.8 mA | 724 mA @ 100 kHz | 0.138" | 0.315" | 0.512" | Not For New Designs | Bulk |
| UKA1H101MPD | Nichicon | 100 µF | 50 V | ±20% | 2000 Hrs @ 105°C | -55°C ~ 105°C | 190 mA | 285 mA @ 10 kHz | 0.138" | 0.315" | 0.512" | Not For New Designs | Bulk |
| UVK1J101MPD | Nichicon | 100 µF | 63 V | ±20% | 2000 Hrs @ 85°C | -40°C ~ 85°C | 280 mA | 420 mA @ 10 kHz | 0.138" | 0.315" | 0.512" | Not For New Designs | Bulk |
| UVK1H101MPD | Nichicon | 100 µF | 50 V | ±20% | 2000 Hrs @ 85°C | -40°C ~ 85°C | 260 mA | 390 mA @ 10 kHz | 0.138" | 0.315" | 0.512" | Not For New Designs | Bulk |
| UVR1H101MPD1FA | Nichicon | 100 µF | 50 V | ±20% | 2000 Hrs @ 85°C | -40°C ~ 85°C | 260 mA | 390 mA @ 10 kHz | 0.138" | 0.315" | 0.512" | Active | Bulk |
| 107CKH050M | Cornell Dubilier / Illinois Capacitor | 100 µF | 50 V | ±20% | 2000 Hrs @ 105°C | -40°C ~ 105°C | 230 mA | 379.5 mA @ 100 kHz | 0.138" | 0.315" | 0.512" | Active | Bulk |
| 107KXM050M | Cornell Dubilier / Illinois Capacitor | 100 µF | 50 V | ±20% | 3000 Hrs @ 105°C | -55°C ~ 105°C | 244 mA | 610 mA @ 100 kHz | 0.138" | 0.315" | 0.512" | Active | Bulk |
| 107RZM050M | Cornell Dubilier / Illinois Capacitor | 100 µF | 50 V | ±20% | 3000 Hrs @ 105°C | -55°C ~ 105°C | — | — | 0.138" | 0.315" | 0.512" | Active | Bulk |
| 50YXF100MEFC8X11.5 | Rubycon | 100 µF | 50 V | ±20% | 7000 Hrs @ 105°C | -40°C ~ 105°C | 280 mA | 400 mA @ 100 kHz | 0.138" | 0.315" | 0.512" | Last Time Buy | Bulk |
Engineering Selection Recommendations
Direct Equivalent (Same Packaging & Specifications): UVR1H101MPD1TA is a direct equivalent available in Tape & Box packaging. This variant maintains identical electrical and mechanical specifications while offering alternative packaging for automated assembly processes. Both Nichicon UVR series parts are classified "Not For New Designs."
Active Product Alternative: UVR1H101MPD1FA is the Active product status variant within the Nichicon UVR series. It provides the same electrical and mechanical specifications as the original UVR1H101MPD with current manufacturing support and availability assurance.
Enhanced Performance Options: UHD1H101MPD (Nichicon) and 107KXM050M (Cornell Dubilier) offer extended lifetime ratings of 3000 hours at 105°C, compared to the original 2000 hours at 85°C. These upgrades provide improved reliability margins for applications requiring extended operational life. Both maintain identical physical dimensions and lead spacing.
Cross-Manufacturer Alternatives: 107CKH050M, 107KXM050M, and 107RZM050M from Cornell Dubilier / Illinois Capacitor are direct parametric equivalents meeting all critical electrical and mechanical specifications. These parts are Active status products with established supply chains.
Extended Lifetime Option: 50YXF100MEFC8X11.5 from Rubycon provides 7000 hours at 105°C lifetime rating, the highest among available substitutes. This part is classified "Last Time Buy," indicating limited future availability.
All substitute parts listed maintain ROHS3 compliance and identical through-hole mounting configuration with 0.138" lead spacing and 8.00 mm case diameter.
Frequently Asked Questions (FAQ)
Q: Can I use UVK1J101MPD as a substitute for UVR1H101MPD? A: No. UVK1J101MPD has a 63 V voltage rating, while UVR1H101MPD is rated 50 V. Although higher voltage ratings provide design margin, this part does not meet the critical parameter match requirement for direct substitution.
Q: What is the difference between UVR1H101MPD and UVR1H101MPD1FA? A: Both parts are electrically and mechanically identical with matching 100 µF capacitance, 50 V rating, and physical dimensions. The primary difference is product status: UVR1H101MPD is "Not For New Designs" while UVR1H101MPD1FA is "Active," indicating current manufacturing and supply availability.
Q: Are Cornell Dubilier parts 107CKH050M and 107KXM050M interchangeable with Nichicon UVR1H101MPD? A: Yes. Both Cornell Dubilier parts meet all critical parameters: 100 µF capacitance, 50 V rating, ±20% tolerance, identical lead spacing (0.138"), case diameter (0.315"), and height (0.512"). Both are Active status products with established supply chains. 107KXM050M offers extended lifetime (3000 Hrs @ 105°C) compared to the original specification.
Q: What packaging options are available? A: UVR1H101MPD1TA is available in Tape & Box (TB) packaging for automated assembly. All other listed substitutes are available in Bulk packaging. Both packaging formats are acceptable for through-hole mounting applications.
Q: Does UHD1H101MPD provide better performance than the original UVR1H101MPD? A: UHD1H101MPD extends the operating temperature range to 105°C and provides 3000 hours lifetime at 105°C versus 2000 hours at 85°C for the original. It also offers higher ripple current capability (506.8 mA @ 120 Hz versus 260 mA). These enhancements provide improved reliability margins while maintaining identical physical dimensions and lead spacing.
Q: Is the Rubycon 50YXF100MEFC8X11.5 a suitable replacement? A: Yes. The Rubycon part meets all critical electrical and mechanical specifications with 100 µF capacitance, 50 V rating, and identical physical dimensions. It offers the highest lifetime rating (7000 Hrs @ 105°C) among available options. Note that this part is classified "Last Time Buy," indicating limited future availability.
Q: Can I substitute parts with different manufacturers? A: Yes. All listed substitutes from Cornell Dubilier and Rubycon meet the critical parameter requirements for the Nichicon UVR1H101MPD. Cross-manufacturer substitution is valid when electrical specifications, mechanical dimensions, and lead spacing match exactly.
Q: What should I verify before implementing a substitute part? A: Verify that the substitute part matches these critical parameters: 100 µF capacitance, 50 V voltage rating, ±20% tolerance, 0.138" lead spacing, 0.315" case diameter, 0.512" height, and through-hole mounting configuration. Confirm RoHS compliance status matches your application requirements.
