UTS1JC106S Equivalent & Substitute Parts

Part Overview

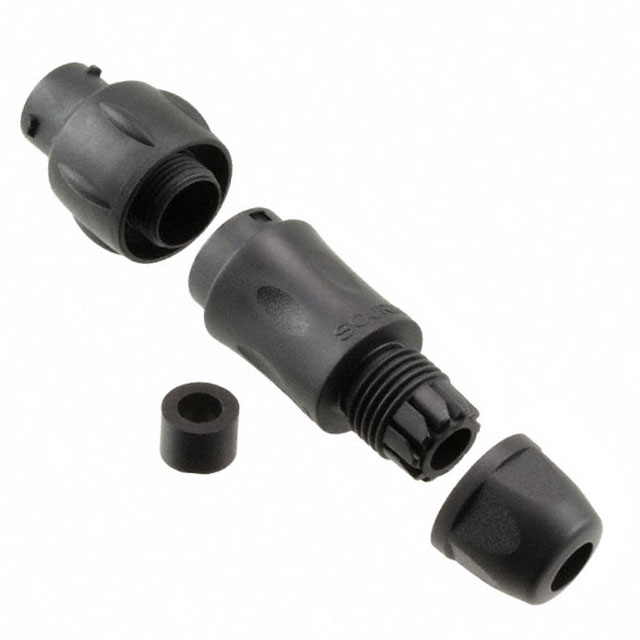

The UTS1JC106S is a 6-position circular connector receptacle housing manufactured by Souriau-Sunbank by Eaton. This free-hanging (in-line) backshell connector is designed for female socket applications with bayonet lock fastening. The component is currently active in production with 672 pieces available in new original inventory stock.

Equivalent and substitute parts are identified when component availability is limited, supply chain disruptions occur, or design flexibility permits cross-manufacturer sourcing while maintaining electrical and mechanical compatibility.

Substiute Parts

UTS1JC106S

Souriau-Sunbank by EatonIn Stock: 707UTS1JC106S Datasheet

Current PartRFQ

RTS1BS10N6S03

Amphenol Sine Systems CorpIn Stock: 1056RTS1BS10N6S03 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the UTS1JC106S is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 6
• Shell Size - Insert: 10-6
• Contact Type: Crimp
• Contact Size: 20
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Bayonet Lock
• Connector Type: Receptacle Housing for Female Sockets
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant

Allowable Variations:

• Shell Material: Polyamide (PA), Nylon or Thermoplastic
• Ingress Protection: IP67/IP69K or IP68/IP69K
• Operating Temperature Range: -40°C minimum and 105°C or higher maximum
• Insert Material: Polyamide (PA), Nylon or Thermoplastic

The substitute part RTS1BS10N6S03 meets all mandatory matching parameters and falls within allowable variations for shell material, ingress protection rating, and operating temperature range.

Parameter Comparison

Engineering Selection Recommendations

Both the UTS1JC106S and RTS1BS10N6S03 are active production components with ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic component sourcing.

The UTS1JC106S provides an ingress protection rating of IP68/IP69K, representing the highest dust and water resistance classification. The RTS1BS10N6S03 provides IP67/IP69K protection, which maintains dust-tight and waterproof characteristics suitable for most industrial applications.

The RTS1BS10N6S03 operates across an extended temperature range of -40°C to 125°C compared to the UTS1JC106S range of -40°C to 105°C. This extended upper temperature limit provides additional thermal margin in high-temperature operating environments.

Both components utilize identical contact specifications (crimp type, size 20) and bayonet lock fastening, ensuring mechanical and electrical compatibility in mating applications.

Frequently Asked Questions (FAQ)

Q: Can RTS1BS10N6S03 be used as a direct replacement for UTS1JC106S?

A: Yes. Both components share identical position count (6), shell size (10-6), contact type and size (crimp, 20), mounting configuration (free hanging in-line), and fastening mechanism (bayonet lock). Both meet UL94 V-0 flammability and ROHS3 compliance requirements.

Q: What is the difference in ingress protection ratings?

A: The UTS1JC106S provides IP68/IP69K protection. The RTS1BS10N6S03 provides IP67/IP69K protection. Both ratings indicate dust-tight and waterproof operation. IP68 permits continuous immersion; IP67 permits temporary immersion. Selection depends on specific application requirements.

Q: Are there temperature range differences?

A: The UTS1JC106S operates from -40°C to 105°C. The RTS1BS10N6S03 operates from -40°C to 125°C. The substitute part provides a 20°C higher maximum operating temperature, suitable for elevated-temperature applications.

Q: Do both parts include the same accessories?

A: The UTS1JC106S is supplied without contacts. The RTS1BS10N6S03 includes 6 pieces: 1 connector, 1 backshell, 1 clamp ring, 1 nut, 1 O-ring, and 1 seal. Verify accessory requirements for your application.

Q: Are both parts available in current inventory?

A: Yes. The UTS1JC106S has 672 pieces in new original stock. The RTS1BS10N6S03 has 984 pieces in new original stock.

Q: What shell materials are used?

A: The UTS1JC106S uses polyamide (PA) nylon. The RTS1BS10N6S03 uses thermoplastic. Both materials meet UL94 V-0 flammability requirements and provide equivalent mechanical performance for this connector class.
