USF0J330MDD Equivalent & Substitute Parts

Part Overview

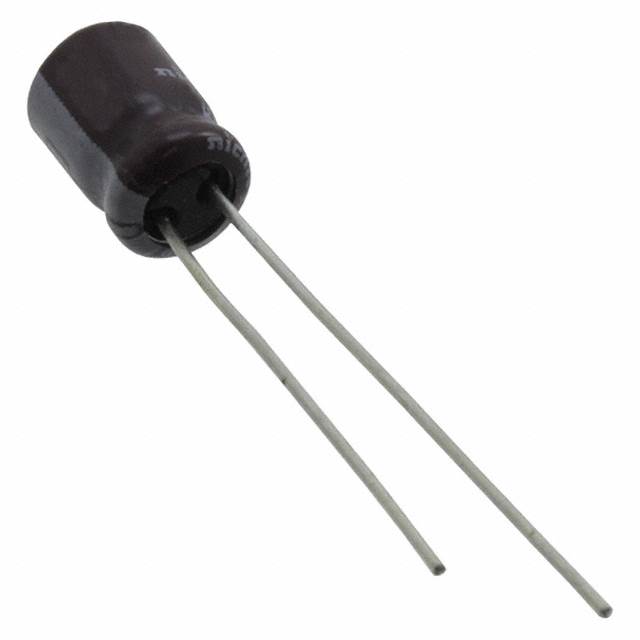

The USF0J330MDD is a 33 µF, 6.3 V aluminum electrolytic capacitor in radial through-hole configuration manufactured by Nichicon. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing design support and production continuity. The part operates across a temperature range of -55°C to 105°C with a rated lifetime of 1000 hours at 105°C, serving general-purpose applications requiring stable capacitance and low impedance characteristics.

Key Parameters

Parameter	Value
Capacitance	33 µF
Voltage Rating	6.3 V
Tolerance	±20%
Mounting Type	Through Hole
Package Type	Radial, Can
Operating Temperature Range	-55°C to 105°C
Lifetime @ 105°C	1000 Hrs
Polarization	Polar
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the USF0J330MDD is determined by the following critical parameters: capacitance value (33 µF), voltage rating (minimum 6.3 V), tolerance (±20%), and mounting compatibility. The two identified substitute parts differ in specific technical attributes while maintaining functional equivalence within defined constraints.

RNS1C330MDS1 qualifies as a substitute despite its higher voltage rating (16 V) and polymer dielectric type, as it maintains identical capacitance and tolerance specifications. The increased voltage rating provides design margin without compromising circuit performance. This part is classified as active and offers improved lifetime (2000 Hrs @ 105°C) and lower ESR (49 mOhm).

UWT0J330MCL1GB qualifies as a substitute based on matching capacitance, voltage, and tolerance specifications. However, this part employs surface-mount technology rather than through-hole mounting, requiring PCB redesign and assembly process modification. It maintains the same voltage rating and operating temperature range as the original part.

Parameter Comparison

Parameter	USF0J330MDD	RNS1C330MDS1	UWT0J330MCL1GB
Capacitance	33 µF	33 µF	33 µF
Voltage Rating	6.3 V	16 V	6.3 V
Tolerance	±20%	±20%	±20%
Operating Temperature	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C
Lifetime @ 105°C	1000 Hrs	2000 Hrs	1000 Hrs
Mounting Type	Through Hole	Through Hole	Surface Mount
Package Type	Radial, Can	Radial, Can	Radial, Can - SMD
Product Status	Obsolete	Active	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

For direct through-hole replacement: RNS1C330MDS1 is the preferred substitute. This part maintains identical mounting technology and package footprint compatibility while offering active product status, extended lifetime rating, and improved electrical characteristics. The higher voltage rating (16 V versus 6.3 V) provides additional design margin without introducing compatibility issues in circuits designed for 6.3 V operation.

For surface-mount applications: UWT0J330MCL1GB serves as the appropriate substitute when PCB redesign to surface-mount technology is feasible. This part maintains voltage and capacitance specifications while reducing board space requirements. Assembly process modification is required.

Both substitute parts maintain ROHS3 compliance and REACH unaffected status, ensuring regulatory alignment with the original component.

Frequently Asked Questions (FAQ)

Q: Can RNS1C330MDS1 be used as a direct replacement for USF0J330MDD in existing through-hole designs?

A: Yes. RNS1C330MDS1 maintains identical lead spacing (2.50 mm versus 2.00 mm requires verification), capacitance, tolerance, and operating temperature specifications. The higher voltage rating (16 V) does not create compatibility issues in circuits specified for 6.3 V operation. Verify physical dimensions and lead spacing compatibility with PCB layout before implementation.

Q: What are the key differences between RNS1C330MDS1 and USF0J330MDD?

A: RNS1C330MDS1 uses aluminum-polymer dielectric technology versus the standard aluminum electrolytic construction of USF0J330MDD. This results in lower ESR (49 mOhm), extended lifetime (2000 Hrs versus 1000 Hrs @ 105°C), and higher ripple current capability. The voltage rating is increased to 16 V. Both parts maintain ±20% tolerance and -55°C to 105°C operating range.

Q: Why is UWT0J330MCL1GB not suitable for direct PCB replacement?

A: UWT0J330MCL1GB employs surface-mount technology with a different package footprint and land pattern (5.30 mm x 5.30 mm) compared to the through-hole radial configuration of USF0J330MDD. PCB redesign and reflow soldering assembly processes are required. This part is appropriate only for new designs or boards undergoing redesign.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. Both RNS1C330MDS1 and UWT0J330MCL1GB are ROHS3 compliant and REACH unaffected, matching the regulatory status of USF0J330MDD.

Q: What is the impact of using a 16 V rated capacitor in a 6.3 V circuit?

A: No negative impact occurs. The 16 V rating indicates maximum voltage withstand capability. Operating at 6.3 V provides design margin and typically improves component reliability and lifetime. Capacitance and tolerance specifications remain unchanged.
