USB-B-S-S-W-SM-R-TR Equivalent & Substitute Parts

Part Overview

The USB-B-S-S-W-SM-R-TR is a USB 2.0 Type-B receptacle connector manufactured by Samtec Inc., designed for surface mount, right-angle applications. This 4-position connector features solder termination with board guide and solder retention capabilities. The part is currently active in production with 1004 units in stock.

Equivalent and substitute parts are identified when components share identical electrical specifications, mechanical mounting characteristics, and functional performance within the USB 2.0 Type-B receptacle category. Substitutes enable design flexibility, supply chain optimization, and component availability management across manufacturing environments.

Substiute Parts

USB-B-S-S-W-SM-R-TR

Samtec Inc.In Stock: 1081USB-B-S-S-W-SM-R-TR Datasheet

Current PartRFQ

USB-B-S-F-B-SM-TR

Samtec Inc.In Stock: 1713USB-B-S-F-B-SM-TR Datasheet

Parametric EquivalentRFQ

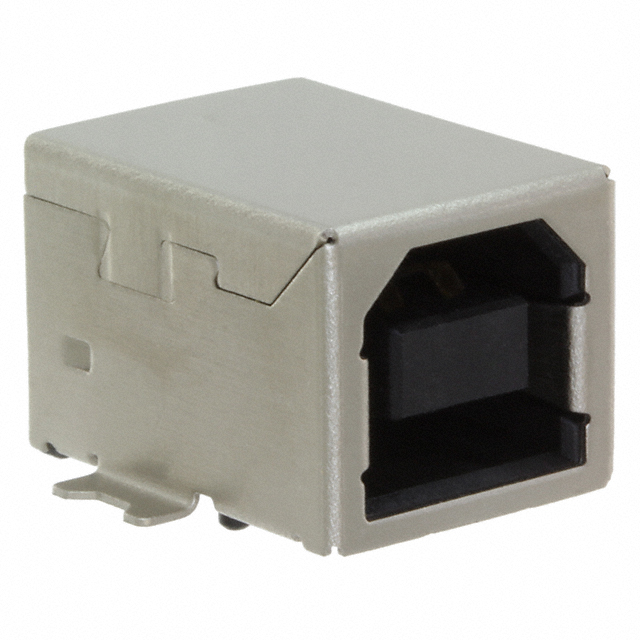

USB-B-S-S-B-SM-TR

Samtec Inc.In Stock: 1297USB-B-S-S-B-SM-TR Datasheet

Parametric EquivalentRFQ

USB-B-S-S-W-SM-TR

Samtec Inc.In Stock: 2081USB-B-S-S-W-SM-TR Datasheet

Parametric EquivalentRFQ

1-1734346-1

TE Connectivity AMP ConnectorsIn Stock: 1094821-1734346-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for USB-B-S-S-W-SM-R-TR is determined by the following critical parameters:

Electrical Compatibility: USB 2.0 specification, 4-position contact configuration, 30VAC rated voltage, and 1500 mating cycle rating.

Mechanical Compatibility: Surface mount technology, right-angle orientation, horizontal mounting feature, and solder termination method.

Environmental Compliance: Operating temperature range, material flammability rating (UL94 V-0), and contact finish (gold plating).

Functional Features: Board guide and solder retention capabilities.

Substitute parts must maintain identical values across all these parameters. Variations in insulation color, packaging format (Tape & Reel vs. Cut Tape), or manufacturer do not affect functional substitutability when all electrical and mechanical specifications align.

Parameter Comparison

Engineering Selection Recommendations

Samtec Inc. Substitutes (USB-B-S-F-B-SM-TR, USB-B-S-S-B-SM-TR, USB-B-S-S-W-SM-TR):

All three Samtec alternatives meet the complete electrical and mechanical specification set of the main part. These components are functionally interchangeable with USB-B-S-S-W-SM-R-TR. Selection among these Samtec options depends on insulation color requirements: white insulation (USB-B-S-S-W-SM-TR) matches the main part exactly, while black insulation variants (USB-B-S-F-B-SM-TR, USB-B-S-S-B-SM-TR) provide alternatives for applications where insulation color is not a design constraint. All Samtec parts carry ROHS3 compliance and MSL 1 (Unlimited) rating.

TE Connectivity Substitute (1-1734346-1):

The TE Connectivity part 1-1734346-1 shares all critical electrical and mechanical parameters with the main part. However, the operating temperature range is restricted to 0°C ~ 50°C, compared to the main part's -50°C ~ 85°C range. This substitute is suitable for applications operating within the 0°C to 50°C envelope. The part is supplied in Cut Tape (CT) packaging rather than Tape & Reel format. Current rating is specified as 1A for this component. TE Connectivity part carries ROHS3 compliance and MSL 1 (Unlimited) rating.

Selection Criteria:

For applications requiring the full -50°C to 85°C operating temperature range, select from Samtec alternatives. For applications limited to 0°C to 50°C operation, the TE Connectivity part is acceptable. Packaging format (Tape & Reel vs. Cut Tape) should be evaluated based on assembly line requirements and component handling procedures.

Frequently Asked Questions (FAQ)

Q: Can USB-B-S-F-B-SM-TR replace USB-B-S-S-W-SM-R-TR in all applications?

A: Yes, from an electrical and mechanical standpoint. The only difference is insulation color (black vs. white). If insulation color is not specified in your design requirements, this part is functionally equivalent.

Q: What is the significance of the packaging difference between Tape & Reel and Cut Tape formats?

A: Tape & Reel packaging is optimized for high-volume automated assembly lines with pick-and-place equipment. Cut Tape packaging is suitable for lower-volume production or manual assembly processes. The connector itself is identical; packaging affects handling and assembly methodology only.

Q: Is the TE Connectivity part 1-1734346-1 suitable for all temperature environments?

A: The TE Connectivity part operates from 0°C to 50°C. If your application requires operation below 0°C or above 50°C, this part is not suitable. Samtec alternatives support -50°C to 85°C and are required for extended temperature range applications.

Q: Do all substitute parts meet the same compliance standards?

A: All listed substitutes are ROHS3 compliant, UL94 V-0 rated, and carry MSL 1 (Unlimited) moisture sensitivity level. All parts are active in production status.

Q: What determines whether a part can substitute for USB-B-S-S-W-SM-R-TR?

A: Substitution is determined by matching USB 2.0 specification, 4-position receptacle configuration, surface mount right-angle orientation, solder termination, 30VAC voltage rating, 1500 mating cycle rating, gold contact finish, and UL94 V-0 flammability rating. Operating temperature range and packaging format are secondary considerations that may restrict substitutability in specific applications.

Q: Can I use USB-B-S-S-W-SM-TR (without the -R suffix) as a substitute?

A: Yes. The -R designation in the main part number indicates a specific variant, but USB-B-S-S-W-SM-TR maintains all critical electrical and mechanical specifications required for functional equivalence.
