USB-B-S-S-B-TH-TR Equivalent & Substitute Parts

Part Overview

The USB-B-S-S-B-TH-TR is a USB 2.0 Type-B receptacle connector manufactured by Samtec Inc., designed for through-hole, right-angle mounting applications. This connector features a 4-position configuration with solder termination and board lock functionality. The part maintains Active product status and is RoHS3 compliant, making it suitable for current production environments. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, allowing for design flexibility and supply chain optimization.

Substiute Parts

USB-B-S-S-B-TH-TR

Samtec Inc.In Stock: 828USB-B-S-S-B-TH-TR Datasheet

Current PartRFQ

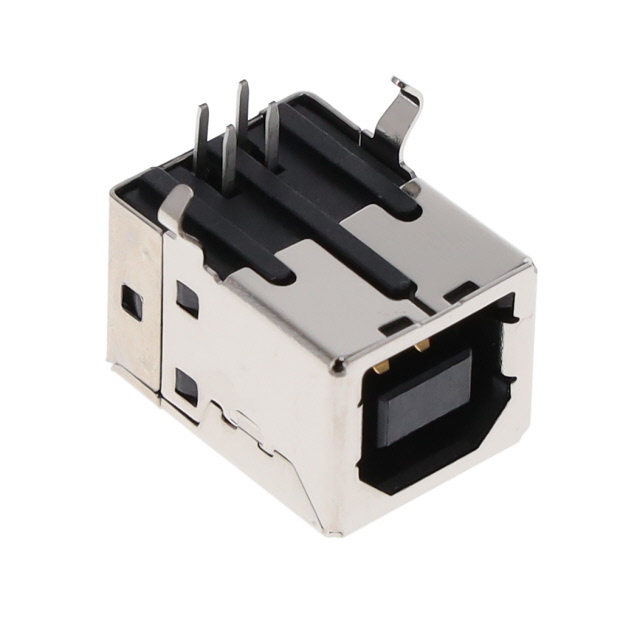

USB-B-S-F-B-TH-TR

Samtec Inc.In Stock: 1541USB-B-S-F-B-TH-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for USB-B Type-B receptacle connectors is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Criteria:

• Connector Type: USB-B (USB TYPE-B)
• Specifications: USB 2.0
• Number of Contacts: 4
• Gender: Receptacle
• Voltage Rating: 30VAC
• Mating Cycles: 1500

Mechanical Equivalence Criteria:

• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Termination: Solder
• Contact Finish: Gold
• Shell/Shielding Material: Steel

Compliance Equivalence Criteria:

• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99

Substitute parts must maintain all electrical, mechanical, and compliance parameters. Variations in packaging format (Tape & Reel vs. Cut Tape) and insulation color do not affect functional equivalence. Moisture Sensitivity Level differences are permissible when the substitute part maintains or exceeds environmental protection standards.

Parameter Comparison

Engineering Selection Recommendations

The USB-B-S-F-B-TH-TR qualifies as a direct functional equivalent to the USB-B-S-S-B-TH-TR based on complete parameter alignment across electrical, mechanical, and compliance specifications. Both parts are manufactured by Samtec Inc., maintain Active product status, and satisfy ROHS3 compliance requirements.

Selection between these parts should be based on:

Packaging Requirements: The main part is supplied in Tape & Reel format, suitable for automated assembly processes. The substitute part is supplied in Cut Tape format, appropriate for manual assembly or lower-volume applications.

Inventory Availability: The substitute part (USB-B-S-F-B-TH-TR) maintains higher inventory levels (1486 Pcs) compared to the main part (803 Pcs), providing supply chain flexibility.

Environmental Conditions: Both parts operate across the identical temperature range (-50°C ~ 85°C) and maintain equivalent environmental protection ratings. The Moisture Sensitivity Level difference does not impact functional performance in standard operating environments.
