USB-A-S-F-B-SM2 Equivalent & Substitute Parts

Part Overview

The USB-A-S-F-B-SM2 is a USB 2.0 Type-A connector manufactured by Samtec Inc., classified within the USB, DVI, HDMI Connectors category. This component functions as a USB interface connector for surface mount applications. The part maintains Active product status with 925 units currently in stock. Substitute parts are identified when equivalent electrical specifications and mechanical mounting characteristics align with the original component, enabling design flexibility and supply chain optimization.

Substiute Parts

USB-A-S-F-B-SM2-R

Samtec Inc.In Stock: 998USB-A-S-F-B-SM2-R Datasheet

Current PartRFQ

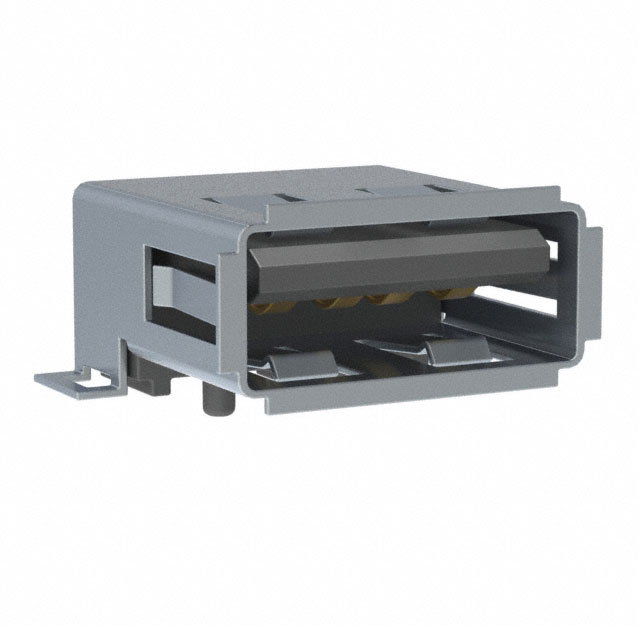

USB-A-S-S-B-SM2

Samtec Inc.In Stock: 1619USB-A-S-S-B-SM2 Datasheet

Parametric EquivalentRFQ

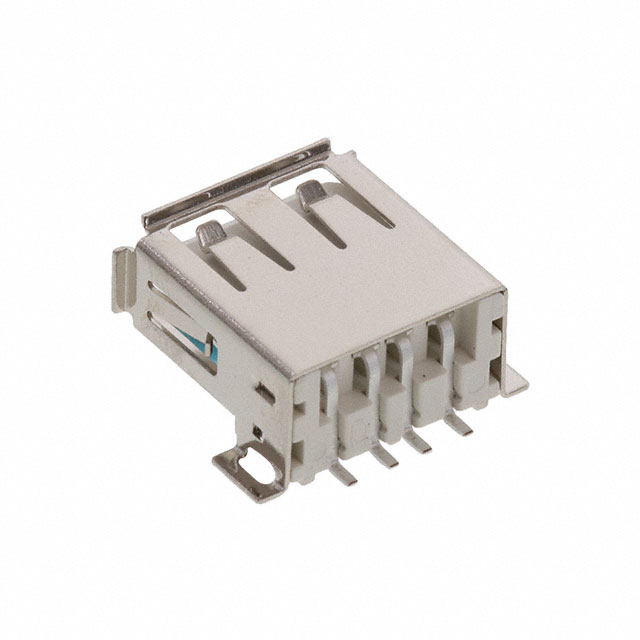

USB-A-S-S-W-SM2

Samtec Inc.In Stock: 1938USB-A-S-S-W-SM2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the USB-A-S-F-B-SM2 are identified based on the following critical parameters that determine functional equivalence:

Electrical Specifications:

• USB 2.0 protocol compliance
• 4-position contact configuration
• 30VAC rated voltage
• 1500 mating cycles

Mechanical Characteristics:

• Connector Type: USB-A (USB TYPE-A)
• Gender: Receptacle
• Mounting Type: Surface Mount, Right Angle; Through Hole
• Mounting Feature: Horizontal
• Termination: Solder

Material & Environmental Compliance:

• Contact Finish: Gold
• Shell/Shielding Material: Copper Alloy
• Material Flammability Rating: UL94 V-0
• Operating Temperature: -50°C ~ 85°C
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• REACH Status: REACH Unaffected

The identified substitutes USB-A-S-S-B-SM2 and USB-A-S-S-W-SM2 share identical electrical and mechanical specifications with the main part. The primary differentiation is insulation color: Black for USB-A-S-S-B-SM2 and White for USB-A-S-S-W-SM2.

Parameter Comparison

Engineering Selection Recommendations

All three parts—USB-A-S-F-B-SM2, USB-A-S-S-B-SM2, and USB-A-S-S-W-SM2—maintain Active product status and are ROHS3 Compliant with REACH Unaffected designation. Each component carries identical electrical specifications, mechanical mounting characteristics, and environmental ratings.

Selection between these parts is determined by insulation color requirements and inventory availability. The USB-A-S-S-B-SM2 and USB-A-S-S-W-SM2 offer higher inventory levels (1593 and 1927 units respectively) compared to the main part number (925 units), providing supply chain advantages when color specification permits substitution.

All parts are classified under ECCN EAR99 and HTSUS 8536.69.4040, ensuring consistent regulatory treatment across substitution scenarios.
