USB-A-D-RA-HT-T/R Equivalent & Substitute Parts

Part Overview

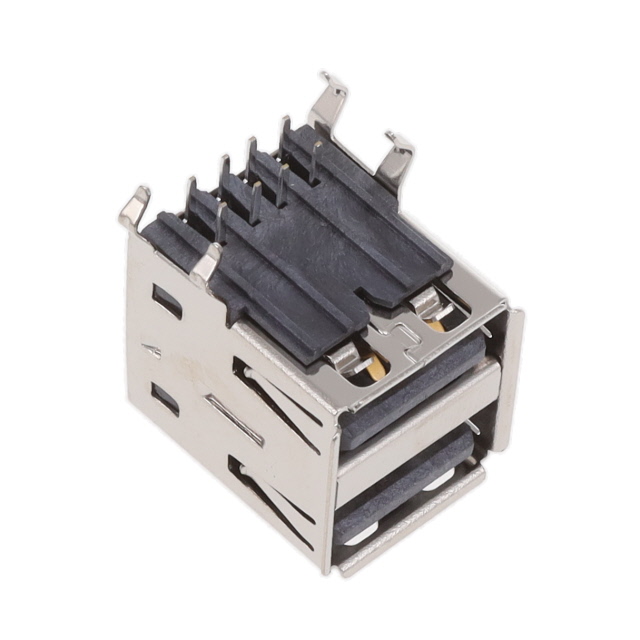

The USB-A-D-RA-HT-T/R is an active, stacked USB Type-A receptacle connector manufactured by Adam Tech. This dual-port, right-angle through-hole connector is designed for applications requiring compact USB connectivity with board-level integration. The connector features 8 positions, gold-plated contacts, and shielding suitable for standard USB 2.0 applications. Finding equivalent and substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and accommodate alternative sourcing strategies while maintaining electrical and mechanical compatibility.

Substiute Parts

USB-A-D-RA-HT-T/R

Adam TechIn Stock: 797USB-A-D-RA-HT-T/R Datasheet

Current PartRFQ

72309-3045RPLF

Amphenol ICC (FCI)In Stock: 158972309-3045RPLF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The 72309-3045RPLF manufactured by Amphenol ICC (FCI) qualifies as a parametric equivalent based on the following critical substitution criteria:

Matching Parameters:

• Connector Type: USB-A (USB TYPE-A), Stacked
• Number of Contacts: 8
• Gender: Receptacle
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Number of Ports: 2
• Shielding: Shielded
• Contact Finish: Gold
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• REACH Status: REACH Unaffected

These parameters define the core electrical and mechanical compatibility required for direct substitution in applications designed for the USB-A-D-RA-HT-T/R connector.

Parameter Comparison

Engineering Selection Recommendations

Both the USB-A-D-RA-HT-T/R and 72309-3045RPLF maintain active product status and comply with RoHS and REACH regulations. The 72309-3045RPLF offers enhanced current rating capability (1.5A per contact versus 1A) and extended operating temperature range (-55°C ~ 85°C versus -20°C ~ 60°C), making it suitable for applications requiring higher thermal or electrical performance margins. Both connectors are UL94 V-0 rated and feature identical mechanical mounting configurations, ensuring direct PCB-level compatibility. Selection between these parts should be based on application-specific current and temperature requirements within the specified operating ranges.

Frequently Asked Questions (FAQ)

Q: Can the 72309-3045RPLF directly replace the USB-A-D-RA-HT-T/R on existing PCBs?

A: Yes. Both connectors share identical mounting type (through hole, right angle), mounting feature (horizontal), number of ports (2), and contact configuration (8 positions). PCB footprints and board-level integration are compatible.

Q: What are the key differences between these two connectors?

A: The 72309-3045RPLF provides higher current rating per contact (1.5A versus 1A) and operates across a wider temperature range (-55°C ~ 85°C versus -20°C ~ 60°C). The 72309-3045RPLF also specifies 1500 mating cycles, whereas the USB-A-D-RA-HT-T/R does not provide this specification.

Q: Are there packaging differences between these parts?

A: Yes. The USB-A-D-RA-HT-T/R is supplied in Tape & Reel (TR) packaging, while the 72309-3045RPLF is supplied in Cut Tape (CT) packaging. Packaging format does not affect electrical or mechanical compatibility.

Q: Do both connectors meet the same compliance standards?

A: Both connectors are RoHS compliant, REACH unaffected, and rated UL94 V-0 for material flammability. Both feature MSL 1 (unlimited moisture sensitivity level), indicating no moisture sensitivity constraints.

Q: Which connector should be selected for high-temperature applications?

A: The 72309-3045RPLF is rated for -55°C ~ 85°C operation, providing a wider thermal envelope suitable for extended temperature range applications. The USB-A-D-RA-HT-T/R operates within -20°C ~ 60°C.
